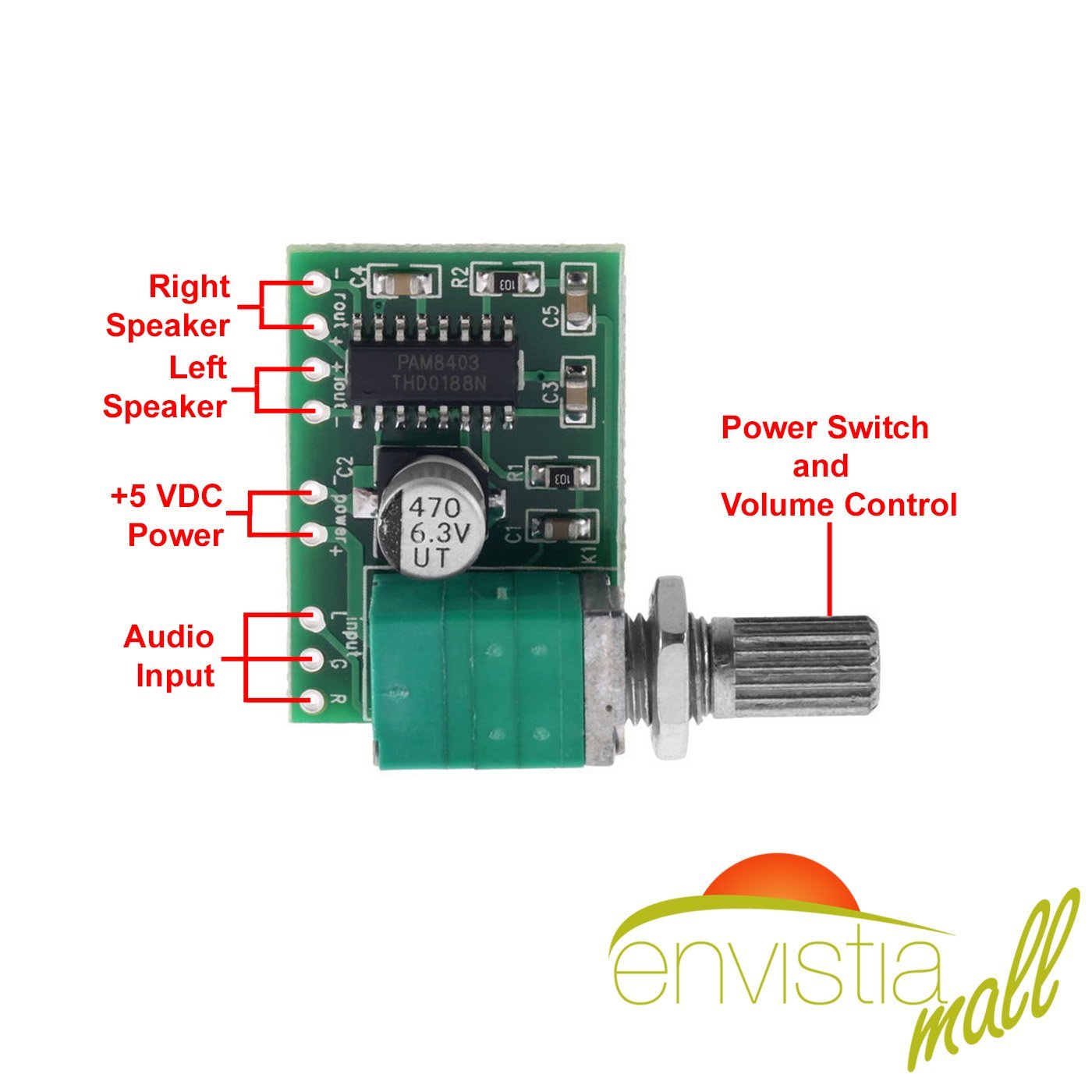

PAM8403 Mini 2 Channel 3W Stereo Audio Power Amplifier Board with Volume Control & Switch

  • $1.79


This miniature PAM8403 3W Class D audio amplifier module offers low THD+N, allowing it to achieve high-quality sound reproduction, all in a form factor about the size of a US postage stamp.

It can operate from a 5V USB power supply or batteries, and includes a power switch and volume control potentiometer for ease of use.

It can be used in any DIY design requiring a miniature audio amplifier, especially portable and mobile applications operating on battery power.

Features:

  • Can use the computer USB port, USB power bank or a mobile phone charger to supply the 5V support power
  • Battery power can also be used
  • High efficiency: 90%
  • Provides 3W (left channel) + 3W (right channel) output power into a 4Ω speaker load and 5V power supply
  • CMOS class D amplifier design for high efficiency and low cost
  • Noise canceling circuit built into the amplifier board
  • Power on / off without popping noise
  • Integrated power switch and volume control (turn knob fully counter-clockwise to turn off)
  • Module has short-circuit current protection, under-voltage lockout and over-temperature protection (shuts down at an internal temperature of 140C +/- 15C)

Specifications:

  • Operating voltage: 2.5V-5.5V
  • Speaker Load: 4-8 Ohms
  • Size: 29 x 20 x 12.5 mm (L x W x H); 29 x 35 x 12.5 including volume control knob
  • Net weight:8g

Package Contents:

  • 1 x PAM8403 Class D Stereo Audio Power Amplifier Module with Volume Control
  • Specifications and usage instructions

Get it faster! We ship in 1 business day from our US facility in Colorado for quick delivery.

Note: Left and right channel "negative" connections should not be connected together, otherwise it may damage the module. Speakers (load) should be connected before power is applied to the module.
