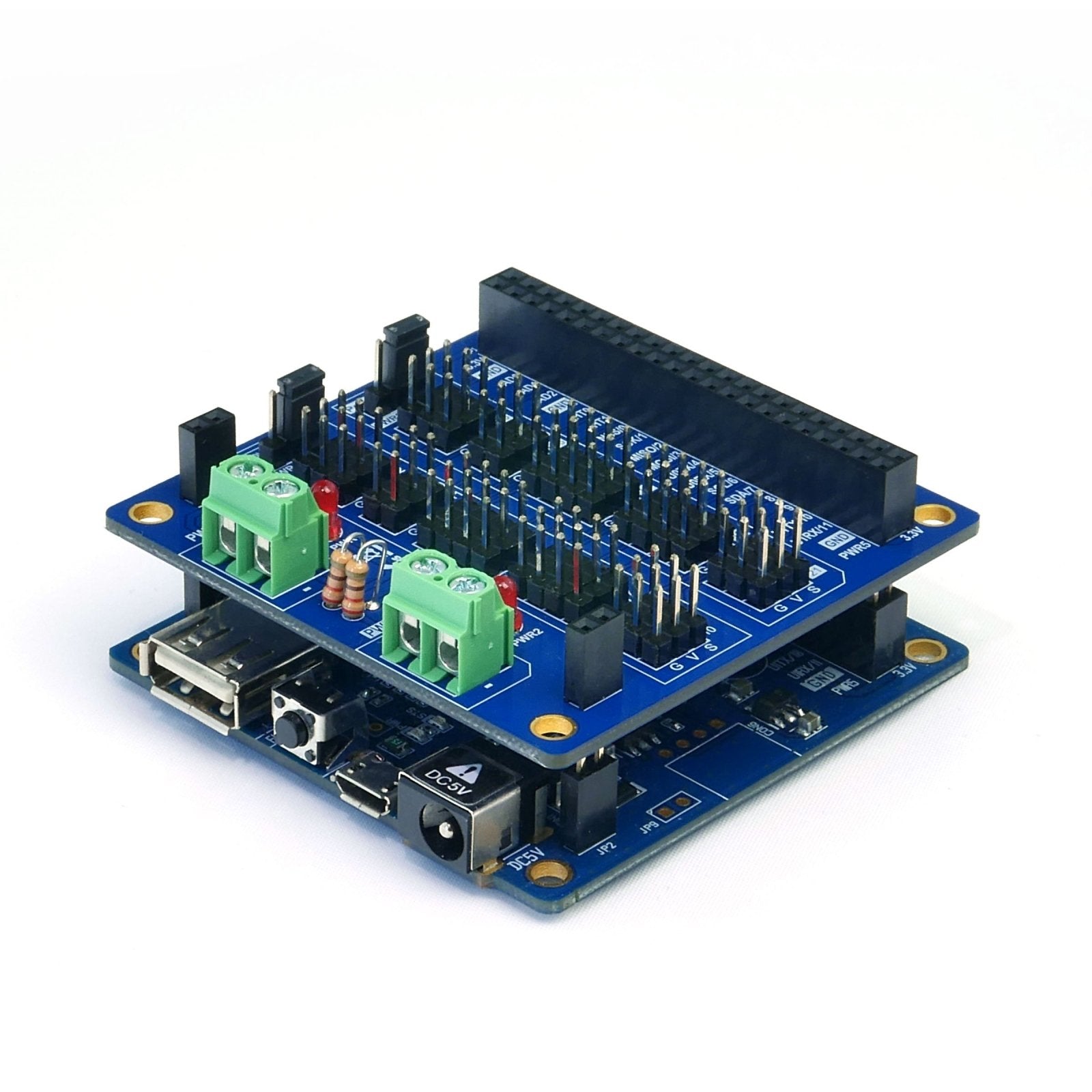

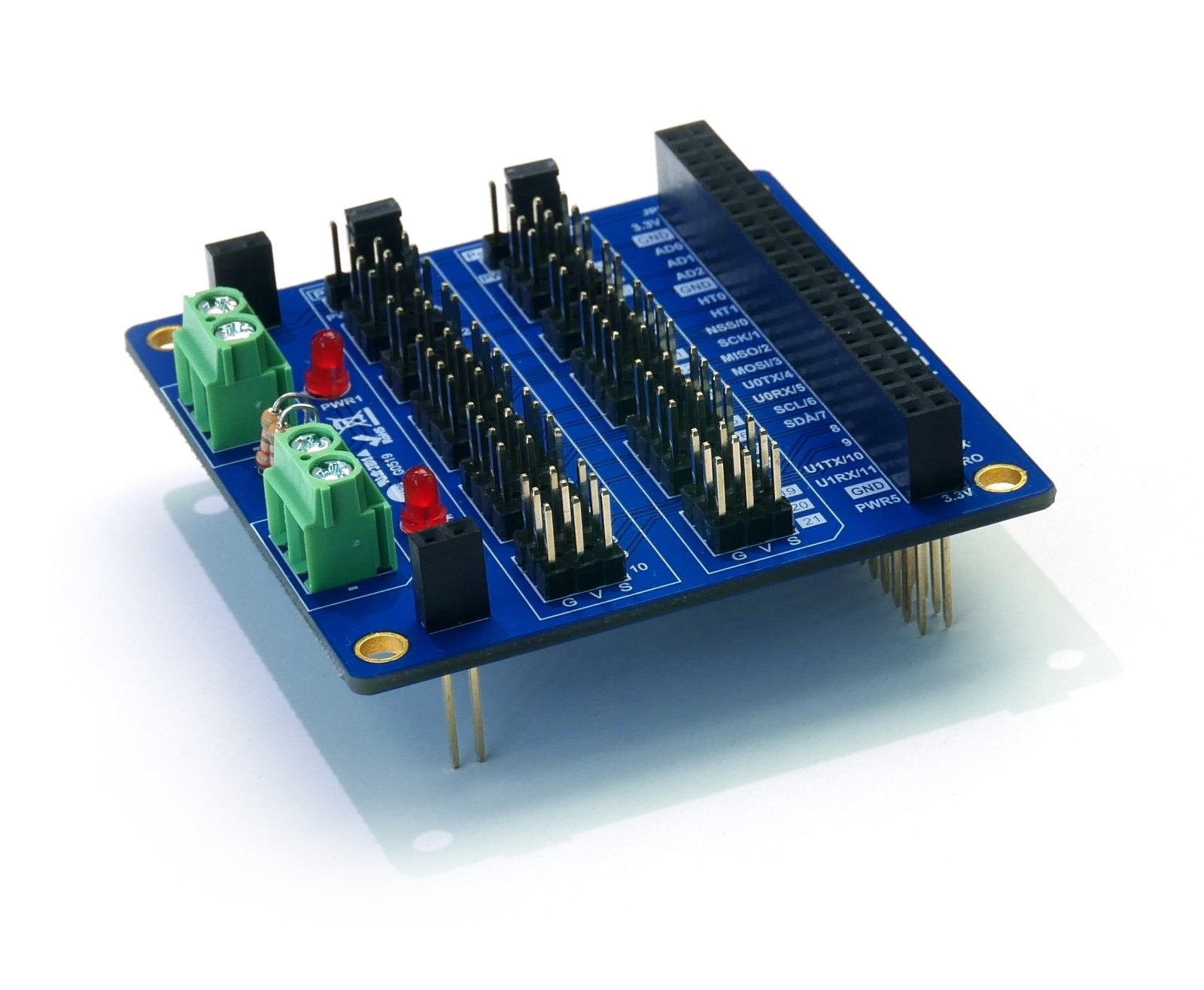

PHPoC PWM and Sensor Expansion Board PES-2003

These PHPoC Expansion boards communicate with PHPoC Blue and Black IoT Development Boards through a smart expansion port to easily add I/O, device control and detecting and monitoring capabilities to your PHPoC IoT system.

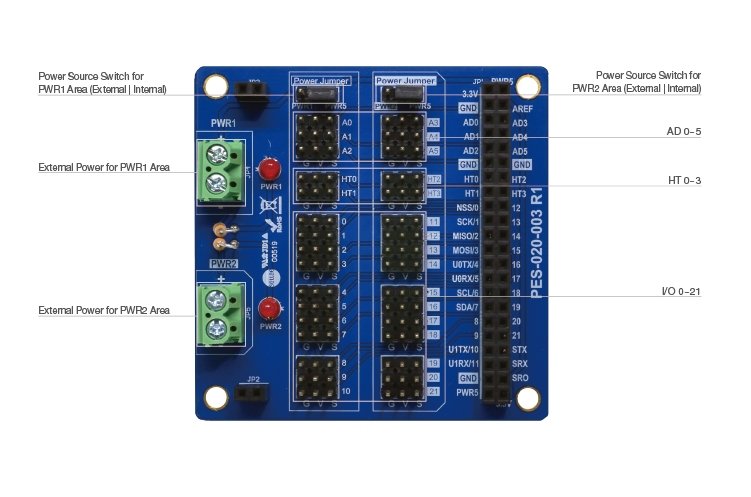

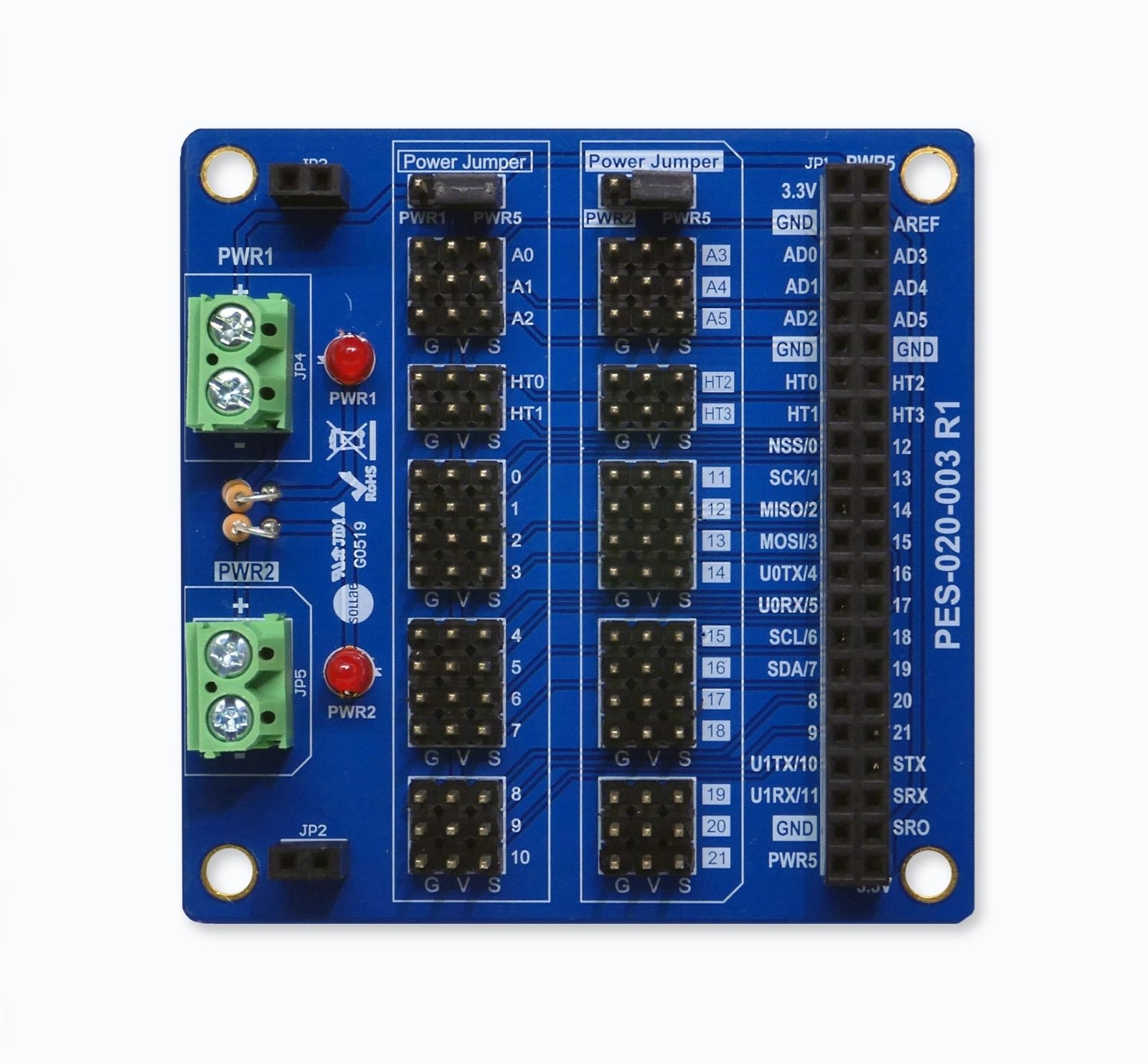

The PWM and Sensor Expansion Board provides 3-pin interfaces, allowing easy connection of motors, sensors or I/O devices to PHPoC Blue or Black IoT Development Boards. This board gives the option to switch to external power sources in applications that require a lot of power such as multiple high-weight servo motors.

Features:

• 4 hardware timer interfaces
• 6 ADC interfaces
• 21 I/O interfaces
• Two optional terminal blocks for external power (max. input of 10V)

Package Includes:

Resources:

Videos:

PHPoC PWM and Sensor Expansion Board Introduction
