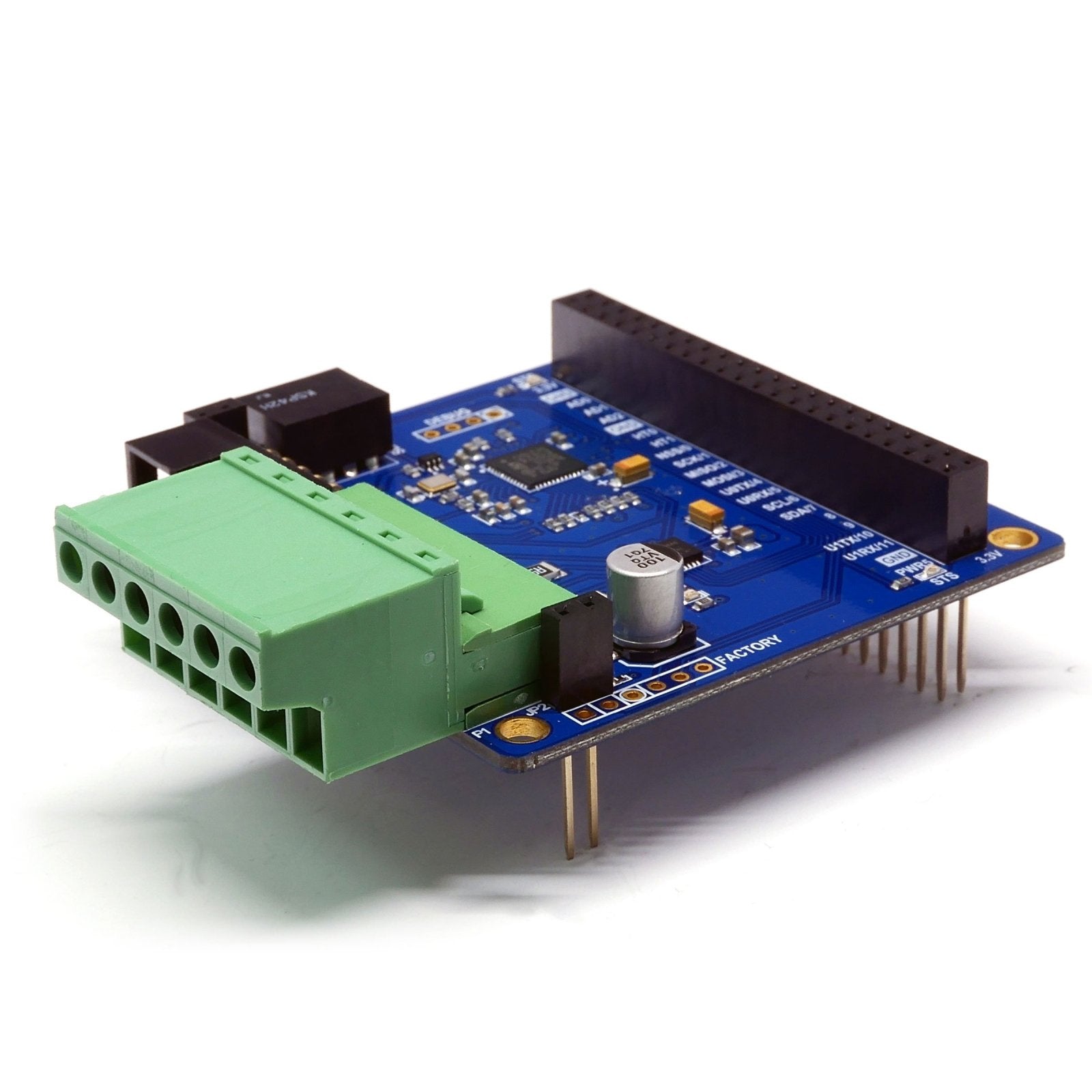

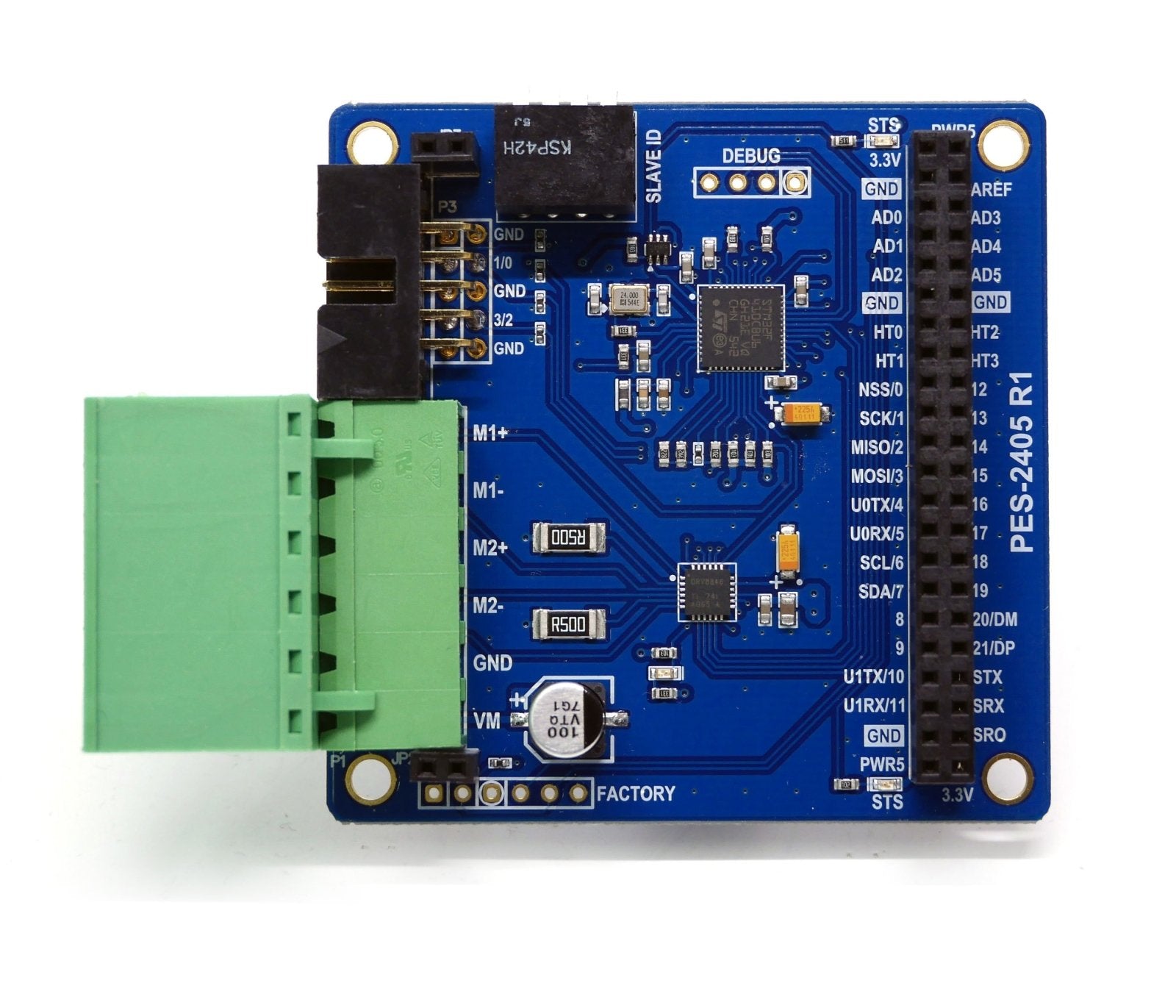

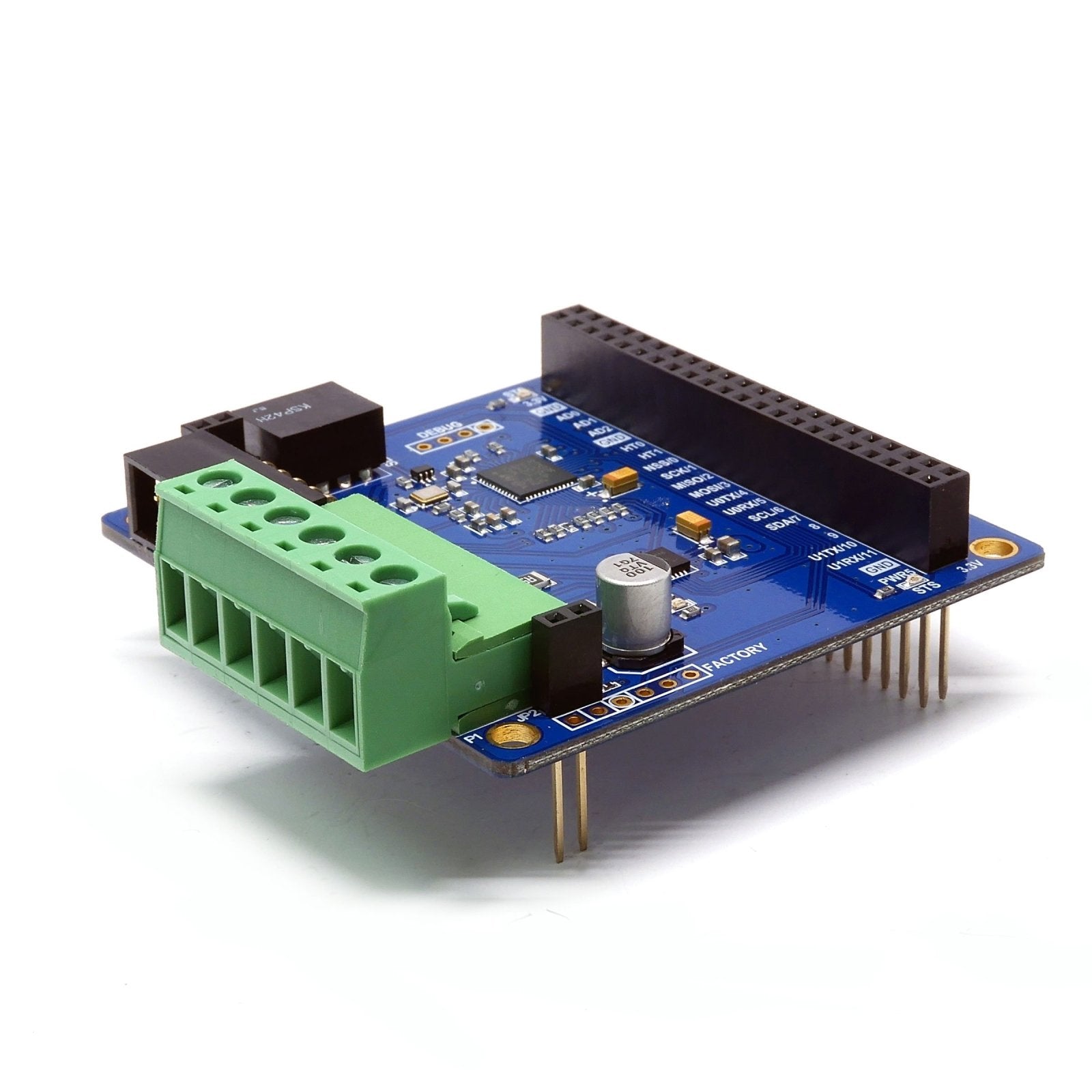

PHPoC Stepper Motor Controller Expansion Board II PES-2405N

PHPoC Stepper Motor Controller Expansion Board II PES-2405N

Regular price $51.00
Regular price Sale price $51.00
Sale Sold out
Connector Type

These PHPoC Expansion boards communicate with PHPoC Blue and Black IoT Development Boards through a smart expansion port to easily add I/O, device control and detecting and monitoring capabilities to your PHPoC IoT system.

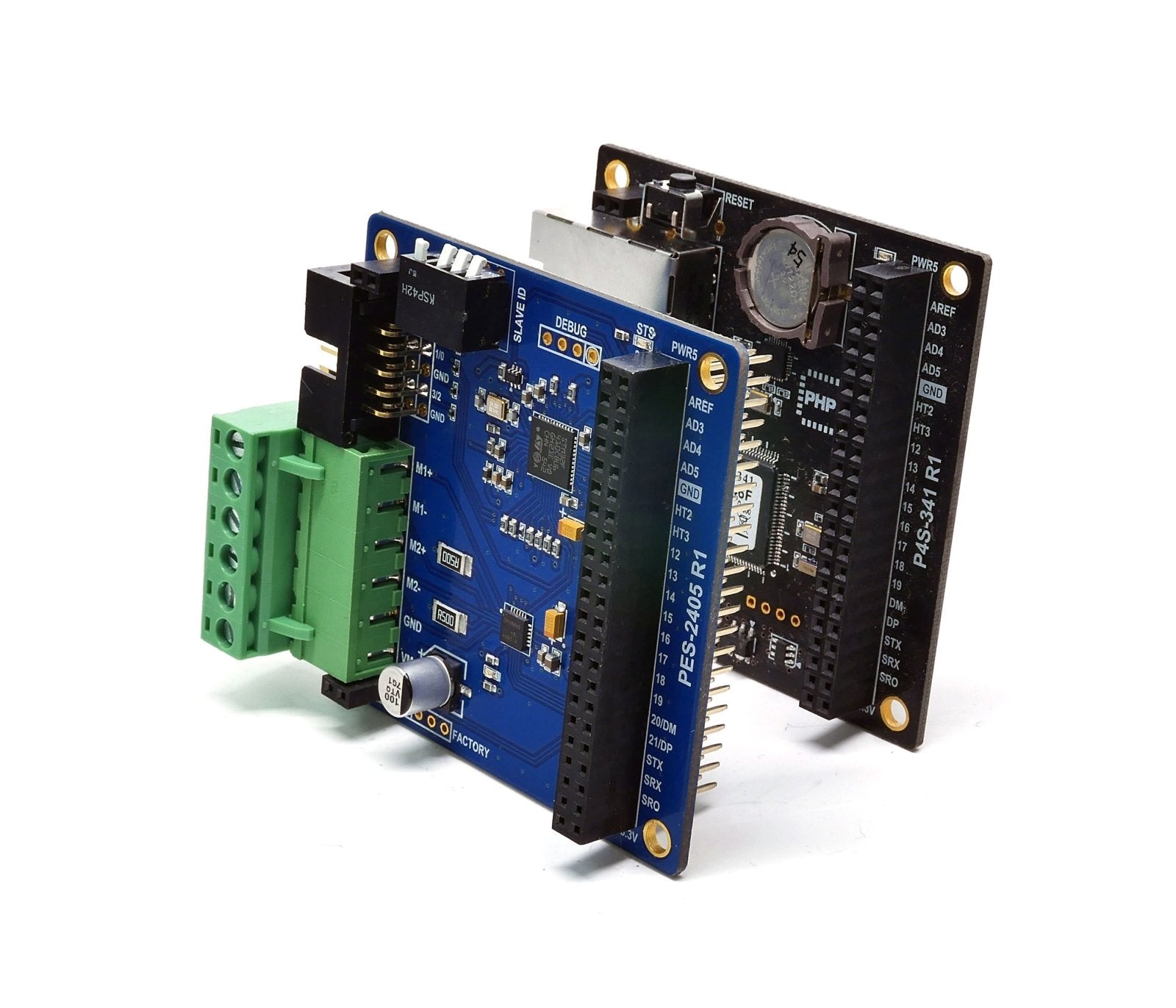

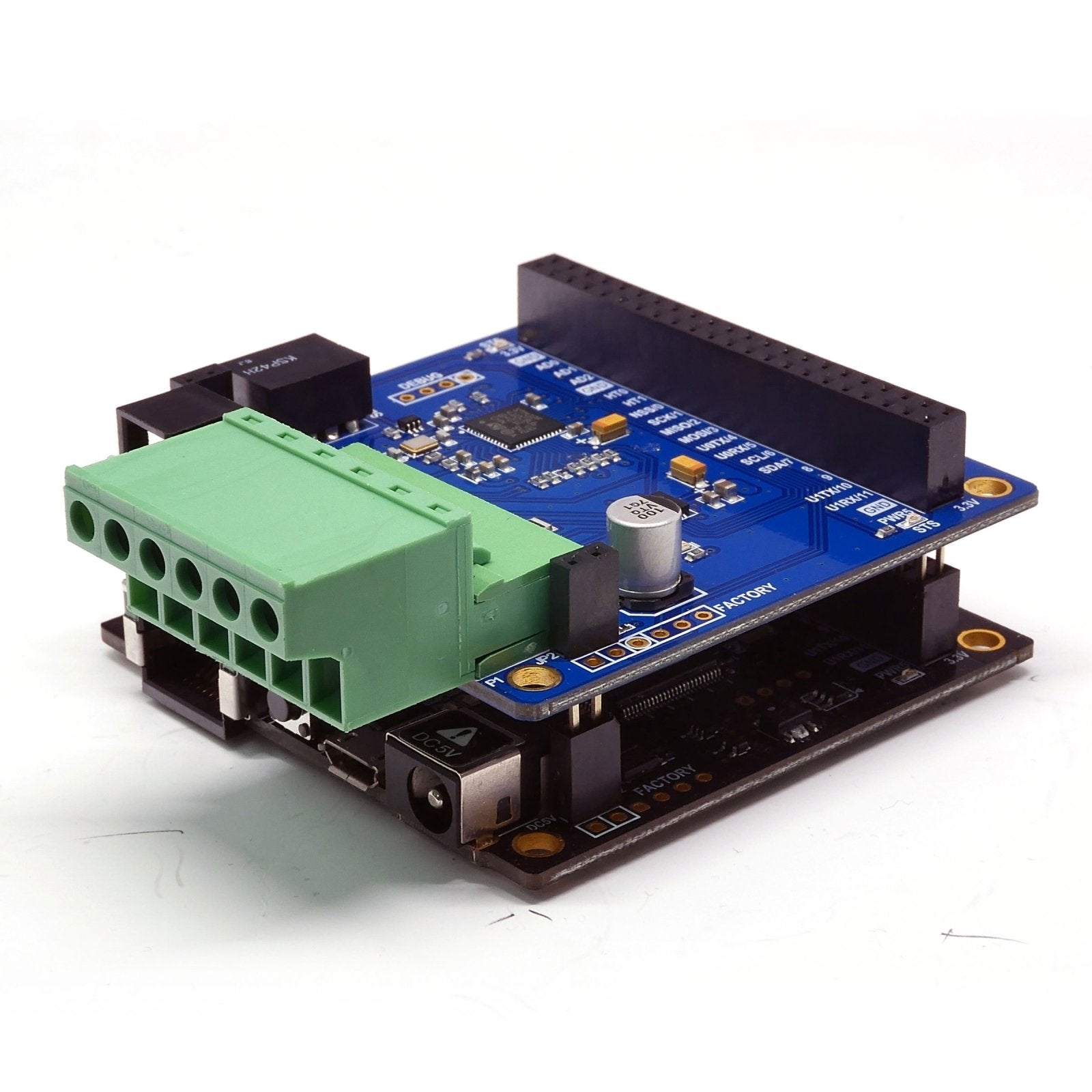

The PES-2405 stepper motor controller Ⅱ  is a smart expansion board for PHPoC Blue and Black IoY development boards. With this controller and a PHPoC Blue or Black development board, you can accurately control various stepper motors with microstepping up to 1/32.

PES-2405 II PHPoC Stepper Motor Controller Features:

  • Bi-polar stepper motor controller
  • Driving modes: micro step (maximum division rate: 1/32)
  • Motor voltage: 4 ~ 18V [DC]
  • Motor current: maximum 1A on each coil

※ NOTE: The PES-2405 requires a PHPoC Blue or Black IoT development board with firmware version 1.3.0 or higher.

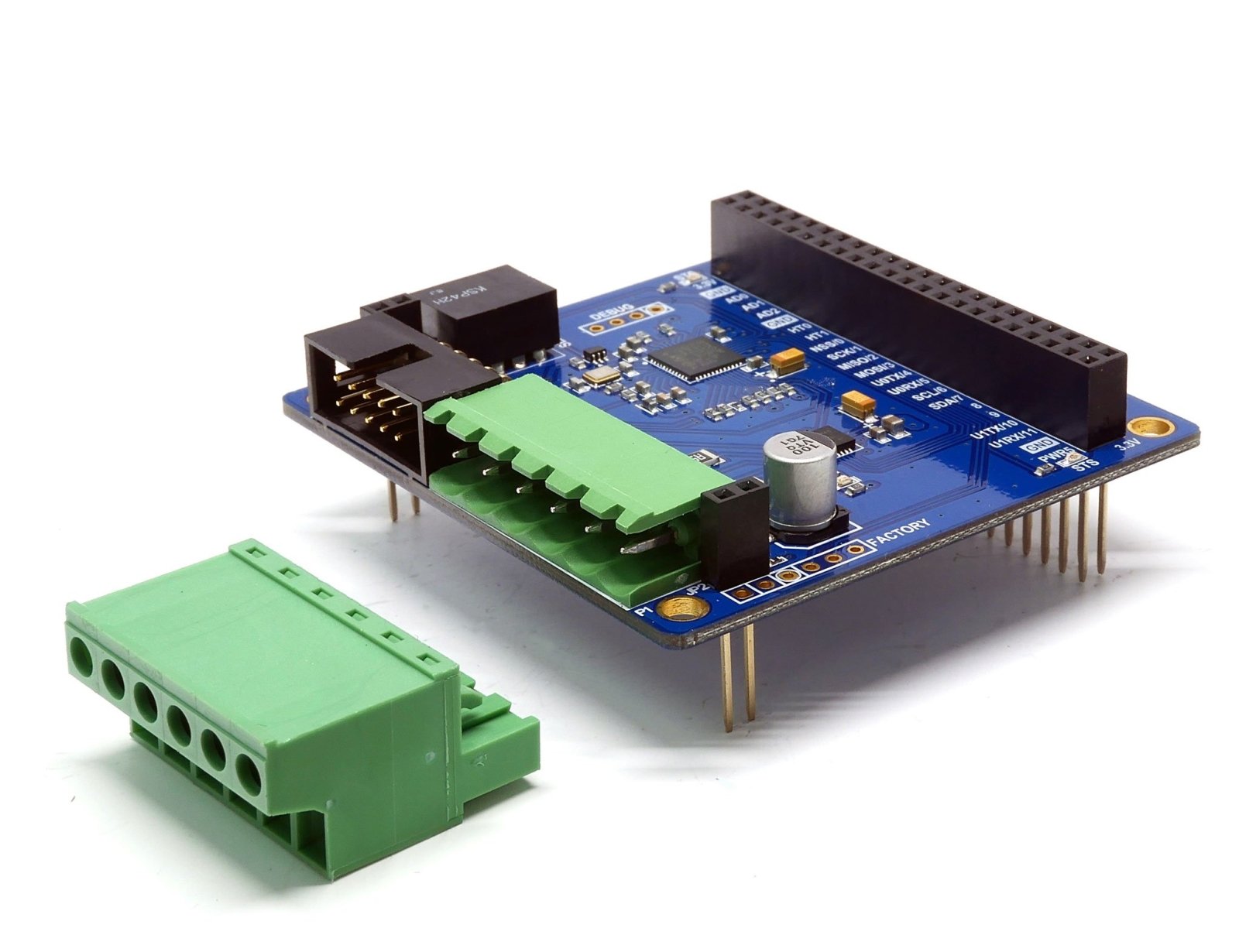

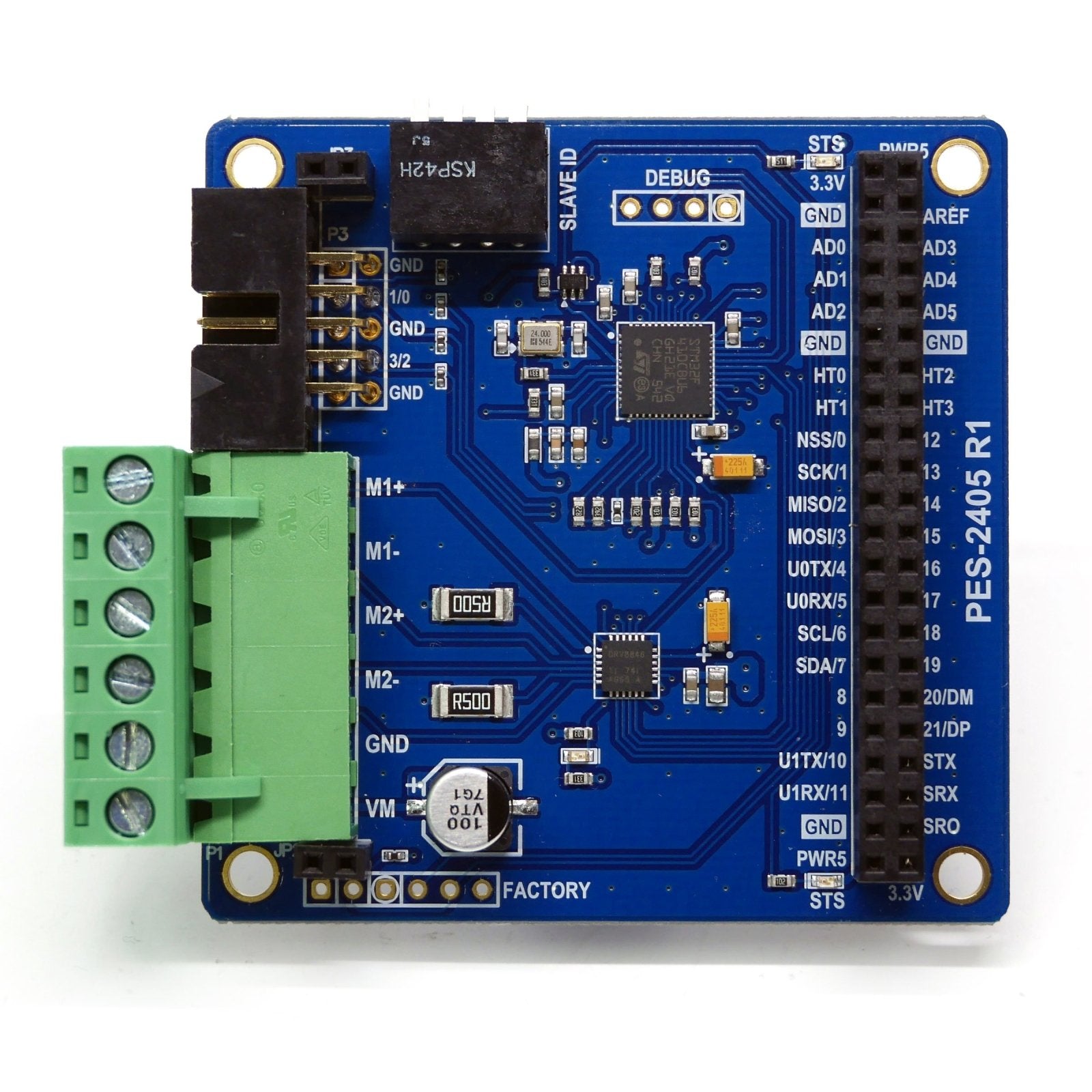

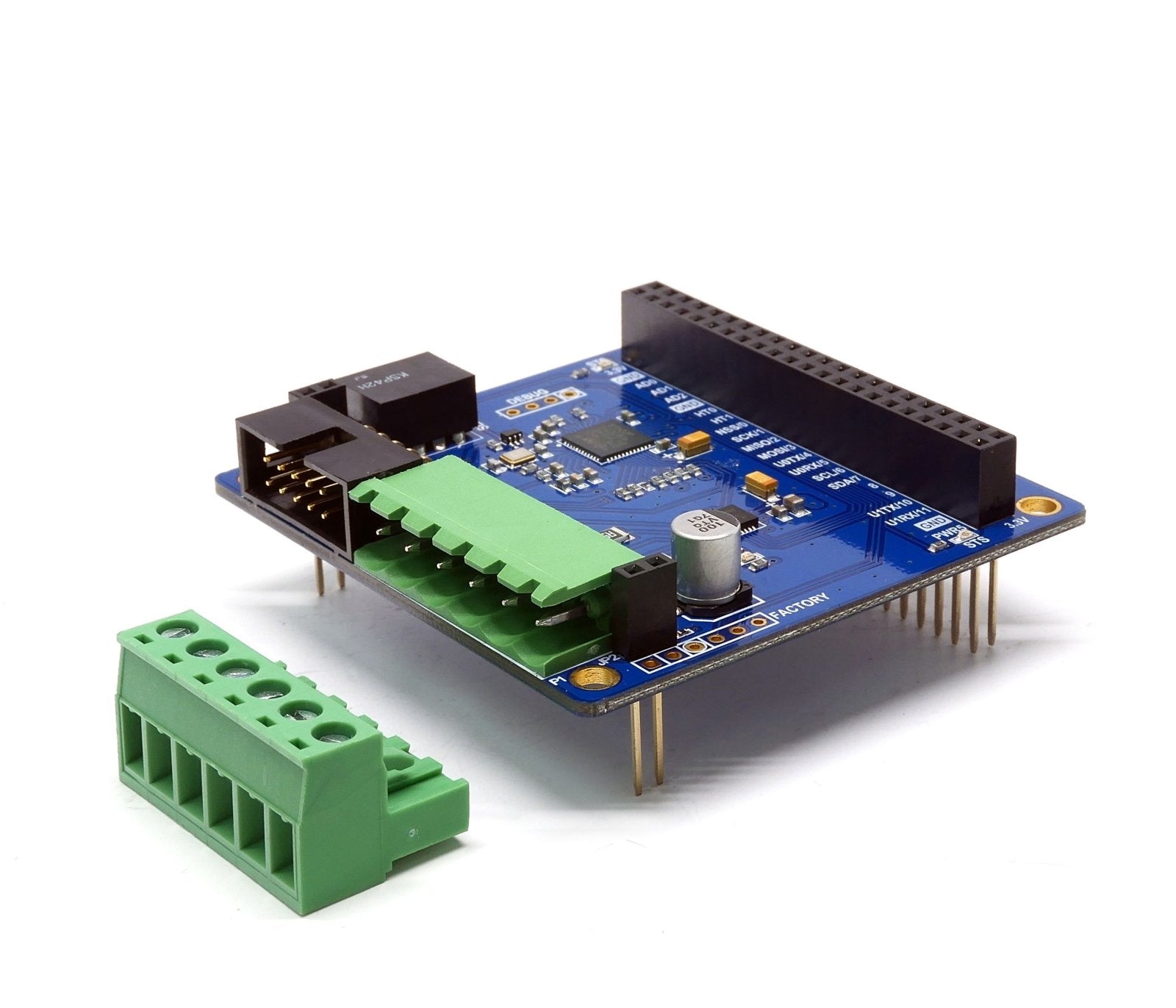

Two different types of terminal blocks are available on the PES-2405 Expansion Board, based on the direction of the terminal screws. S-type terminal blocks can be screwed from the side, convenient when the boards are stacked. T-type is screwed from the top of the board. The wire termination blocks are on the side of the board in both models.

Package Includes:

1x PES-2405 PHPoC Stepper Motor Controller Expansion Board II (S or T type connector specified with order)


Delivery is stock to 2 weeks, if the item is out of stock, please contact us for availability.

Resources:

PES-2405 Stepper Motor Controller User Manual

Drawing via the Web using stepper motor controller Ⅱ and PHPoC

PHPoC Smart Expansion Boards Web Page



Videos:

Cocktail machine with Alexa and PHPoC
