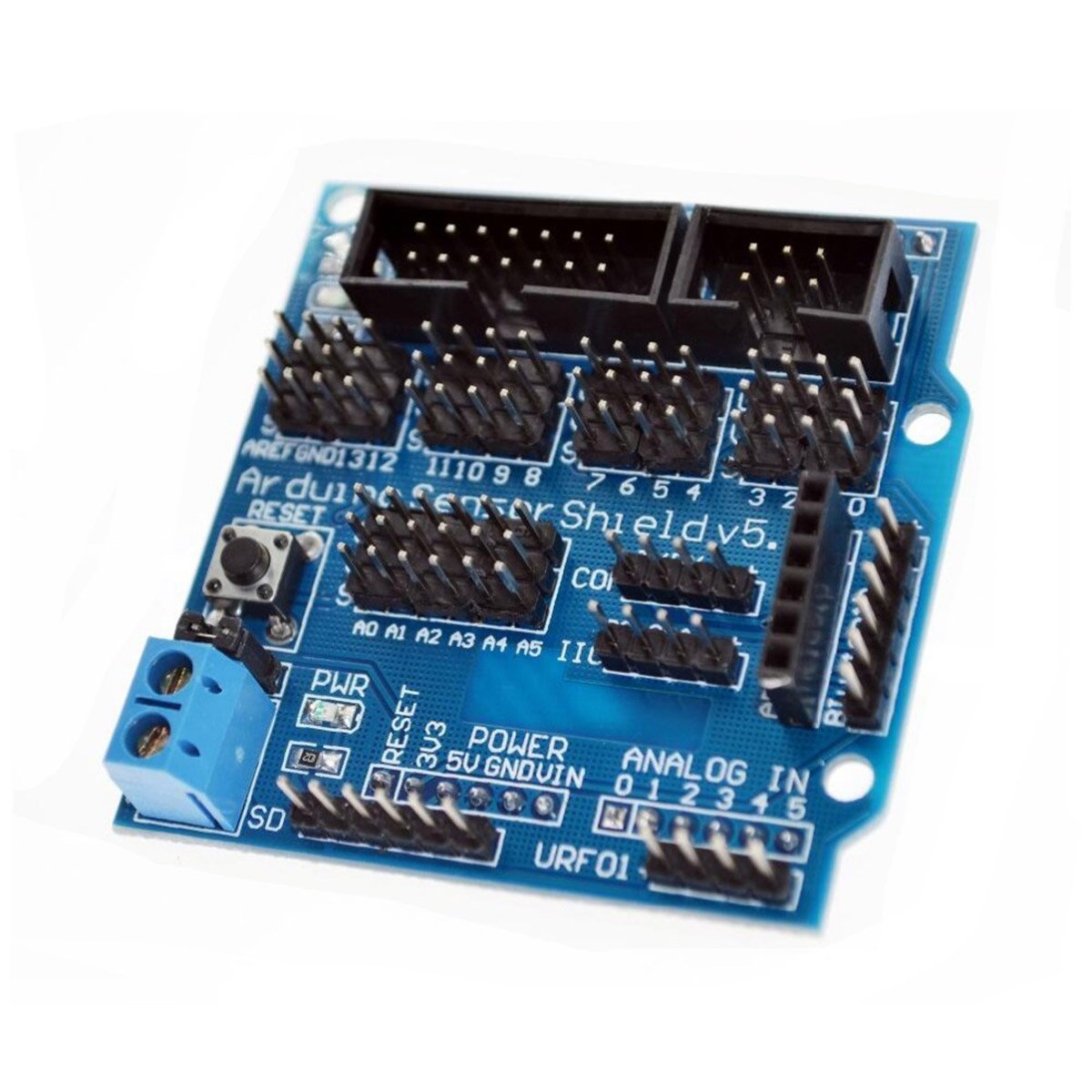

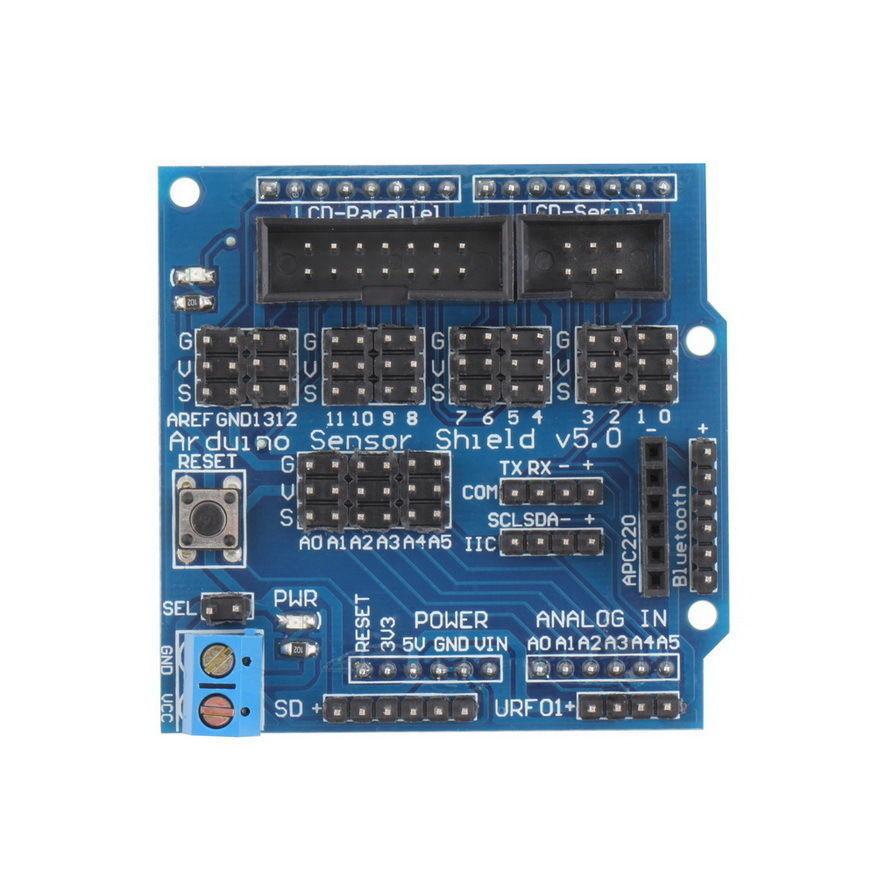

Sensor Shield V5 Digital Analog Expansion Module for Arduino UNO R3 MEGA2560

  • $2.89

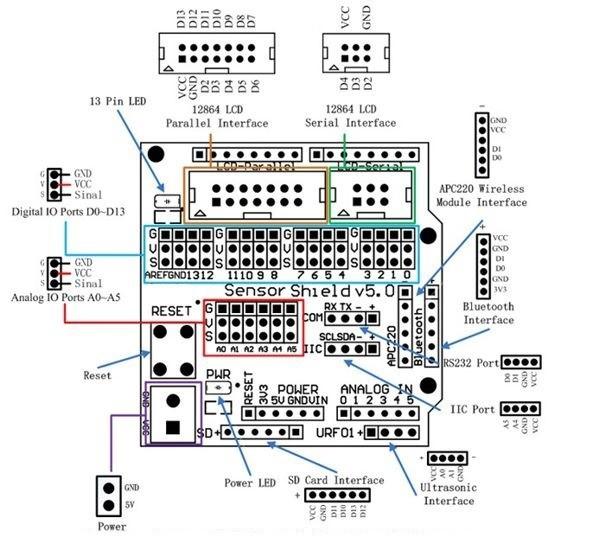

The Sensor Shield V5 for Arduino allows you to connect to various modules like sensors, servos, relays, buttons, potentiometers and so on. Just plug and play. The Sensor Shield module connects the Arduino microcontroller's VCC, GND, COM, I2C, Reset, and other Inputs and Outputs, to corresponding connectorized ports on the Sensor Shield.

Connected with standard 2.54mm cables, it provides a quick and secure interconnect between the Arduino microcontroller board and your other devices. The Sensor Shield makes the connections easier, more secure and more professional than connecting directly to the Arduino microcontroller.

  • Analog Ports: 6 Analog inputs with VCC/GND
  • Digital IO: 13 ports that can be connected to digital modules or servos
  • Analog IO: 2.54mm grid male pin header connections
  • Communication Ports: Selectable between I2C and UART

Package Includes:

1X Sensor Shield V5 Digital Analog Expansion Module for Arduino
