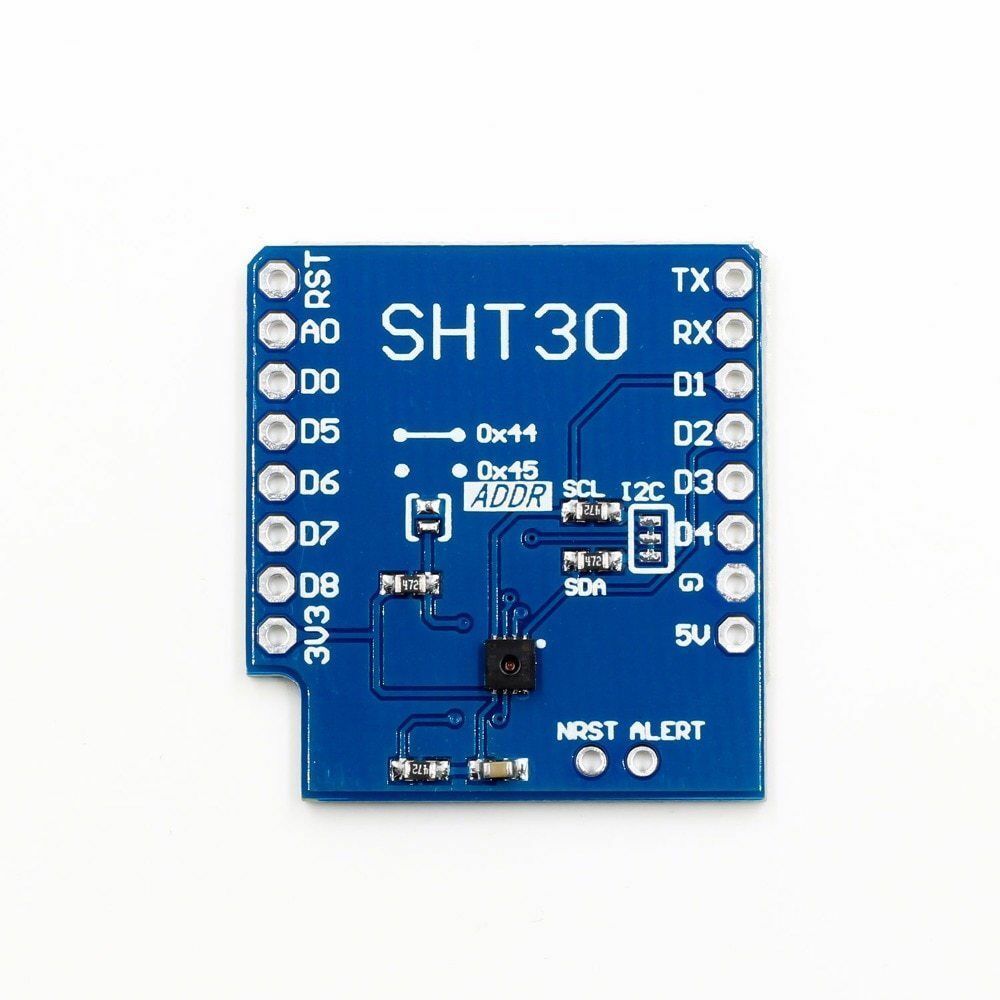

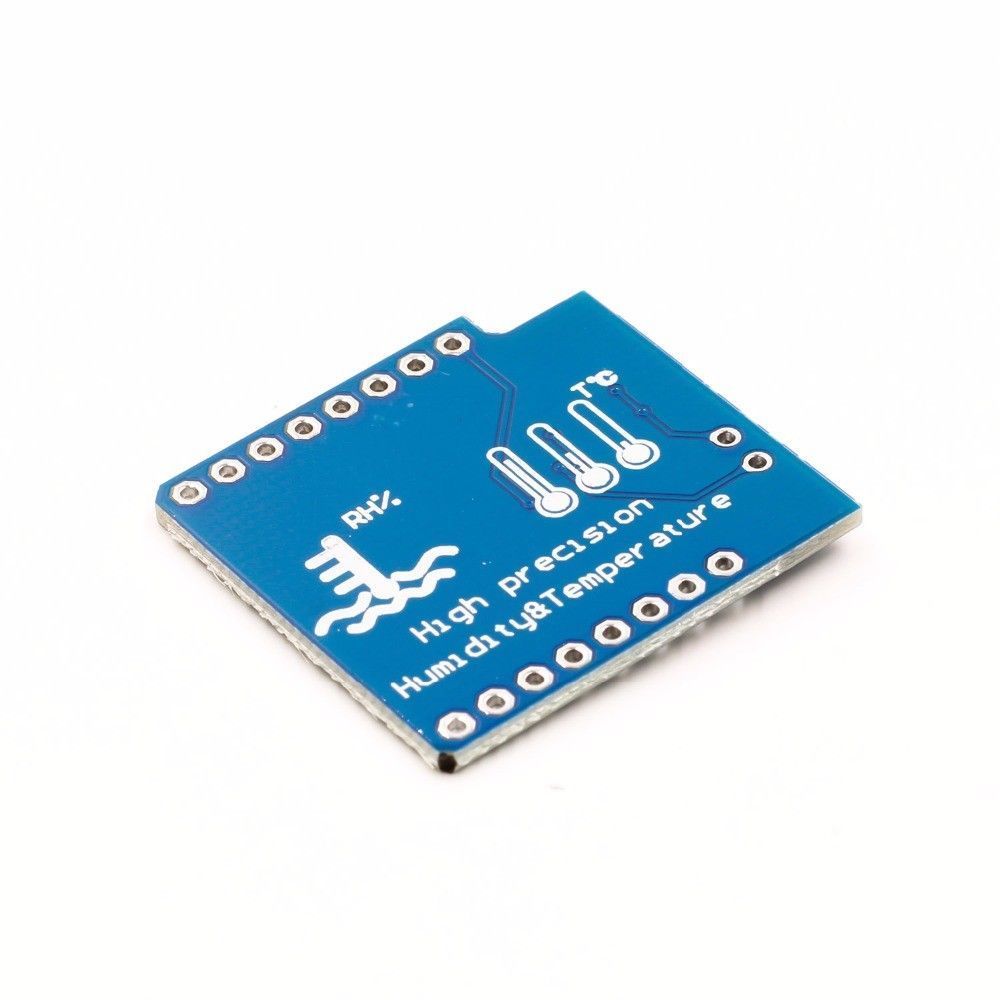

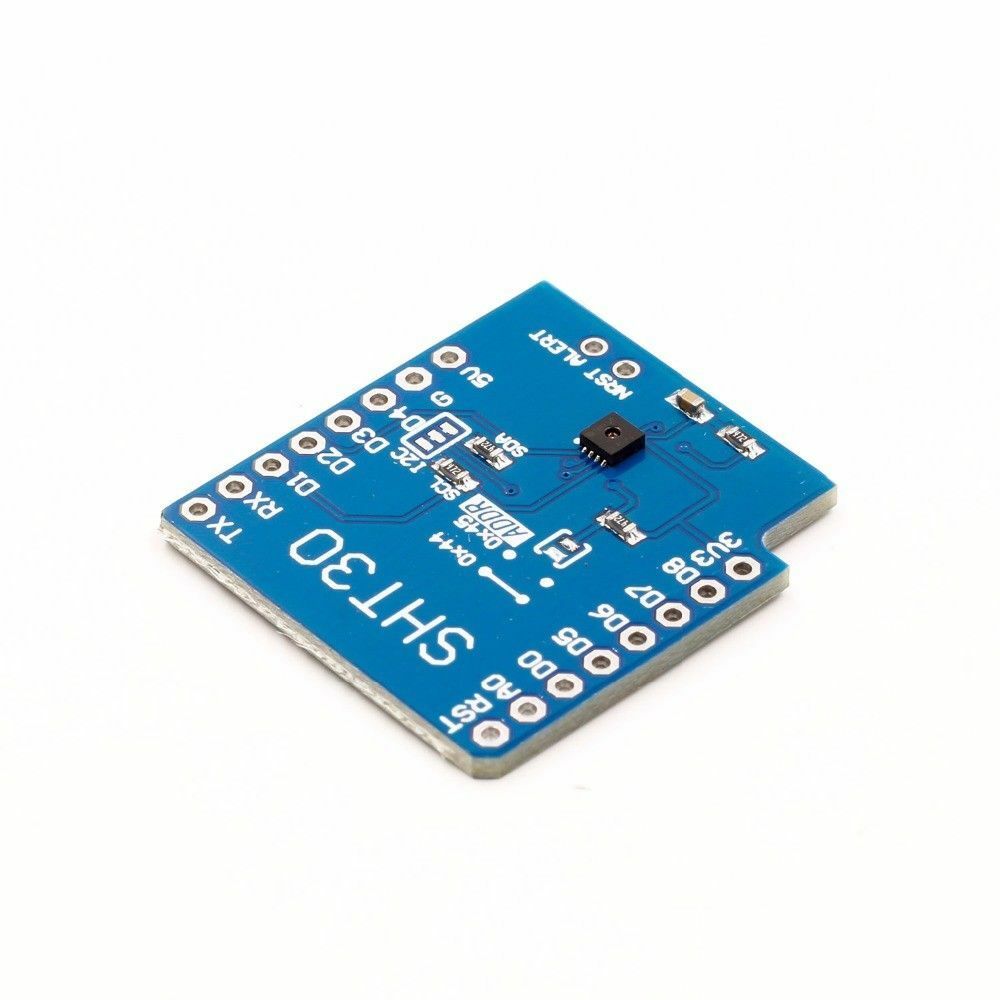

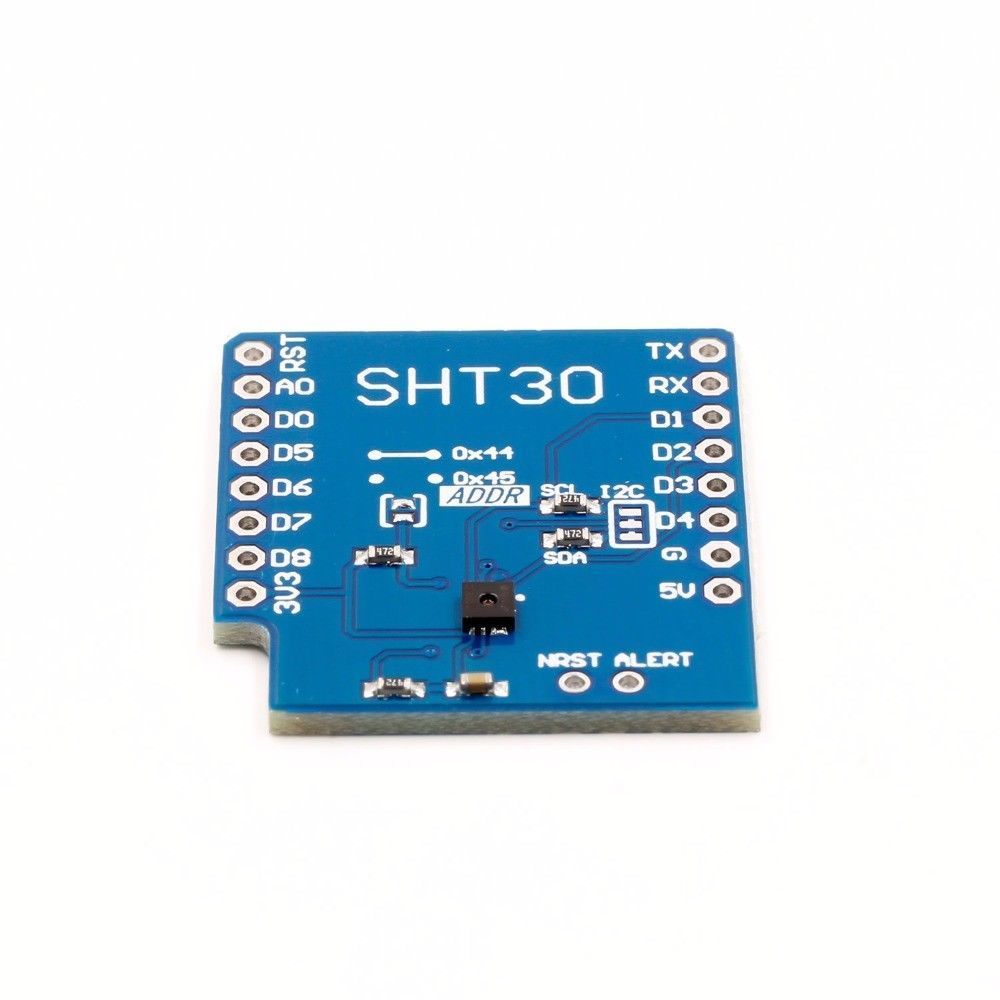

SHT30 Temperature and Humidity Measurement I2C Shield For WeMos D1 Mini

  • Sale
  • Regular price $6.59

This SHT30 temperature and humidity measurement shield uses the Sensirion SHT30 miniature sensor. In addition to its very small size which makes it possible to obtain an ultra-flat shield, the SHT30 communicates with the D1 Mini on the I2C bus. This is a big advantage for the ESP8266, which has fewer pins than the Arduino microcontrollers.


  • Sensor: Sensirion SHT30
  • Temperature Range: -40 to 125 C
  • Temperature Accuracy: 0.3 C
  • Relative Humidity Range: 0 to 100% RH
  • Relative Humidity Accuracy: 3% RH

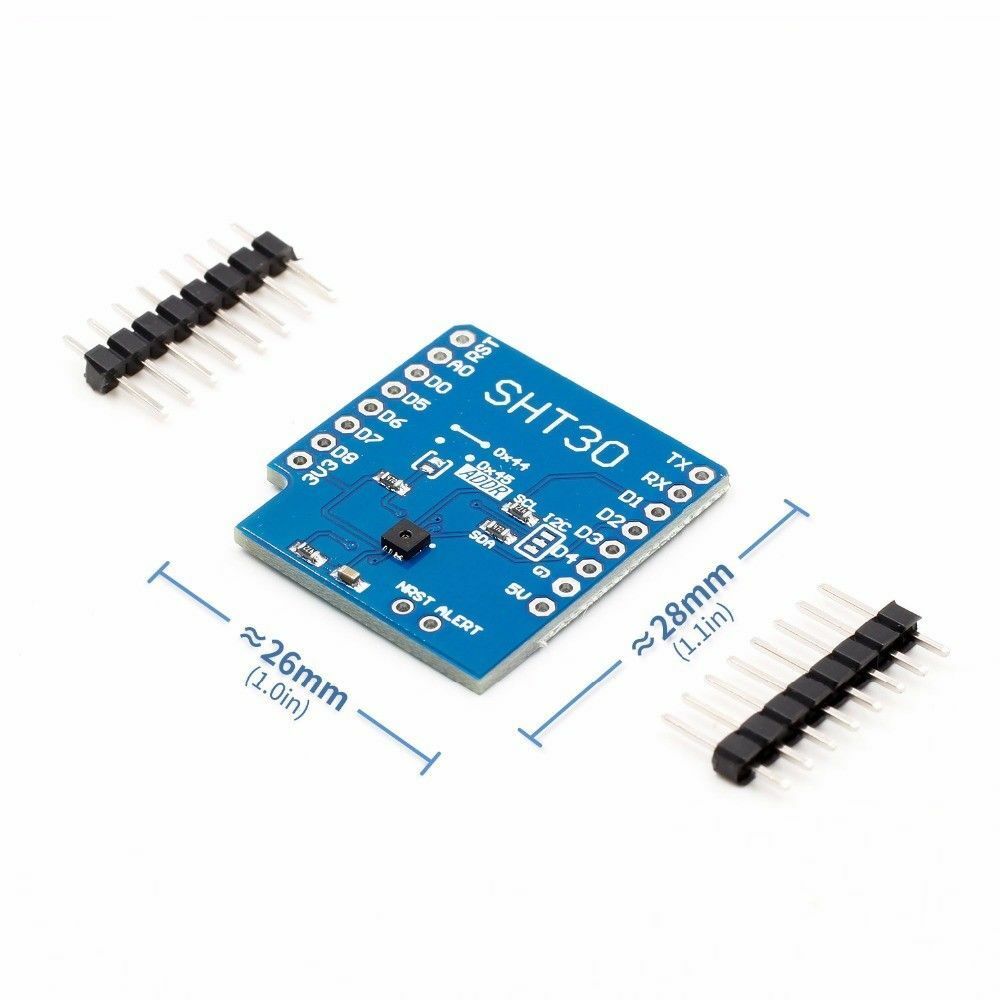

  • Size: 28mm x 26mm x 2mm L x W x H (Excluding connectors)

Connectors, Jumpers and Indicators:

  • Pin D1: SCL
  • Pin D2: SDA
  • ADDR Jumper:
    • Jumpered: Address 0x44
    • Open: Address 0x45

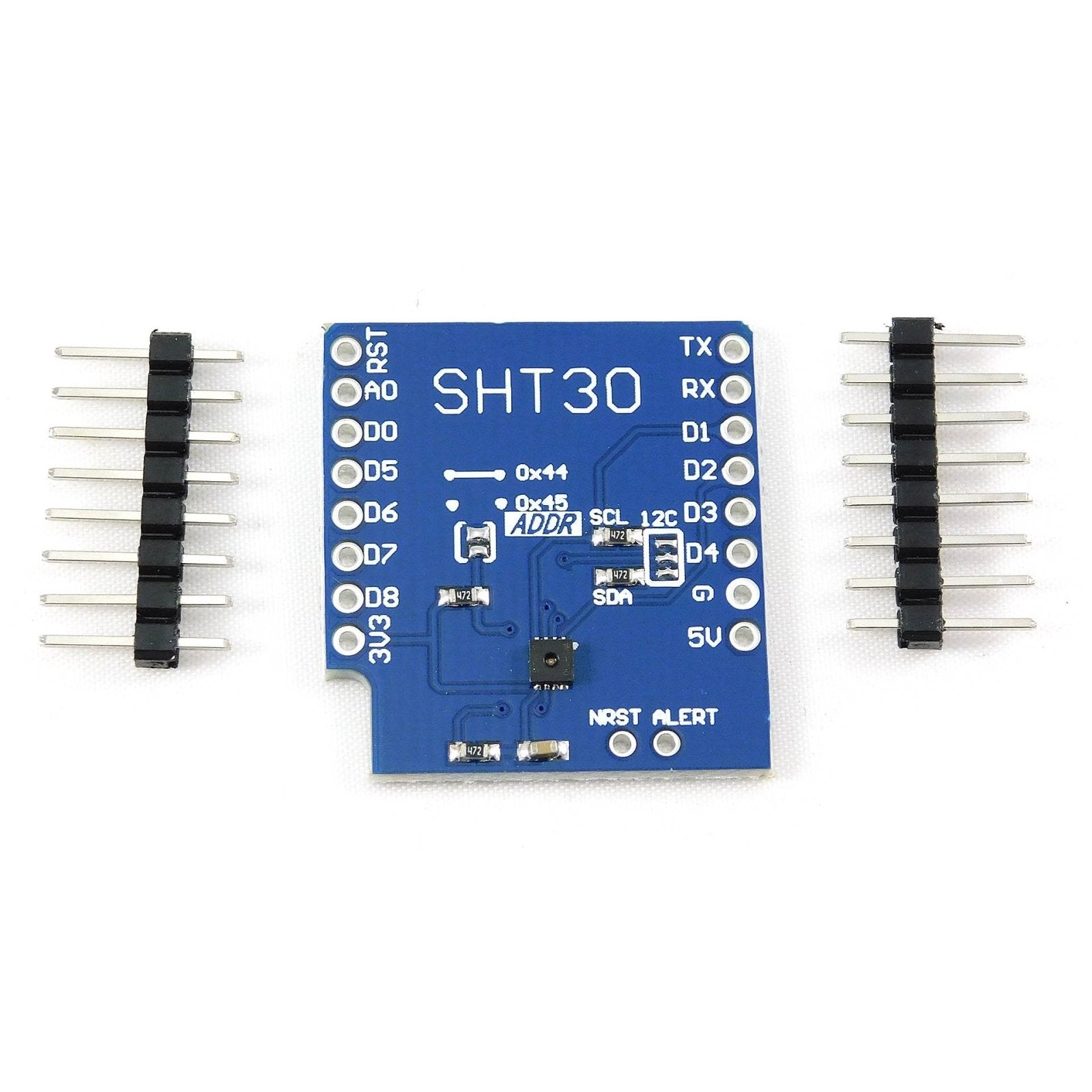

Package Includes:

  • 1x SHT30 Temperature and Humidity Shield for Wemos D1 Mini
  • 2x 8P 2.54mm pins
