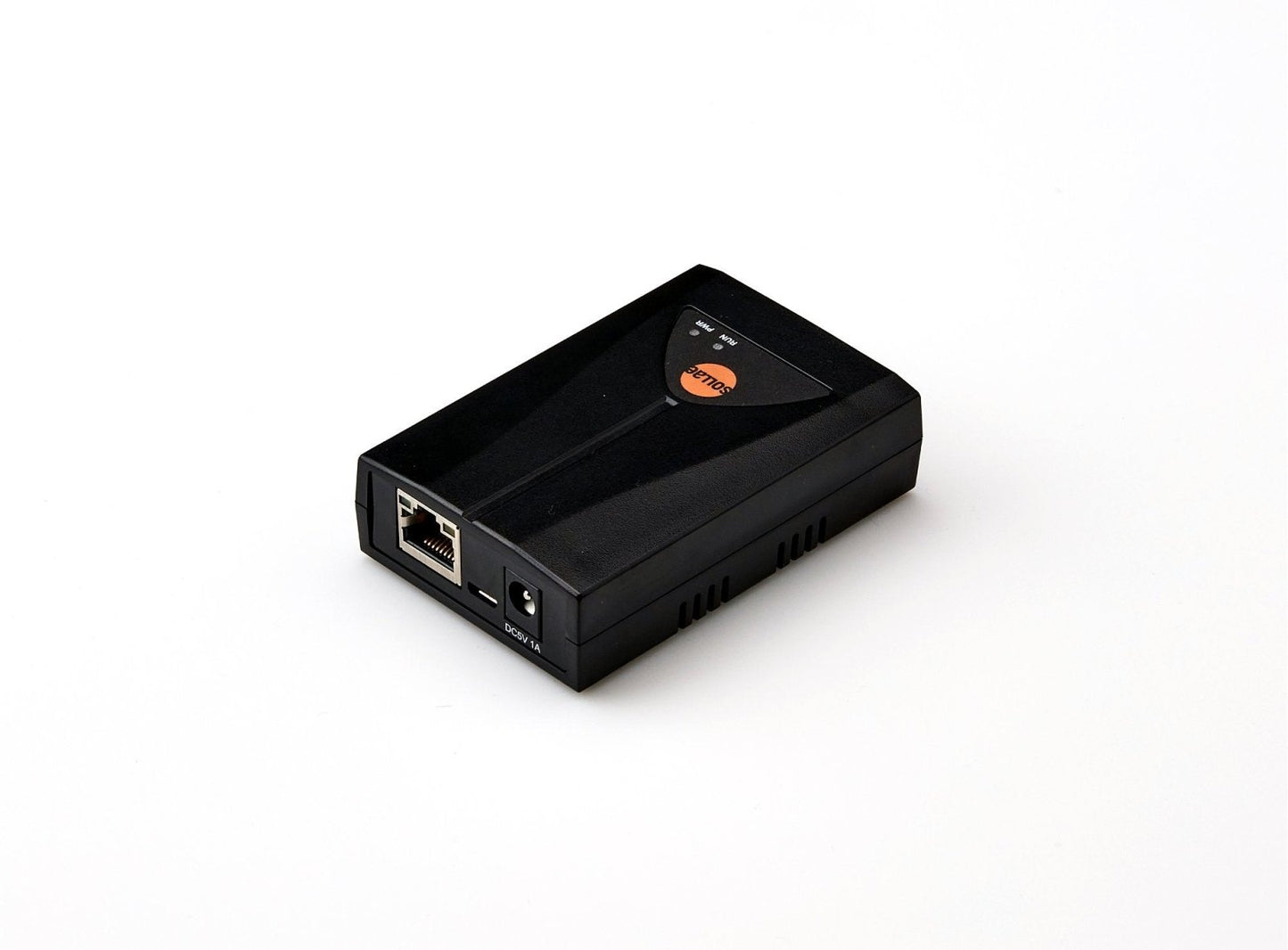

SIG-5560 ezTCP Modbus TCP Temperature Gateway

The ezTCP SIG-5560 by Sollae Systems is a temperature gateway that reads the temperature value from a PT100 resistance temperature detector and sends it to an ethernet network using the Modbus TCP protocol. Users can remotely read the temperature by using any Modbus Software/Apps or HMI device.

Users can config thresholds to make it trigger another Modbus TCP device that has digital output ports. This is called an Internet Switch.

We provide a free software and a smartphone app, called ModMap, which can connect to devices to read the temperature.

Features:

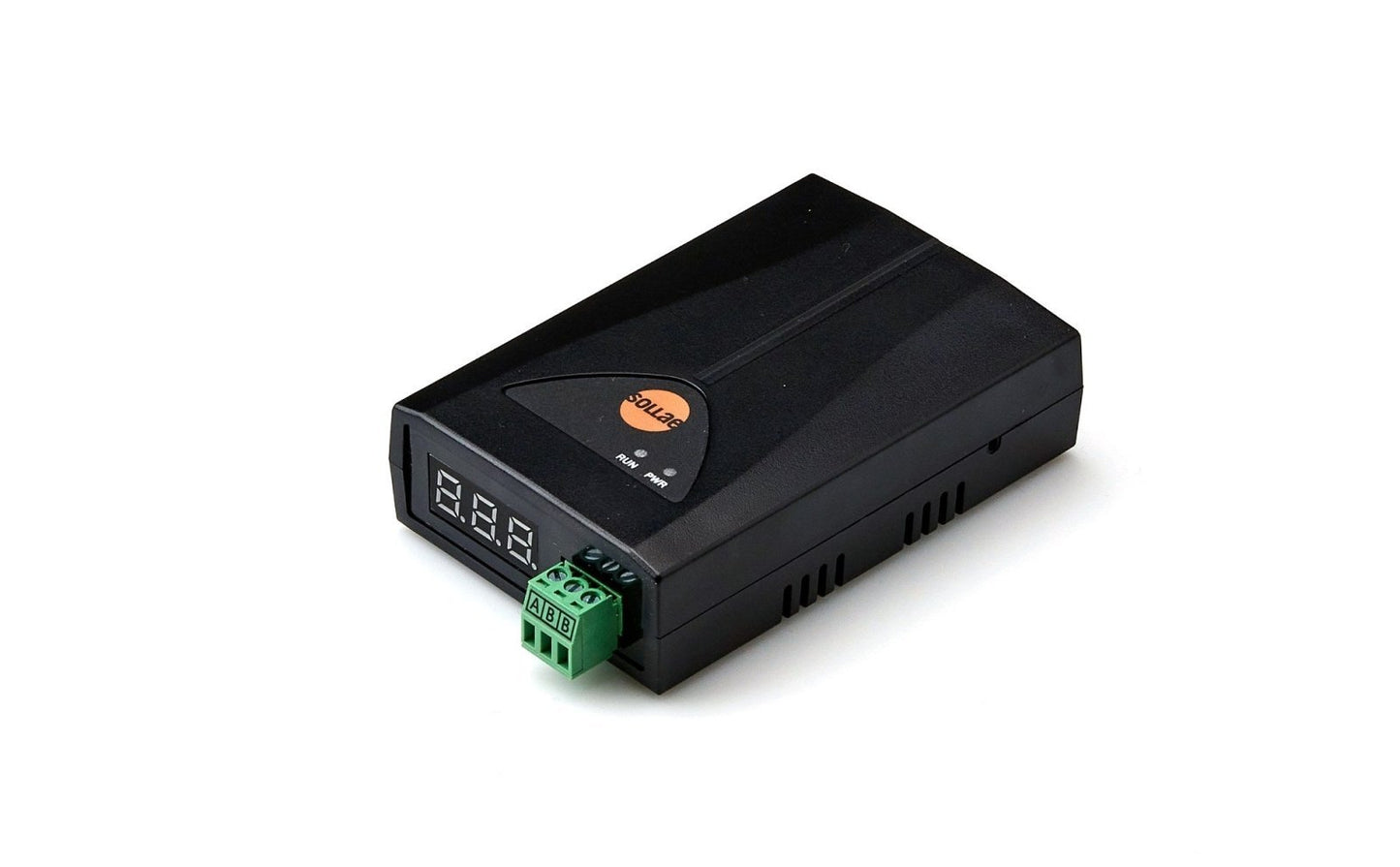

• PT100 connection port: support 3-wire PT100 sensors
• Display: a red 3-digit 7-segment LED
• Protocol: Modbus/TCP
• Stores the lowest and the highest temperature
• Supports multiple TCP connections (Max. 4 channels)
• Support a 1-bit ADC function for the Internet Switch
• Measurement Error: within ±0.3℃ (±0.54℉)
• Maximum Measurement Range: -200℃ ~ 850℃ (-328℉ ~ 1562℉)
• Device operation temperature range (Industrial: -40℃ ~ +85℃)

Specifications:

• Analog Input
• Input Type: 3-wire PT100 sensor (α=0.00385 Ω/(Ω·°C))
• Resolution: 16 bits
• Number of Ports: 1 port
• Network Physical Interface
• Network Interface: 10Base-T/100Base-TX Ethernet(RJ45)
• Ethernet Speed: Auto Sense
• 1:1 or Cross-over Cable Auto Sense
• Software Functions
  Protocols:
• IPv4/IPv6 Dual Stack
• TCP/UDP
• ICMP, DHCP, mDNS, Modbus/TCP
• SSL/TLS
• Indicators
• LEDs: PWR, STS, 3 digit 7-segment LED
• Management
• spFinder: Configuration and Monitoring Tool
• Access Security: Password
• Dimensions
• Size: 94mm x 57mm x 23mm (3.7 x 2.2 x 0.9 inches)
• Weight: About 63g (2.2 ounces)
• Operating Environment
• Power Input: DC 5±0.25V
• Protection: Reverse Voltage Protection / Surge Protection
• Current Consumption: Typically 250mA
• Operating Temperature: -40℃ ~ +85℃
• Storage Temperature: -40℃ ~ +85℃
• Certifications
• KC Registration(KN 32, KN 35)
• CE EMC 2014/30/EU, RoHS 2011/65/EU
• FCC FCC Part 15 Subpart B, Class A

Package includes:

1X SIG-5560 ezTCP Modbus TCP Temperature Gateway

The delivery of this item is stock to 2 weeks. Please contact us prior to placing your order for a specific delivery time.

Documentation & Resources:

SIG-5560 ezTCP Modbus TCP Temperature Gateway Web Page

Temperature Gateway (Modbus TCP) | SIG-5560 Overview Video

Monitoring Temperature of a Server Rack from a PC using the SIG-5560 Video

Monitor temperatures of multiple places from a PC using the SIG-5560 Video
