5V-32V Input to 1.5V-35V Output XL6009 Boost Buck Step Up Step Down DC-DC Converter

  • Sale
  • Regular price $5.49

This versatile boost-buck DC-DC power supply / converter converts any input voltage from 5V to 32V to any output voltage from 1.5V to 35V. Based on the XLSEMI XL6009 chip, it provides a single-module solution regardless of the input and output voltages.

It is especially useful for 12V applications, regardless of whether the input voltage is 5V, 9V, 12V or 32V, the output can be regulated to 12V.

XL6009 Boost Buck Converter Operation:

The 5V to 32V DC input voltage is connected to the solder pads labeled IN+ and IN-. The first section of the module steps up (boosts) the input to an internal voltage >35V. The second section of the module then steps down (bucks) this voltage to the output voltage level set by the onboard potentiometer. The output voltage is connected to the load via the OUT+ and OUT- solder pads.


  • Wide input voltage: 5V - 32V
  • Wide output Voltage: 1.5V - 35V adjustable with onboard potentiometer
  • Efficient MOSFET switching enables efficiency up to 94%
  • High switching frequency of 400KHz for low ripple and fast response time
  • Applications:
  • Automotive voltage regulators
  • Solar photovoltaic and wind power (regulating the voltage from solar panels or wind generators)
  • Applications requiring regulation of broadly varying or instable voltages


  • Non-isolated step-up & down module (Boost & Buck)
  • Input voltage: 5-32V
  • Output voltage: 1.5-35V continuously adjustable
  • Output Current: 1.5A (Max)
  • Output power: Natural cooling 20W, plus heat sink 25W (Max)
  • Conversion efficiency: 80% to 94%, varies with the input voltage, output voltage and current
  • Operating temperature: Industrial grade -40 C to + 85 C (If the ambient temperature exceeds 40 C, power should be derated or additional heat sinking or forced air cooling used)
  • Full load temperature rise: 45 C
  • Operating frequency: 400khz
  • Voltage regulation: ± 0.5%
  • Dynamic response speed: 5% 200uS
  • Short circuit protection: None (Please install fuse or protection circuit input)
  • Input reverse polarity protection: None, please use a reverse protection diode in series with the input
  • Installation: Two 3 mm mounting holes

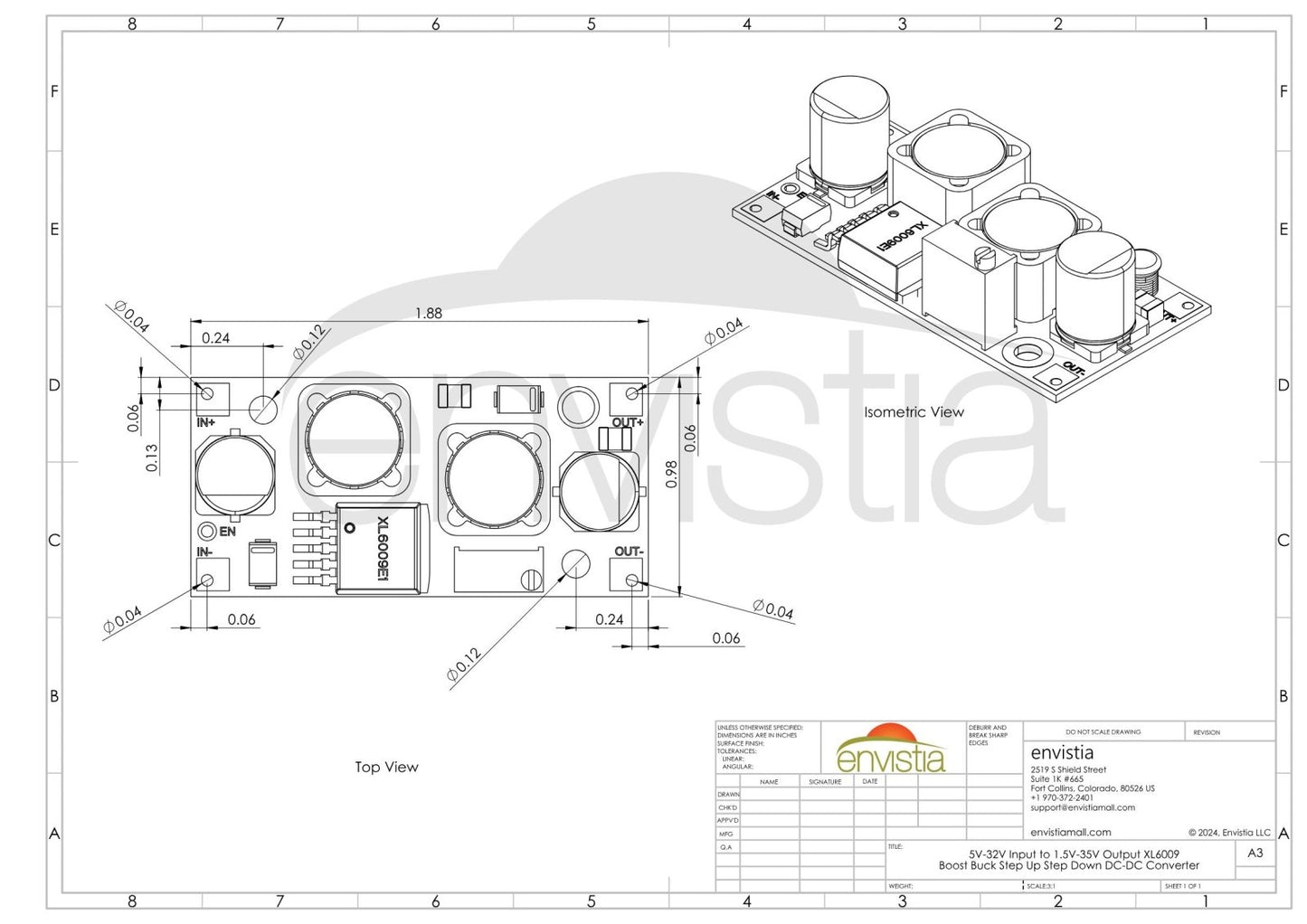

  • Dimensions: 48mm x 23mm x 11mm LxWxH (1.9 x 0.9 x 0.4 inches)
  • Weight: 15 grams

Package Includes:

1x 5V-32V to 1.5V-35V Boost Buck Adjustable XL6009 Step Up Down Converter Power Supply Module
Online specifications and usage documentation
