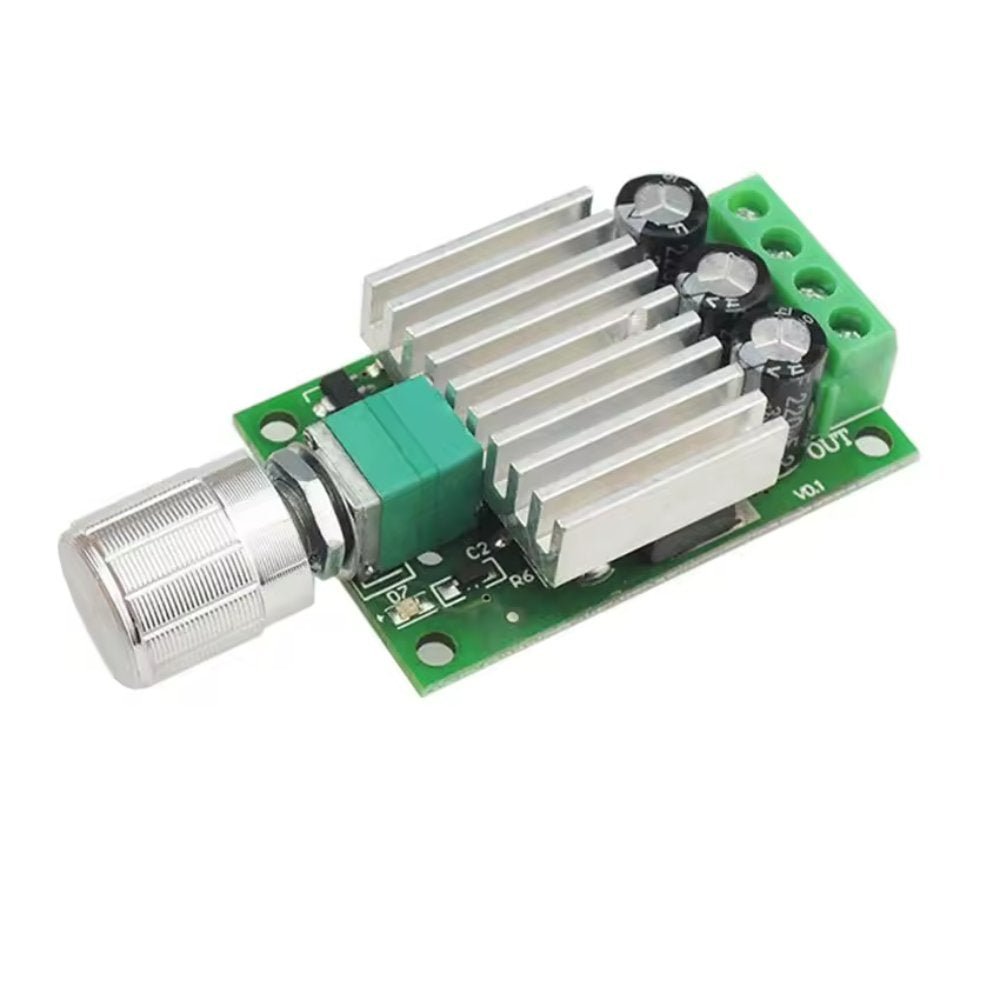

This 12-30VDC 7A PWM DC Motor Speed Controller makes it easy to adjust the speed of a DC motor using any power supply between 12V and 30V. Simply turn the on-board potentiometer to smoothly control the motor's speed from 5% to 100% duty cycle — no external components or programming required. The built-in On/Off switch (integrated into the potentiometer) lets you power the module on and off with a simple click. With support for up to 7A continuous current (10A peak) and built-in over-current, over-temperature, and short-circuit protection, this compact controller is a reliable choice for a wide range of DC motor projects.
⭐ Features
- High Current Capacity – Handles up to 7A continuous and 10A peak current for demanding DC motor applications
- Wide Voltage Range – Works with any DC power supply from 12V to 30V
- PWM Speed Control – Smooth, efficient Pulse Width Modulation with 5%–100% duty cycle adjustment
- On-board Potentiometer – Simple turn-dial speed control; no external components needed
- Built-in On/Off Switch – Integrated into the potentiometer (click fully counter-clockwise to turn off)
- Built-in Protection – Over-current, over-temperature, and short-circuit protection for safe, reliable operation
- Power Indicator LED – On-board LED illuminates when the module is powered
- Compact Size – Only 50mm × 32mm × 16mm (1.97″ × 1.25″ × 0.62″) excluding potentiometer shaft, easy to mount in any project
- Screw Terminals – Secure, tool-friendly connections for power supply and motor wiring
💡 What is PWM?
Pulse Width Modulation (PWM) is a technique that controls motor speed by rapidly switching the power on and off. Instead of reducing the voltage (which can cause a motor to stall at low speeds), PWM delivers full-voltage pulses at varying widths. A wider pulse means more power and higher speed; a narrower pulse means less power and lower speed. This results in smoother, more efficient speed control across the entire range.
📋 Specifications
| Input Supply Voltage | 12–30 VDC |
| Maximum Continuous Output Current | 7A |
| Maximum Peak Output Current | 10A |
| PWM Duty Cycle Range | 5%–100% (adjustable) |
| Control Method | On-board potentiometer with integrated On/Off switch |
| Protection | Over-current, over-temperature, short-circuit |
| Power Indicator | On-board LED |
| Dimensions (L × W × H) |
50mm × 32mm × 16mm (1.97″ × 1.25″ × 0.62″) excluding potentiometer shaft |
🔌 Terminal Connections
The module has four screw terminals arranged in two pairs. The labels are printed on the back of the circuit board.
| Terminal | Label | Connect To |
|---|---|---|
| Power + | Power + | Positive (+) lead of your DC power supply |
| Power − | Power − | Negative (−) lead of your DC power supply |
| Motor + | Motor + | Positive (+) lead of your DC motor |
| Motor − | Motor − | Negative (−) lead of your DC motor |
⚠️ IMPORTANT: The Power − and Motor − terminals must not be connected together. They must remain as separate connections. Tying them together will prevent the controller from working properly.
🔋 Power Supply Guidelines
- Use a DC power supply rated between 12V and 30V. The voltage you supply to the module is the voltage that will be delivered to your motor (modulated by the PWM duty cycle).
- Make sure your power supply can provide at least as much current as your motor requires. The module supports up to 7A continuous (10A peak).
- Do not exceed 30V or 7A continuous, as this may damage the controller or your motor.
- We strongly recommend adding an appropriately rated fuse inline with the positive power supply lead to protect the circuit from short circuits.
💻 Setup & Operation
Follow these steps in order for safe and correct operation:
Step 1 — Turn the Module Off
Rotate the potentiometer fully counter-clockwise until you hear and feel a click. This engages the built-in power switch and ensures the module is off before you make any connections.
Step 2 — Connect the Motor
Attach your DC motor's wires to the Motor + and Motor − screw terminals. Use a small flathead screwdriver to secure the wires. If your motor spins in the wrong direction, simply swap the two motor wires.
Step 3 — Connect the Power Supply
Attach your DC power supply (12V–30V) to the Power + and Power − screw terminals. Double-check polarity — connecting with reversed polarity can damage the module.
💡 Tip: Insert an inline fuse (rated slightly above your motor's expected current draw) on the Power + wire for added protection.
Step 4 — Power On & Adjust Speed
Rotate the potentiometer clockwise past the click to turn the module on. The on-board power LED will illuminate, confirming the module is receiving power. Continue rotating clockwise to increase motor speed, or counter-clockwise to decrease it.
- Fully counter-clockwise (past click) = Off
- Just past the click = Minimum speed (~5% duty cycle)
- Fully clockwise = Maximum speed (100% duty cycle / full supply voltage)
🛠️ Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not spin | Module is switched off | Rotate potentiometer clockwise past the click to turn on |
| Motor does not spin | Power − and Motor − are tied together | Ensure the ground wires are connected to their own separate terminals — do not bridge them |
| Motor does not spin | Reversed power supply polarity | Check that + goes to Power + and − goes to Power − |
| Motor does not spin | Blown inline fuse | Check and replace the fuse if installed |
| Motor does not spin | Over-current or short-circuit protection triggered | Disconnect power, check motor wiring for shorts, reduce load, then reconnect |
| Power LED does not light up | No power reaching the module | Verify your power supply is on, wires are secure, and voltage is within 12–30V |
| Motor spins in the wrong direction | Motor leads are reversed | Swap the Motor + and Motor − wires |
| Motor stutters or runs rough at low speed | Motor may require a minimum voltage to start | Increase the potentiometer setting; some motors need a higher duty cycle to overcome starting friction |
| Module or motor gets very hot | Motor is drawing close to or exceeding 7A | Reduce the load on the motor, improve ventilation, or use a controller rated for higher current |
| Module shuts off unexpectedly | Over-temperature protection activated | Allow the module to cool down, ensure adequate airflow, and verify the motor's current draw is within the 7A limit |
💡 Project Ideas
- Variable-speed fan – Control a 12V or 24V DC cooling fan for workbench ventilation or electronics enclosures
- LED dimmer – Dim a 12V or 24V LED strip light (within the 7A limit) for accent or task lighting
- Model trains & RC vehicles – Adjust motor speed for scale-model locomotives or remote-control cars
- Pump speed control – Regulate a DC water pump for aquaponics, hydroponics, or fountain projects
- Drill press or rotary tool – Add variable speed to a DC-powered drill or grinding tool
- Conveyor belt – Control the belt speed on a hobby or educational conveyor system
- Electric scooter or go-kart – Regulate motor speed on a small 24V electric vehicle (within current limits)
- Winch or hoist – Control the speed of a small DC winch for lifting or pulling applications
🛒 Where to Buy the 12-30VDC 7A PWM DC Motor Speed Controller
You can purchase the 12-30VDC 7A PWM DC Motor Speed Controller directly from Envistia Mall:
12-30V 7A PWM Motor Controller
