This DC Motor PWM Speed Controller/Regulator controls the speed of a DC motor using a Pulse Width Modulated (PWM) DC voltage from 6V to 28V with a Duty Cycle fully adjustable from 5%-100% using the onboard potentiometer. It can provide a continuous current of up to 3A to your DC motor or other DC load.
⭐ Features
- Wide Voltage Range – Works with any DC power supply from 6V to 28V
- Up to 3A Continuous Current – Drive DC motors and loads up to 80W
- PWM Speed Control – Smooth, efficient Pulse Width Modulation with 5%–100% duty cycle adjustment
- On-board Potentiometer – Simple turn-dial speed control; no external components needed
- Built-in On/Off Switch – Integrated into the potentiometer (click fully counter-clockwise to turn off)
- Power Indicator LED – On-board LED illuminates when the module is powered
- Compact Size – Only 50mm × 32mm × 16.5mm (2″ × 1.25″ × 0.65″), easy to mount in any project
- Screw Terminals – Secure, tool-friendly connections for power supply and motor wiring
💡 What is PWM?
Pulse Width Modulation (PWM) is a technique that controls motor speed by rapidly switching the power on and off. Instead of reducing the voltage (which can cause a motor to stall at low speeds), PWM delivers full-voltage pulses at varying widths. A wider pulse means more power and higher speed; a narrower pulse means less power and lower speed. This results in smoother, more efficient speed control across the entire range.
📋 Specifications
| Input Supply Voltage | 6–28 VDC |
| Maximum Output Power | 80W |
| Maximum Continuous Output Current | 3A |
| PWM Duty Cycle Range | 5%–100% (adjustable) |
| Control Method | On-board potentiometer with integrated On/Off switch |
| Power Indicator | On-board LED |
| Dimensions (L × W × H) | 50mm × 32mm × 15mm (2″ × 1.26″ × 0.6″) excluding potentiometer shaft |
🔌 Terminal Connections

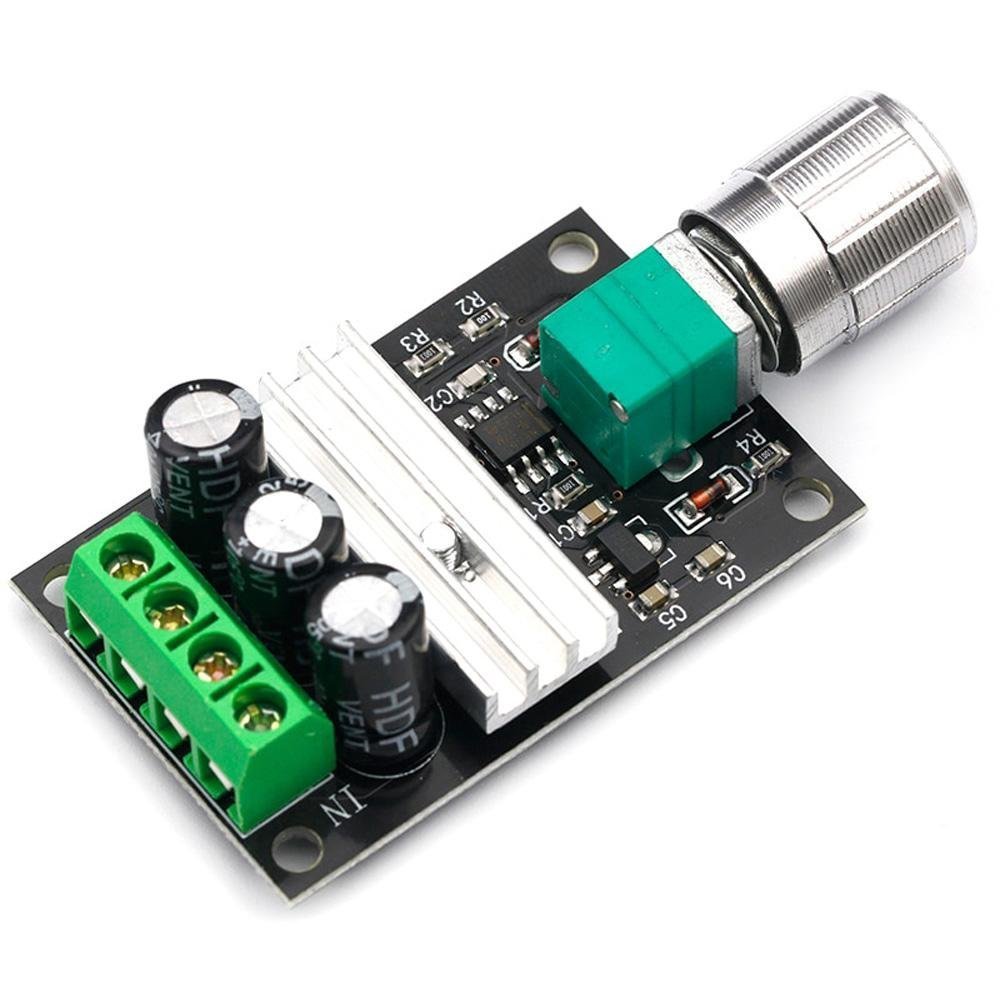

The module has four screw terminals arranged in two pairs. The labels are printed on the back of the circuit board.
| Terminal | Label | Connect To |
|---|---|---|
| Power + | Power + | Positive (+) lead of your DC power supply |
| Power − | Power − | Negative (−) lead of your DC power supply |
| Motor + | Motor + | Positive (+) lead of your DC motor |
| Motor − | Motor − | Negative (−) lead of your DC motor |
⚠️ IMPORTANT: The Power − and Motor − terminals must not be connected together. They must remain as separate connections. Tying them together will prevent the controller from working properly.
🔋 Power Supply Guidelines
- Use a DC power supply rated between 6V and 28V. The voltage you supply to the module is the voltage that will be delivered to your motor (modulated by the PWM duty cycle).
- Make sure your power supply can provide at least as much current as your motor requires. The module supports up to 3A continuous.
- Do not exceed 28V or 3A, as this may damage the controller or your motor.
- We strongly recommend adding an appropriately rated fuse inline with the positive power supply lead to protect the circuit from short circuits.
💻 Setup & Operation
Follow these steps in order for safe and correct operation:
Step 1 — Turn the Module Off
Rotate the potentiometer fully counter-clockwise until you hear and feel a click. This engages the built-in power switch and ensures the module is off before you make any connections.
Step 2 — Connect the Motor
Attach your DC motor's wires to the Motor + and Motor − screw terminals. Use a small flathead screwdriver to secure the wires. If your motor spins in the wrong direction, simply swap the two motor wires.
Step 3 — Connect the Power Supply
Attach your DC power supply (6V–28V) to the Power + and Power − screw terminals. Double-check polarity — connecting with reversed polarity can damage the module.
💡 Tip: Insert an inline fuse (rated slightly above your motor's expected current draw) on the Power + wire for added protection.
Step 4 — Power On & Adjust Speed
Rotate the potentiometer clockwise past the click to turn the module on. The on-board power LED will illuminate, confirming the module is receiving power. Continue rotating clockwise to increase motor speed, or counter-clockwise to decrease it.
- Fully counter-clockwise (past click) = Off
- Just past the click = Minimum speed (~5% duty cycle)
- Fully clockwise = Maximum speed (100% duty cycle / full supply voltage)
🛠️ Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not spin | Module is switched off | Rotate potentiometer clockwise past the click to turn on |
| Motor does not spin | Power − and Motor − are tied together | Ensure the ground wires are connected to their own separate terminals — do not bridge them |
| Motor does not spin | Reversed power supply polarity | Check that + goes to Power + and − goes to Power − |
| Motor does not spin | Blown inline fuse | Check and replace the fuse if installed |
| Power LED does not light up | No power reaching the module | Verify your power supply is on, wires are secure, and voltage is within 6–28V |
| Motor spins in the wrong direction | Motor leads are reversed | Swap the Motor + and Motor − wires |
| Motor stutters or runs rough at low speed | Motor may require a minimum voltage to start | Increase the potentiometer setting; some motors need a higher duty cycle to overcome starting friction |
| Module or motor gets very hot | Motor is drawing close to or exceeding 3A | Reduce the load on the motor, or use a controller rated for higher current |
💡 Project Ideas
- Variable-speed fan – Control a 12V or 24V DC cooling fan for workbench ventilation or electronics enclosures
- LED dimmer – Dim a 12V LED strip light (within the 3A limit) for accent or task lighting
- Model trains & RC vehicles – Adjust motor speed for scale-model locomotives or remote-control cars
- Pump speed control – Regulate a small DC water pump for aquaponics, hydroponics, or fountain projects
- Drill press or rotary tool – Add variable speed to a small DC-powered drill or grinding tool
- Conveyor belt – Control the belt speed on a small hobby or educational conveyor system
🛒 Where to Buy the 6-28V 3A PWM DC Motor Speed Controller
You can purchase the 6-28V 3A PWM Motor Controller directly from Envistia Mall:
