📋 Overview

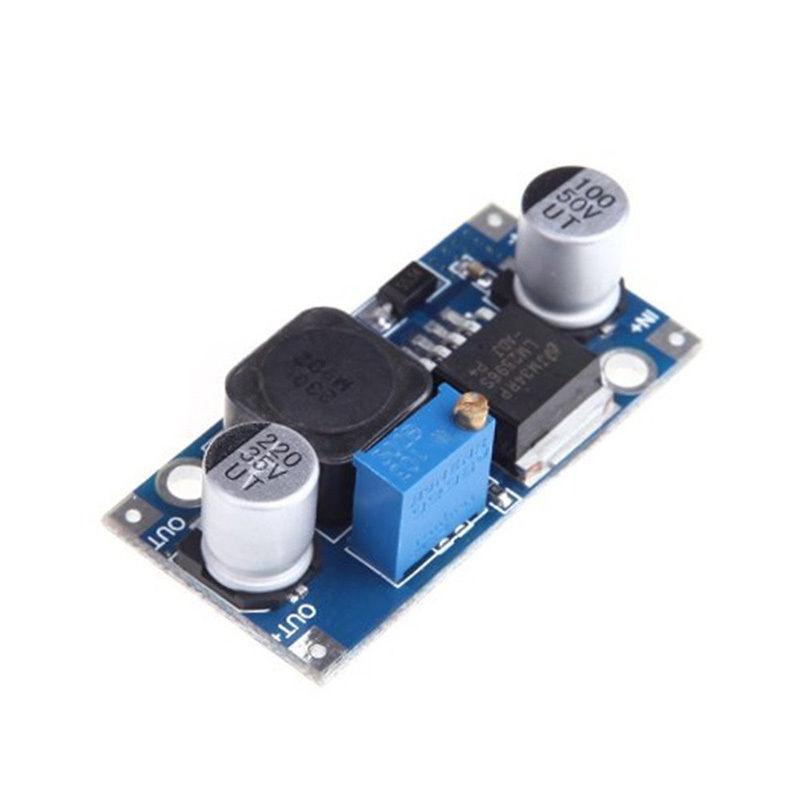

The LM2596 DC-DC Step-Down Buck Converter Module is a compact, adjustable voltage regulator that converts a higher DC input voltage down to a lower DC output voltage. It accepts input from 4V to 40V and lets you dial in any output voltage from 1.25V to 35V using the on-board potentiometer.
With up to 3A of output current and up to 92% conversion efficiency, it's one of the most popular and versatile power modules for electronics projects.
This is the voltage-control only version — it does not include constant-current control or a built-in voltage/current display.
⚠️ Important: The output voltage must always be set lower than the input voltage. Always verify the output with a multimeter before connecting your load. Observe correct polarity — reverse polarity on the input can permanently damage the module.
💡 What Is a Buck Converter?
A buck converter (also called a "step-down converter") is a type of DC-DC power supply that efficiently reduces a higher voltage to a lower voltage. Unlike a simple linear voltage regulator (like the LM7805), which burns off excess voltage as heat, a buck converter uses high-frequency switching to transfer energy through an inductor. This makes it far more efficient — the LM2596 module can achieve up to 92% efficiency, meaning very little energy is wasted as heat.
Think of it like a gear reduction in a car: you're trading voltage for current capacity, and doing it efficiently. If you feed in 24V and set the output to 5V, the module isn't just throwing away 19V worth of energy — it's converting most of that into usable current at the lower voltage.
🔧 How It Works
- Connect your DC power source (battery, power supply, solar panel, etc.) to the IN+ and IN− pads on the module.
- Before connecting any load, use a multimeter to measure the voltage at the OUT+ and OUT− pads.
- Turn the on-board potentiometer with a small Phillips or flathead screwdriver to adjust the output voltage to your desired level. Turning clockwise typically increases the voltage; counterclockwise decreases it.
- Once the output voltage reads correctly on your multimeter, connect your load (device, circuit, LED strip, etc.) to the OUT+ and OUT− pads.
- The module now continuously regulates the output voltage at the level you set, regardless of minor fluctuations in the input voltage or load current (within its rated limits).
📊 Specifications
| Module Type | DC-DC Step-Down (Buck) Converter |
| Regulator IC | LM2596 / LM2596S |
| Input Voltage | 4V – 40V DC |
| Output Voltage | 1.25V – 35V DC (adjustable) |
| Max Output Current | 3A (2A recommended for continuous use) |
| Conversion Efficiency | Up to 92% |
| Switching Frequency | 150 kHz |
| Load Regulation | ±0.5% |
| Output Ripple | ≤30 mV (typical) |
| Voltage Adjustment | On-board potentiometer |
| Operating Temperature | -40°C to +85°C |
| Connections | IN+, IN−, OUT+, OUT− |
| Board Dimensions | Approx. 43 × 21 × 14 mm (1.69 × 0.83 × 0.55 inches) L × W × H |
| Weight | Approx. 0.4 Ounces (10g) |
📌 Pin / Pad Descriptions
The module has four solder pads (or screw terminal holes, depending on the variant). There are no complicated pinouts — just power in and power out:
| Pad | Label | Description |
|---|---|---|
| 1 | IN+ | Positive input — connect to the positive terminal of your DC power source |
| 2 | IN− | Negative input (ground) — connect to the negative terminal of your DC power source |
| 3 | OUT+ | Positive output — connect to the positive input of your load/device |
| 4 | OUT− | Negative output (ground) — connect to the negative/ground of your load/device |
Note: IN− and OUT− share a common ground on the PCB. In most wiring scenarios, you can treat them as the same ground reference.
🔌 Compatible With
This module works with virtually any DC-powered device or project that operates within its voltage and current range:
- Arduino (Uno, Mega, Nano, etc.) — power via the 5V pin or VIN
- Raspberry Pi — set output to 5.1V for stable operation
- ESP32 / ESP8266 — set output to 3.3V or 5V depending on your board
- LED strips — 5V (WS2812B) or 12V strips
- DC motors and fans — at the motor's rated voltage
- Sensors and peripheral modules — 3.3V or 5V logic devices
- Any DC load requiring 1.25V to 35V at up to 3A
🎯 Common Applications
- Microcontroller Power Supply — Step down 12V or 24V battery/adapter power to 5V or 3.3V for Arduino, Raspberry Pi, or ESP boards
- Vehicle/Marine Electronics — Convert 12V–24V vehicle power to the voltage your device needs
- LED Lighting — Drive LED strips or individual high-power LEDs at a precise voltage
- Solar Projects — Regulate variable solar panel output to a stable voltage for charging or powering devices
- Battery-Powered Projects — Get a stable, lower voltage from a battery pack (e.g., 3S LiPo at 11.1V down to 5V)
- Bench Power Supply — Use as the core of a simple adjustable bench supply for testing and prototyping
- Robotics — Provide separate regulated voltage rails for logic and motor circuits
🚀 Getting Started
Setting up the LM2596 module is straightforward — no programming, no software, no libraries. Just wire, adjust, and go.
What You'll Need
- A DC power source (battery, wall adapter, etc.) between 4V and 40V
- A multimeter (to verify output voltage)
- A small screwdriver (Phillips or flathead, to turn the potentiometer)
- Hook-up wire or jumper wires
- Soldering iron and solder (if your module has bare pads rather than screw terminals)
Step-by-Step Setup
- Inspect the module. Identify the IN+, IN−, OUT+, and OUT− pads. The potentiometer is the small blue component with a cross-head screw on top.
- Wire the input. Connect your DC power source's positive wire to IN+ and negative wire to IN−. Double-check polarity before powering on.
- Power on (no load yet). Turn on your power source. The module is now active, but don't connect your device to the output yet.
- Measure the output. Place your multimeter probes on OUT+ (red) and OUT− (black). Read the current output voltage.
- Adjust the potentiometer. Using your small screwdriver, slowly turn the potentiometer screw. Watch the multimeter reading change. Dial it in to your target voltage. The potentiometer may require many turns to sweep the full range — this is normal and gives you fine control.
- Connect your load. Once the output voltage is set correctly, connect your device or circuit to OUT+ and OUT−.
- Verify under load. Check the output voltage again with your load connected. It should remain very close to your set voltage (within ±0.5% per the load regulation spec). If it drops significantly, your load may be drawing more current than the module can supply.
🔧 Configuration
The LM2596 module has one user-adjustable component: the potentiometer.
Potentiometer Adjustment
The potentiometer is a multi-turn variable resistor that controls the feedback voltage to the LM2596 IC, which in turn sets the output voltage. Here's what you need to know:
- Direction: Clockwise rotation typically increases the output voltage. Counterclockwise decreases it. (Some board variants may be reversed — always verify with a multimeter.)
- Multi-turn: The potentiometer requires many full rotations to sweep from minimum to maximum output. This is by design — it gives you precise control over the output voltage.
- Tool: Use a small Phillips-head or flathead screwdriver. Avoid using excessive force, as the potentiometer is a delicate component.
- Always adjust with a multimeter connected to the output so you can see the voltage change in real time.
Input/Output Voltage Relationship
The output voltage must always be lower than the input voltage. The LM2596 requires a minimum dropout voltage of approximately 1.5V to 2V between input and output to regulate properly. For example:
| Input Voltage | Maximum Reliable Output |
|---|---|
| 5V | ~3.3V |
| 12V | ~10V |
| 24V | ~22V |
| 40V (max input) | ~35V |
If you set the output too close to the input voltage, the module will fall out of regulation and the output will become unstable or simply follow the input.
🔋 Thermal Management & Current Derating
The LM2596 is rated for up to 3A, but real-world performance depends on the voltage differential and thermal conditions:
- Low differential (e.g., 12V → 9V at 2A): The module will run cool with no issues.
- High differential (e.g., 24V → 3.3V at 3A): The module will generate significant heat. The LM2596 IC has built-in thermal shutdown protection, but sustained operation at high heat will reduce reliability.
Tips for Managing Heat
- For sustained loads above 2A, consider adding a small adhesive heatsink to the LM2596 IC (the large 5-pin chip on the board).
- Ensure adequate airflow around the module — don't seal it in a tight enclosure without ventilation.
- If your application consistently needs 3A at a large voltage drop, consider using a module with a higher-rated IC or adding active cooling (a small fan).
- As a rule of thumb, keep continuous current at or below 2A for long-term reliability without a heatsink.
🛠️ Wiring Examples
Example 1: Powering an Arduino Uno from a 12V Battery
This is one of the most common use cases. You have a 12V battery (or 12V wall adapter) and need 5V for your Arduino.
| Connection | From | To |
|---|---|---|
| Power In (+) | 12V battery positive | Module IN+ |
| Power In (−) | 12V battery negative | Module IN− |
| Power Out (+) | Module OUT+ | Arduino 5V pin |
| Power Out (−) | Module OUT− | Arduino GND pin |
Set the potentiometer to output exactly 5.0V before connecting to the Arduino. Verify with your multimeter.
Example 2: Powering a Raspberry Pi from a 24V Supply
| Connection | From | To |
|---|---|---|
| Power In (+) | 24V supply positive | Module IN+ |
| Power In (−) | 24V supply negative | Module IN− |
| Power Out (+) | Module OUT+ | Raspberry Pi 5V (GPIO Pin 2 or 4) |
| Power Out (−) | Module OUT− | Raspberry Pi GND (GPIO Pin 6) |
Set the potentiometer to output 5.1V (the Raspberry Pi prefers slightly above 5V for stable operation). Verify with your multimeter. Note: At 24V input and 5.1V output, the voltage differential is large — monitor the module temperature and add a heatsink if needed.
Example 3: Powering a 5V LED Strip from a 12V Source
| Connection | From | To |
|---|---|---|
| Power In (+) | 12V adapter positive | Module IN+ |
| Power In (−) | 12V adapter negative | Module IN− |
| Power Out (+) | Module OUT+ | LED strip +5V wire |
| Power Out (−) | Module OUT− | LED strip GND wire |
Important: Make sure your LED strip draws less than 3A total. A full meter of WS2812B LEDs (60 LEDs) at full white brightness can draw around 3.5A — in that case, you'd need a higher-rated converter or should limit brightness in your code.
⚠️ Important Notes & Safety
- Always set the output voltage before connecting your load. The module may power up with the potentiometer set to an unknown voltage. Connecting a 3.3V device to an output set at 20V will destroy it instantly.
- Observe correct polarity. There is no reverse-polarity protection on this module. Connecting the input backwards can permanently damage the LM2596 IC and other components.
- Do not exceed 40V input. The LM2596 is rated for 40V maximum. Exceeding this will damage the IC.
- Output must be lower than input. The module cannot boost voltage — it can only step it down. If you need to increase voltage, you need a boost (step-up) converter instead.
- This module does not provide current limiting. If your load tries to draw more than the module can supply, the output voltage will drop and the IC may overheat and shut down. This version does not have constant-current (CC) mode.
- No built-in display. You must use an external multimeter to read the output voltage. If you need a built-in display, look for the LM2596 variant with an integrated LED voltmeter.
- Not suitable for sensitive analog circuits without additional filtering. As a switching converter, the LM2596 produces some output ripple (≤30 mV typical). For noise-sensitive analog applications, consider adding additional LC filtering on the output or using a linear regulator (like an LM317) as a post-regulator.
- Secure the potentiometer setting. Once you've dialed in your desired voltage, the potentiometer will hold its position, but vibration can cause it to drift over time. In permanent installations, consider applying a small drop of nail polish or thread-lock compound to the potentiometer screw to prevent accidental adjustment.
🛠️ Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No output voltage | No input power, or input polarity reversed | Verify input voltage and polarity with a multimeter. Check that your power source is on and delivering voltage. |
| Output voltage is the same as input | Potentiometer set to maximum, or module is damaged | Turn the potentiometer counterclockwise (many turns). If the output doesn't change, the IC may be damaged. |
| Output voltage is unstable or fluctuating | Input voltage too close to output, or load is drawing too much current | Ensure at least 1.5V–2V difference between input and output. Reduce the load current or use a higher-rated module. |
| Module gets very hot | Large voltage differential at high current | Add a heatsink to the LM2596 IC. Reduce current draw or increase airflow. Keep continuous current below 2A without a heatsink. |
| Output voltage drops under load | Load exceeds module's current capacity | Measure the load current. If it exceeds 3A, use a higher-rated converter. If under 3A, check for loose connections. |
| Output has noise/ripple | Normal for switching converters | Add a 100µF–470µF electrolytic capacitor across the output. For sensitive circuits, add an LC filter or a post-regulator. |
| Potentiometer doesn't seem to change voltage | Potentiometer needs many turns to sweep range | Keep turning — the potentiometer is multi-turn. It may take 15–20 full rotations to go from minimum to maximum. |
📦 What's in the Box
- 1× LM2596 DC-DC Step-Down Buck Converter Module
Multimeter, wires, screwdriver, and power source are not included.
🏪 Where to Buy the LM2596 Converter
This module is available at Envistia Mall.
- 📦 Fast US Shipping
- 🔄 Hassle-Free Returns
- 📧 Responsive Customer Support
📚 Additional Resources
- Need this module with Constant Current control? Check out the LM2596 CC/CV Step Down Converter Module — Better for driving LEDs and other applications that benefit from precise current control.
- Check out our other Buck Converter Modules at Envistia Mall — Models with adjustable output voltage, higher current, and built-in digital voltmeters.
- LM2596 Datasheet (Texas Instruments)
This user guide is provided by Envistia Mall for informational and educational purposes only. While we strive for accuracy, specifications are based on manufacturer data and may vary. Always verify critical parameters with your own measurements. Envistia LLC (dba Envistia Mall) and the original manufacturer are not responsible for any damages, injuries, or losses resulting from the use or misuse of this product. Always follow proper electrical safety practices when working with electronic components.
