📋 Overview

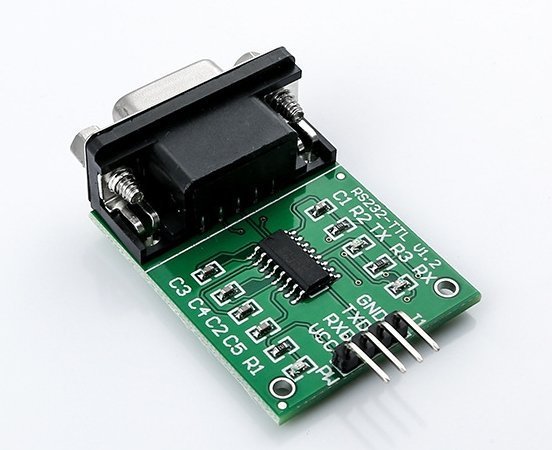

The MAX232 (SP3232) RS232 to TTL Converter Module bridges the gap between old-school RS232 serial communication and the TTL logic levels used by modern microcontrollers. If you've ever needed to connect an Arduino, PIC, STM32, or other microcontroller to a computer's serial COM port (or any RS232 device), this module makes it simple — no complicated circuits required.
The module uses the SP3232 transceiver IC, which is a modern, improved version of the classic MAX232 chip. The SP3232 offers the same RS232-to-TTL conversion but with a wider operating voltage range (3.3V–5V) and lower power consumption. This means it works great with both 3.3V boards (like many ARM-based microcontrollers) and 5V boards (like the Arduino Uno).
What sets this particular module apart from many similar converters on the market is its onboard LED indicators — a Power LED, a TX LED, and an RX LED — that give you instant visual feedback on power status and data flow. When you're debugging a serial connection, those blinking LEDs can save you a lot of headaches.
💡 What Is RS232 and Why Do You Need a Converter?
RS232 in a Nutshell
RS232 is one of the oldest and most widely used serial communication standards. It was originally designed in the 1960s for connecting computers to modems, but it's still found today in industrial equipment, networking gear, scientific instruments, point-of-sale systems, and legacy computing hardware.
The key thing to understand is that RS232 uses different voltage levels than the logic levels used by microcontrollers:
| Signal Standard | Logic "1" (Mark) | Logic "0" (Space) |
|---|---|---|
| RS232 | -3V to -15V | +3V to +15V |
| TTL (5V) | +5V | 0V |
| TTL (3.3V) | +3.3V | 0V |
As you can see, RS232 signals can swing as high as ±15V, while your microcontroller expects 0–5V (or 0–3.3V). Connecting an RS232 signal directly to a microcontroller pin would likely damage it. That's exactly what this converter module prevents — it safely translates between the two voltage levels in both directions.
How the SP3232 IC Works
The SP3232 IC contains built-in charge pump circuits that generate the positive and negative voltages needed for RS232 signaling from a single 3.3V or 5V power supply. It also includes two RS232 drivers (TTL-to-RS232) and two RS232 receivers (RS232-to-TTL), though this module uses one driver and one receiver for a single bidirectional serial channel (TX and RX).
💡 Tip: You may see this module referred to as a "MAX232 module" — that's because the MAX232 is the most famous chip in this family. The SP3232 used on this board is fully compatible but offers the advantage of working at both 3.3V and 5V, whereas the original MAX232 only works at 5V.
⭐ Key Features
- RS232 to TTL Bidirectional Conversion — Converts RS232 signals to TTL logic levels and vice versa for seamless two-way serial communication.
- SP3232 Transceiver IC — Modern replacement for the classic MAX232, with lower power consumption and wider voltage support (3.3V–5V).
- DB9 Female Connector — Standard 9-pin RS232 connector for direct connection to computers, industrial equipment, and other RS232 devices using a standard serial cable.
- Onboard LED Indicators — Power, TX (Transmit), and RX (Receive) LEDs provide real-time visual feedback on module status and data activity. Many competing modules lack these LEDs.
- Wide Operating Voltage — Works with both 3.3V and 5V systems, making it compatible with virtually any microcontroller platform.
- Low Power Consumption — Draws approximately 6mA, making it suitable for battery-powered or low-power applications.
- Built-in Charge Pumps — The SP3232 IC generates the required RS232 voltage levels internally — no external negative voltage supply needed.
- Compact Form Factor — Small enough to fit into tight project enclosures or breadboard setups.
- Wide Compatibility — Works with Arduino, Raspberry Pi (with level considerations), PIC, Atmel AVR, STM32, ESP32, and any other microcontroller with UART serial capability.
📊 Specifications
| Parameter | Value |
|---|---|
| Transceiver IC | SP3232 (MAX232 compatible) |
| Operating Voltage | 3.3V – 5V DC |
| Operating Current | ~6mA |
| RS232 Connector | DB9 Female |
| TTL Interface Pins | VCC, GND, TXD, RXD |
| Maximum Baud Rate | Up to 120 kbps (per SP3232 datasheet) |
| LED Indicators | Power (PWR), Transmit (TX), Receive (RX) |
| RS232 Output Swing (at 3.3V VCC) | Approximately ±6V |
| RS232 Output Swing (at 5V VCC) | Approximately ±9V |
| Board Dimensions (excl. connectors) | Approx. 40 × 31 mm (1.6 x 1.2 inches) L × W |
| Overall Dimensions (incl. connectors) | Approx. 52 × 31 × 14 mm (2.0 x 1.2 x 0.55 inches) L × W × H |
| Power Supply | External (via VCC pin) |
📌 Pinout
TTL Header Pins
The module has a 4-pin header on the TTL side for connecting to your microcontroller:
| Pin | Label | Description |
|---|---|---|
| 1 | VCC | Power supply input (3.3V or 5V DC) |
| 2 | GND | Ground |
| 3 | TXD | TTL Transmit Data — data output from the module (connect to your microcontroller's RX pin) |
| 4 | RXD | TTL Receive Data — data input to the module (connect to your microcontroller's TX pin) |
⚠️ Important: The TXD and RXD labels on this module refer to the module's transmit and receive lines. This means you need to cross-connect them: the module's TXD goes to your microcontroller's RX, and the module's RXD goes to your microcontroller's TX. This is the most common source of confusion — if your serial link isn't working, check this first!
DB9 Female Connector (RS232 Side)
The DB9 female connector follows the standard RS232 pinout. For this module's basic TX/RX communication, only three pins are actively used:
| DB9 Pin | Signal Name | Direction | Description |
|---|---|---|---|
| 2 | RXD (Received Data) | Input | RS232 data received from the connected device |
| 3 | TXD (Transmitted Data) | Output | RS232 data transmitted to the connected device |
| 5 | GND (Signal Ground) | — | Signal ground reference |
The remaining DB9 pins (1, 4, 6, 7, 8, 9) are for hardware flow control and other RS232 signals (DCD, DTR, DSR, RTS, CTS, RI) that are not used by this module. Most basic serial communication only requires TXD, RXD, and GND.
LED Indicators
| LED | Color | Function |
|---|---|---|
| PWR | Steady | Illuminates when the module is receiving power — confirms VCC and GND are properly connected |
| TX | Blinks | Flashes when data is being transmitted from the TTL side to the RS232 side |
| RX | Blinks | Flashes when data is being received from the RS232 side to the TTL side |
💡 Tip: The TX and RX LEDs are incredibly useful for debugging. If you're sending data but only one LED blinks (or neither), you can quickly narrow down whether the problem is on the transmit side, the receive side, or the connection itself.
🔌 Wiring and Connections
General Wiring Diagram
Here's how to connect the module between a microcontroller and an RS232 device (such as a computer's COM port):
| Module Pin | Connects To |
|---|---|
| VCC | Microcontroller's 3.3V or 5V power output |
| GND | Microcontroller's GND (common ground) |
| TXD | Microcontroller's RX pin |
| RXD | Microcontroller's TX pin |
| DB9 Connector | RS232 device via a standard DB9 serial cable |
⚠️ Important: Always connect GND between the module and your microcontroller. Without a common ground reference, serial communication will not work and you may get garbage data or no data at all.
Wiring to Arduino Uno (5V Example)
| Module Pin | Arduino Uno Pin |
|---|---|
| VCC | 5V |
| GND | GND |
| TXD | Digital Pin 0 (RX) |
| RXD | Digital Pin 1 (TX) |
Wiring to Arduino Uno with SoftwareSerial (Recommended)
Using the hardware serial pins (0 and 1) on the Arduino Uno can cause conflicts when uploading sketches or using the Serial Monitor over USB. A better approach for many projects is to use SoftwareSerial on different pins:
| Module Pin | Arduino Uno Pin |
|---|---|
| VCC | 5V |
| GND | GND |
| TXD | Digital Pin 10 (SoftwareSerial RX) |
| RXD | Digital Pin 11 (SoftwareSerial TX) |
Wiring to a 3.3V Microcontroller (e.g., ESP32, STM32)
| Module Pin | Microcontroller Pin |
|---|---|
| VCC | 3.3V |
| GND | GND |
| TXD | UART RX pin |
| RXD | UART TX pin |
💡 Tip: When using a 3.3V microcontroller, make sure to power the module from the 3.3V rail. The SP3232 IC will automatically adjust its TTL output levels to match the supply voltage.
Connecting to a Computer
On the RS232 side, simply plug a standard DB9 serial cable (also called a straight-through serial cable) into the module's DB9 female connector and connect the other end to your computer's serial COM port.
If your computer doesn't have a built-in serial port (most modern PCs and laptops don't), you can use a USB-to-RS232 adapter cable with a DB9 male connector. These adapters create a virtual COM port on your computer that works just like a physical serial port.
🚀 Getting Started
Step 1: Basic Echo Test with Arduino Uno (Hardware Serial)
This simple example receives characters from a computer via RS232 and echoes them back. It's the quickest way to verify your module is working.
Wiring: Use the "Wiring to Arduino Uno" table above (VCC→5V, GND→GND, TXD→Pin 0, RXD→Pin 1).
⚠️ Important: When using hardware serial pins (0 and 1), you must disconnect the module's TXD and RXD wires before uploading a sketch to the Arduino. These pins are shared with the USB connection used for programming. Reconnect the wires after uploading.
/*
* RS232 Echo Test (Hardware Serial)
* Envistia Mall - Product Support
*
* Receives data from a computer via the MAX232 module
* and echoes it back. Use this to verify your module
* and wiring are working correctly.
*
* Connections:
* Module VCC -> Arduino 5V
* Module GND -> Arduino GND
* Module TXD -> Arduino Pin 0 (RX)
* Module RXD -> Arduino Pin 1 (TX)
* Module DB9 -> Computer serial port (via DB9 cable)
*
* IMPORTANT: Disconnect TXD and RXD wires before uploading!
*/
void setup() {
Serial.begin(9600); // Initialize serial at 9600 baud
Serial.println("MAX232 Module Echo Test");
Serial.println("Type something and press Enter...");
}
void loop() {
if (Serial.available() > 0) {
char data = Serial.read(); // Read one byte
Serial.print("Received: ");
Serial.println(data); // Echo it back
}
}
How to Use:
- Disconnect the module's TXD and RXD wires from the Arduino.
- Upload the sketch to your Arduino Uno via USB.
- Reconnect the module's TXD and RXD wires.
- Connect the DB9 connector to your computer's serial port (or USB-to-RS232 adapter).
- Open a serial terminal program on your computer (such as PuTTY, Tera Term, or the Arduino IDE Serial Monitor) and set it to the correct COM port at 9600 baud, 8N1 (8 data bits, no parity, 1 stop bit).
- Type characters in the terminal — you should see them echoed back, and the TX and RX LEDs on the module should blink with each character.
🚀 Step 2: SoftwareSerial Bridge (Recommended for Arduino Uno)
This example uses SoftwareSerial to keep the hardware serial port free for USB debugging. Data received from the RS232 device is forwarded to the Arduino Serial Monitor, and vice versa — creating a transparent serial bridge.
/*
* RS232 SoftwareSerial Bridge
* Envistia Mall - Product Support
*
* Creates a bridge between the USB Serial Monitor and
* an RS232 device connected via the MAX232 module.
* Data flows both directions transparently.
*
* Connections:
* Module VCC -> Arduino 5V
* Module GND -> Arduino GND
* Module TXD -> Arduino Pin 10 (SoftwareSerial RX)
* Module RXD -> Arduino Pin 11 (SoftwareSerial TX)
* Module DB9 -> RS232 device (via DB9 cable)
*/
#include <SoftwareSerial.h>
// Define SoftwareSerial pins
// Pin 10 = RX (connect to module TXD)
// Pin 11 = TX (connect to module RXD)
SoftwareSerial rs232Serial(10, 11);
void setup() {
Serial.begin(9600); // USB Serial Monitor
rs232Serial.begin(9600); // RS232 via MAX232 module
Serial.println("RS232 SoftwareSerial Bridge Ready");
Serial.println("Data will pass between USB and RS232.");
}
void loop() {
// Forward data from RS232 to USB Serial Monitor
if (rs232Serial.available()) {
char c = rs232Serial.read();
Serial.write(c);
}
// Forward data from USB Serial Monitor to RS232
if (Serial.available()) {
char c = Serial.read();
rs232Serial.write(c);
}
}
How to Use:
- Wire the module using the SoftwareSerial wiring table above (TXD→Pin 10, RXD→Pin 11).
- Upload the sketch to your Arduino Uno via USB (no need to disconnect wires this time).
- Open the Arduino IDE Serial Monitor at 9600 baud.
- Connect your RS232 device to the module's DB9 connector.
- Anything the RS232 device sends will appear in the Serial Monitor, and anything you type in the Serial Monitor will be sent to the RS232 device.
💡 Tip: The SoftwareSerial approach is strongly recommended for Arduino Uno projects because it avoids conflicts with the USB serial connection. For boards with multiple hardware UARTs (like the Arduino Mega, ESP32, or STM32), you can use a second hardware serial port instead of SoftwareSerial for better performance at higher baud rates.
🎯 Common Applications
- Industrial Equipment Communication — Many PLCs, CNC machines, and industrial controllers still use RS232 serial ports. This module lets you interface them with modern microcontrollers.
- Legacy Device Interfacing — Connect older RS232 peripherals (barcode scanners, receipt printers, GPS receivers, modems) to Arduino or other modern platforms.
- Computer-to-Microcontroller Communication — Send commands from a PC to a microcontroller or receive sensor data on a PC via a serial COM port.
- Serial Data Logging — Capture RS232 data streams from scientific instruments or test equipment using a microcontroller and SD card.
- Networking Equipment Configuration — Access the serial console of routers, switches, and firewalls that use RS232 console ports.
- Point-of-Sale Systems — Interface with cash registers, card readers, and display poles that communicate via RS232.
- Robotics and Automation — Communicate with servo controllers, motor drivers, and other peripherals that use serial RS232.
- Education and Prototyping — Learn about serial communication protocols and practice UART interfacing in a classroom or lab setting.
🛠️ Troubleshooting
Power LED Does Not Light Up
- Verify the power supply voltage is within the specified range (3.3V–5V DC).
- Check the polarity of the VCC and GND connections — make sure they are not reversed.
- Test with a multimeter to confirm voltage is present at the VCC pin.
- Try a different power source to rule out a weak or faulty supply.
No Data Being Transmitted or Received
- Check TX/RX cross-connection: This is the #1 issue. The module's TXD must connect to your microcontroller's RX, and the module's RXD must connect to your microcontroller's TX. If they're both connected to matching labels (TX-to-TX), swap them.
- Verify baud rate: Both the computer (or RS232 device) and the microcontroller must be set to the same baud rate. Common rates are 9600, 19200, 38400, 57600, and 115200. If you see garbled characters, a baud rate mismatch is the most likely cause.
- Check serial settings: Make sure both sides are using the same data format — typically 8N1 (8 data bits, no parity, 1 stop bit).
- Confirm the serial cable: Ensure the DB9 cable is properly seated in both the module and the computer/device. Try a different cable if available.
-
Verify COM port selection: On your computer, make sure your terminal software is set to the correct COM port. On Windows, check Device Manager; on Linux/Mac, check
/dev/ttyS*or/dev/ttyUSB*. - Check GND connection: A missing or broken ground connection between the module and the microcontroller will prevent communication.
Garbled or Corrupted Data
- Baud rate mismatch: This is the most common cause of garbled data. Double-check that both ends are set to the same baud rate.
- Voltage mismatch: If you're powering the module at 3.3V but your microcontroller runs at 5V (or vice versa), the TTL logic levels may not be interpreted correctly. Match the module's VCC to your microcontroller's logic level.
- Noise or long cable runs: RS232 is designed for cable lengths up to about 15 meters (50 feet) at standard baud rates. Longer runs or electrically noisy environments can cause data corruption. Use shielded cables for longer distances.
- SoftwareSerial limitations: On Arduino, SoftwareSerial can struggle at baud rates above 57600. If you experience issues at high speeds, try lowering the baud rate or switching to a board with multiple hardware UARTs.
TX or RX LED Not Blinking During Communication
- If the Power LED is on but the TX/RX LEDs never blink, data is not flowing through the module. Recheck your wiring and software configuration.
- If only one LED blinks, data is flowing in only one direction. Check the wiring for the non-working direction (TX or RX).
- At very high baud rates with continuous data, the LEDs may appear to be constantly on rather than blinking — this is normal.
- At very low data rates (a single character sent occasionally), the LED flash may be very brief. Watch carefully or send a continuous stream of data to test.
Intermittent Communication
- Check for loose jumper wire connections or a poorly seated DB9 cable.
- Ensure the power supply is stable and can provide sufficient current (the module draws ~6mA, but your microcontroller and other components need power too).
- If using a breadboard, try different rows — worn breadboard contacts can cause intermittent connections.
- Check for cold solder joints on the module's header pins if you soldered them yourself.
⚠️ Important Notes
- Always double-check your wiring before applying power. Reversed VCC and GND connections can damage the module and connected devices.
- Do not exceed the voltage limits. The module is designed for 3.3V–5V DC input. Applying higher voltages to the VCC pin will damage the SP3232 IC.
- Do not connect RS232 signals directly to microcontroller pins. RS232 voltage levels (up to ±15V) will damage TTL-level inputs. Always use this converter module or a similar level-shifting circuit.
- This module does not support hardware flow control. Only TXD, RXD, and GND signals are converted. If your RS232 device requires RTS/CTS or DTR/DSR handshaking, you will need a more advanced converter.
- Maximum baud rate: The SP3232 IC supports data rates up to 120 kbps. For most applications (9600–57600 baud), this is more than sufficient. If you need higher speeds, verify your specific use case against the SP3232 datasheet.
- Cable length: RS232 is rated for cable lengths up to approximately 15 meters (50 feet) at 9600 baud. Longer distances may require lower baud rates or a different communication standard (such as RS485).
- Refer to the SP3232 datasheet (link below) for detailed electrical characteristics and absolute maximum ratings.
