🧭 Overview

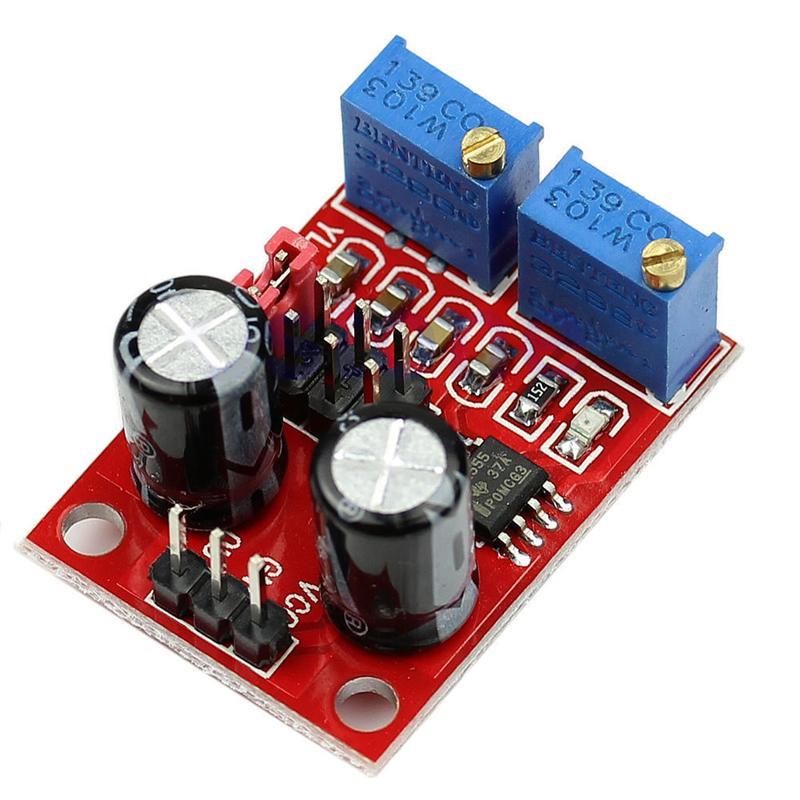

The NE555 Square Wave Pulse Generator Module is a compact, versatile signal generator based on the classic NE555 timer IC configured in astable (free-running) mode. It produces a continuous square wave output with adjustable frequency and duty cycle, making it useful for a wide range of electronics applications — from driving stepper motors and testing circuits to generating clock signals for microcontrollers.
The module measures just 31mm × 22mm (1.2" × 0.9") and features two multi-turn potentiometers and a 4-position jumper block that together give you precise control over output frequency across four selectable ranges, from approximately 1 Hz to over 200 kHz.
Key highlights
- NE555 timer IC in astable configuration
- Adjustable frequency across four jumper-selectable ranges (~1 Hz to >200 kHz)
- Adjustable duty cycle via onboard potentiometer
- Wide input voltage: 5V to 15V DC
- LED indicator that flashes with the output signal
- Compact size: 31mm × 22mm (1.2" × 0.9")
📊 Specifications
| Parameter | Value |
|---|---|
|
Main IC
|
NE555 Timer
|
|
Board Dimensions
|
31mm × 22mm (1.2" × 0.9")
|
|
Input Voltage (VCC)
|
5V – 15V DC
|
|
Input Current
|
~15 mA at 5V; ~35 mA at 12V
|
|
Output Amplitude
|
~4.2V peak-to-peak (at 5V VCC) to ~11.4V peak-to-peak (at 12V VCC)
|
|
Maximum Output Current
|
~15 mA (VCC = 5V); ~35 mA (VCC = 12V)
|
|
Frequency Range
|
~1 Hz to >200 kHz (jumper-selectable)
|
|
Potentiometers
|
2× multi-turn (RA and RB), 0–10 kΩ each
|
|
Frequency Selection
|
4-position jumper header (selects timing capacitor)
|
|
Output Type
|
Square wave (TTL-compatible at 5V VCC)
|
|
LED Indicator
|
Yes — flashes with output frequency
|
🔌 Module Layout and Pinout
The module has the following connections and controls:
Pin Connections
| Pin | Function | Description |
|---|---|---|
|
VCC
|
Power Input (+)
|
Connect to 5V–15V DC positive supply
|
|
GND
|
Ground (−)
|
Connect to DC supply ground / common
|
|
OUT
|
Signal Output
|
Square wave output signal
|
Onboard Controls
- Potentiometer RA — Adjusts the HIGH time of the output waveform (affects both frequency and duty cycle)
- Potentiometer RB — Adjusts the LOW time of the output waveform (affects both frequency and duty cycle)
- Jumper Block (JP) — 4-row × 2-pin header that selects the timing capacitor to set the frequency range
NE555 Pulse Generator Module Pinout and Jumper Settings
⏱️ Understanding Frequency and Duty Cycle
Before configuring the module, it helps to understand two key concepts:
Frequency
Frequency is how many complete cycles the square wave produces per second, measured in Hertz (Hz). A 1 kHz signal completes 1,000 cycles per second. This module can produce frequencies from about 1 Hz (one cycle per second — visible as a slow LED blink) to over 200 kHz.
Duty Cycle
Duty cycle is the percentage of each cycle that the output is HIGH versus LOW. For example:
- 50% duty cycle — output is HIGH half the time and LOW half the time (symmetric square wave)
- 75% duty cycle — output is HIGH for 75% of each cycle and LOW for 25%
- 25% duty cycle — output is HIGH for 25% of each cycle and LOW for 75%
Duty cycle matters in applications like motor speed control (where it determines average power delivered), LED dimming, and PWM signaling.
Important: On this module, frequency and duty cycle are not independently adjustable. Both potentiometers (RA and RB) affect both parameters simultaneously. This is inherent to the NE555 astable circuit design. Adjusting the duty cycle will change the frequency, and vice versa. Fine-tuning requires iterating between both potentiometers to reach your desired combination.
🔄 How the NE555 Astable Circuit Works
The NE555 timer on this module is configured in astable mode, meaning it oscillates continuously without any external trigger. The output alternates between HIGH and LOW states, producing a square wave.
The timing is controlled by two resistors (the potentiometers RA and RB) and a capacitor (selected by the jumper). The NE555 charges the timing capacitor through RA + RB, then discharges it through RB alone. This charge/discharge cycle creates the square wave output.
Timing Formulas
The output timing is governed by these relationships:
| Parameter | Formula |
|---|---|
|
HIGH time (t₁)
|
t₁ = 0.693 × (RA + RB) × C
|
|
LOW time (t₂)
|
t₂ = 0.693 × RB × C
|
|
Period (T)
|
T = t₁ + t₂ = 0.693 × (RA + 2×RB) × C
|
|
Frequency (f)
|
f = 1.44 / ((RA + 2×RB) × C)
|
|
Duty Cycle
|
D = (RA + RB) / (RA + 2×RB) × 100%
|
Where:
- RA = Resistance of potentiometer RA (0 to 10 kΩ)
- RB = Resistance of potentiometer RB (0 to 10 kΩ)
- C = Timing capacitor value (selected by jumper position)
⚙️ Jumper Settings and Frequency Ranges
The 4-position jumper block selects different timing capacitors to set the approximate frequency range. The multi-turn potentiometer near the jumper block provides fine control within the selected range.
| Jumper Position | Capacitor Value | Approximate Frequency Range |
|---|---|---|
|
Position 1
|
100 µF
|
~1 Hz to ~50 Hz
|
|
Position 2
|
1 µF
|
~50 Hz to ~5 kHz
|
|
Position 3
|
0.1 µF (100 nF)
|
~500 Hz to ~50 kHz
|
|
Position 4
|
0.001 µF (1 nF)
|
~50 kHz to >200 kHz
|
Note: The exact frequency ranges will vary between individual modules due to component tolerances. The ranges listed above are approximate and represent typical values. Your module may differ slightly.
How to Set the Jumper
- Remove the jumper from its current position
- Place the jumper across the two pins of the desired frequency range row
- Only one jumper position should be connected at a time
- Use the multi-turn potentiometer to fine-tune the frequency within the selected range
🔧 Step-by-Step Setup Guide
Step 1: Connect Power
- Connect your DC power supply positive (+) terminal to the VCC pin
- Connect the power supply negative (−) terminal to the GND pin
- Ensure your supply voltage is between 5V and 15V DC
⚠️ Warning: Do not exceed 15V input or reverse the polarity. Either condition can permanently damage the NE555 IC.
Step 2: Select the Frequency Range
- Determine the approximate frequency you need for your application
- Refer to the jumper settings table above
- Place the jumper on the appropriate position
Step 3: Fine-Tune the Frequency
- Connect an oscilloscope, frequency counter, or multimeter with frequency measurement to the OUT pin
- Adjust the multi-turn potentiometer near the jumper block to dial in your target frequency
- If you don't have test equipment, you can use the LED indicator for low frequencies (below ~30 Hz) — count the blinks per second
Step 4: Adjust the Duty Cycle
- Adjust potentiometer RA to change the HIGH time of the output
- Adjust potentiometer RB to change the LOW time of the output
- Remember that changing either potentiometer will also affect the frequency — you may need to iterate between frequency and duty cycle adjustments
Step 5: Connect the Output
- Connect the OUT pin to your target circuit
- Connect the module's GND to your target circuit's ground (common ground is essential)
- The output amplitude will be approximately VCC minus about 1V (e.g., ~4.2V output at 5V VCC)
✅ LED Indicator Behavior
The onboard LED provides a visual indication of the output signal:
| Frequency Range | LED Behavior |
|---|---|
|
Below ~1 Hz
|
Slow, clearly visible blink
|
|
1 Hz – 30 Hz
|
Visible flashing at increasing speed
|
|
Above ~30 Hz
|
Appears to be continuously ON (flashing too fast for the eye to perceive)
|
The LED illuminates when the output is LOW and turns off when the output is HIGH. This is normal — the LED is connected between VCC and the output pin, so it lights when the output pulls low.
🛠️ Common Applications
Stepper Motor Driver Clock
Use the module to generate step pulses for stepper motor driver boards (such as the A4988 or DRV8825). Adjust the frequency to control motor speed.
PWM Motor Speed Control
The adjustable duty cycle allows basic PWM control of DC motors through a MOSFET or motor driver. Higher duty cycle = more average power = faster speed.
LED Dimming
Connect the output through a current-limiting resistor to an LED. Adjust the duty cycle to control perceived brightness.
Microcontroller Clock / Test Signal
Use as an external clock source or test signal for microcontroller projects. Useful for testing interrupt handlers, timing routines, or serial communication.
Audio Tone Generator
In the audible frequency range (~20 Hz to ~20 kHz), the module can produce simple square wave tones for buzzers or speakers (through an appropriate amplifier).
Circuit Testing and Prototyping
Generate known-frequency signals for testing filters, amplifiers, counters, and other circuits on the workbench.
🔍 Troubleshooting
| Symptom | Possible Cause | Solution |
|---|---|---|
|
No output, LED off
|
No power or reversed polarity
|
Check VCC/GND connections and supply voltage
|
|
LED on solid, no blinking
|
Frequency too high to see blinking
|
Normal above ~30 Hz — use a scope or frequency counter to verify output
|
|
Frequency doesn't match expected range
|
Component tolerances
|
Normal — ranges are approximate. Adjust potentiometer or try adjacent jumper position
|
|
Output frequency drifts
|
Temperature changes or unstable power supply
|
Use a regulated power supply; allow module to warm up for stable readings
|
|
Cannot reach desired duty cycle
|
NE555 astable limitation
|
In standard astable mode, duty cycle cannot go below ~50%. This is a fundamental limitation of the NE555 circuit. The minimum duty cycle is limited by the RA resistance path
|
|
Output amplitude too low
|
VCC too low
|
Increase supply voltage (up to 15V max). Output amplitude is approximately VCC − 1.5V
|
|
Erratic output
|
Poor connections or noise
|
Use short, solid connections; add a 0.1 µF bypass capacitor across VCC and GND near the module if not already present
|
⚠️ Important Notes and Limitations
- Duty cycle and frequency are interdependent. You cannot adjust one without affecting the other. This is a fundamental characteristic of the NE555 astable circuit, not a defect of the module.
- Minimum duty cycle is approximately 50%. In the standard NE555 astable configuration, the HIGH time is always at least as long as the LOW time because the capacitor charges through RA + RB but discharges only through RB. To achieve duty cycles below 50%, an external diode modification would be required (not present on this module).
- Output is not buffered. The NE555 output can source or sink approximately 200 mA in short bursts, but the module's traces and components limit practical continuous output current to approximately 15–35 mA depending on VCC. For driving higher-current loads, use the output to drive a transistor or MOSFET.
- Not precision-grade. This module is intended for prototyping, experimentation, and applications where approximate frequency and duty cycle are acceptable. For precision timing applications, consider a microcontroller-based PWM generator or a dedicated function generator IC.
- Frequency stability depends on supply voltage stability and ambient temperature. For best results, use a regulated DC power supply.
📘 Module Schematic
NE-555 Square Wave Pulse Generator Module Schematic
The schematic shows the standard NE555 astable configuration with the addition of the 4-position capacitor selection jumper and dual potentiometers for frequency and duty cycle adjustment.
🛒 Buy the NE555 Pulse Frequency Square Wave Signal Generator Module
NE555 Pulse Frequency Square Wave Signal Generator Module (1 Piece) →
NE555 Pulse Frequency Square Wave Signal Generator Module (2 Pieces) →
📘 Resources & Downloads
- NE555 Datasheet: NE555P Precision Timer IC Datasheet (PDF)
- 555 Timer Calculator: Online calculators are available to compute frequency and duty cycle for given RA, RB, and C values — search for "555 astable calculator"
