📋 Overview

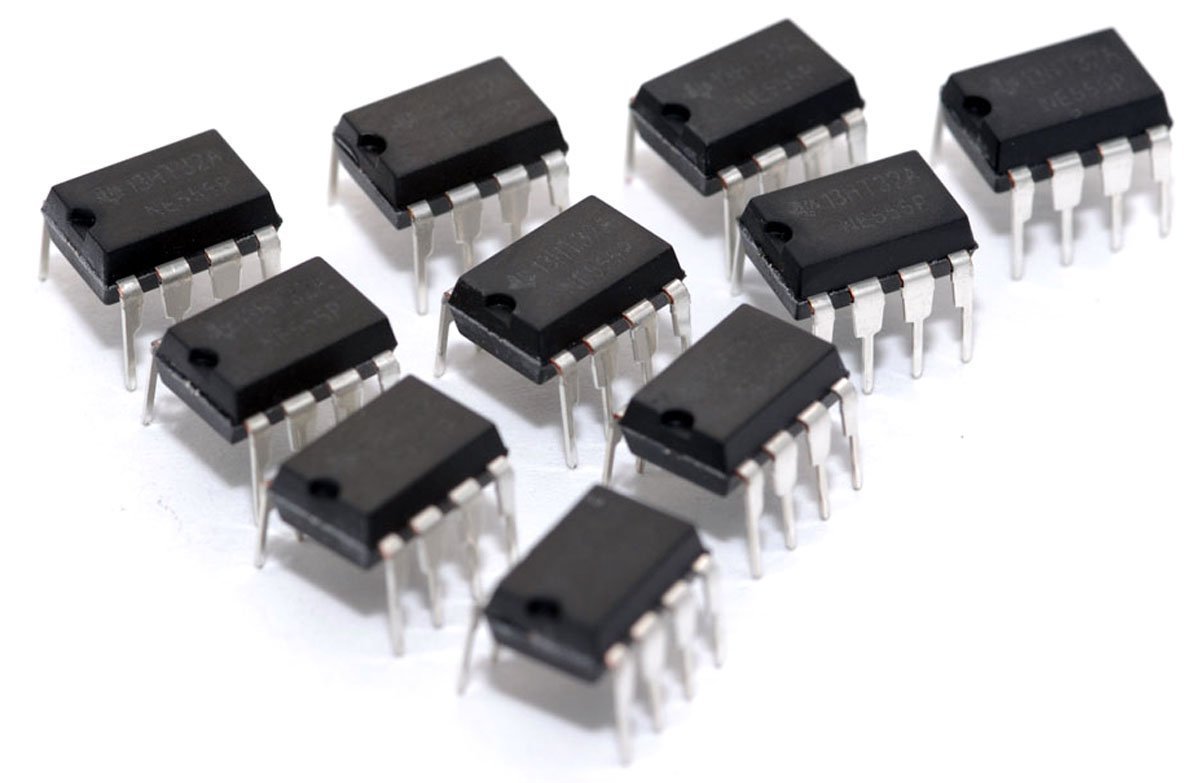

The NE555P is Texas Instruments' classic precision timer IC in a DIP-8 through-hole package. First introduced in 1973 and still going strong, the 555 is one of the most widely used integrated circuits ever made. It can generate accurate time delays (monostable mode) or free-running oscillations (astable mode) using just a handful of external resistors and capacitors.
Whether you're blinking an LED, generating a tone, building a pulse-width modulation (PWM) circuit, or creating a timed relay driver, the NE555P is a reliable and affordable building block. It operates from 4.5 V to 16 V, and its output can sink or source up to 200 mA — enough to directly drive LEDs, small relays, and TTL logic.
Note: The NE555P is a ubiquitous, well-documented part. This guide provides a practical overview. For full electrical specifications, characteristic curves, and detailed application circuits, refer to the official TI datasheet (PDF).
⭐ Key Features
- Flexible Timing: Generates delays or oscillations from microseconds to hours
- Two Operating Modes: Monostable (one-shot) and astable (free-running)
- Adjustable Duty Cycle: Independent control of high and low output times in astable mode
- High Output Current: Can sink or source up to 200 mA
- TTL Compatible: Output is directly compatible with TTL logic at 5 V supply
- Wide Supply Range: Operates from 4.5 V to 16 V
- Timing Independent of Supply: Timing intervals are set by external R and C values, not supply voltage
- Active-Low Reset: Dedicated RESET pin can override all other inputs
📌 Pinout
The NE555P uses a standard 8-pin DIP package. Here is the pin assignment:
| Pin | Name | I/O | Description |
|---|---|---|---|
| 1 | GND | — | Ground (0 V reference) |
| 2 | TRIG | Input | Trigger input — starts timing when pulled below 1/3 VCC |
| 3 | OUT | Output | Timer output — goes high or low depending on mode |
| 4 | RESET | Input | Active-low reset — forces output and discharge low. Tie to VCC if not used. |
| 5 | CONT | I/O | Control voltage — outputs 2/3 VCC. Bypass to GND with 10 nF capacitor for noise immunity. |
| 6 | THRES | Input | Threshold input — ends timing when voltage exceeds 2/3 VCC |
| 7 | DISCH | Output | Discharge — open-collector output that discharges the timing capacitor |
| 8 | VCC | — | Supply voltage: 4.5 V to 16 V |
Tip: Pin 1 (GND) is at the bottom-left when the notch or dot on the IC package faces up. Always double-check orientation before powering up — inserting the chip backwards can destroy it.
🛠️ How It Works
Inside the NE555P, a voltage divider made of three equal resistors sets two internal reference voltages: 1/3 VCC and 2/3 VCC. Two comparators monitor the TRIG and THRES pins against these references, and their outputs control an internal flip-flop that drives the OUT pin and the DISCH transistor.
Monostable Mode (One-Shot Timer)
In monostable mode, the 555 produces a single output pulse of a defined duration each time it receives a trigger. The circuit requires just one resistor (RA) and one capacitor (C).
How it works: When TRIG drops below 1/3 VCC, the output goes high and capacitor C begins charging through RA. When the voltage on C reaches 2/3 VCC, the output goes low and C is discharged through the internal DISCH transistor. The output pulse width is:
tw = 1.1 × RA × C
For example, with RA = 10 kΩ and C = 100 µF, the pulse width is approximately 1.1 seconds.
Astable Mode (Free-Running Oscillator)
In astable mode, the 555 runs continuously, producing a square wave output. The circuit uses two resistors (RA and RB) and one capacitor (C). The TRIG and THRES pins are connected together so the timer self-triggers.
How it works: Capacitor C charges through RA + RB (output high), then discharges through RB only (output low). This cycle repeats indefinitely.
Key formulas:
- High time: tH = 0.693 × (RA + RB) × C
- Low time: tL = 0.693 × RB × C
- Period: T = 0.693 × (RA + 2RB) × C
- Frequency: f = 1.44 / ((RA + 2RB) × C)
- Duty Cycle: D = (RA + RB) / (RA + 2RB)
Note: In the standard astable configuration, the duty cycle is always greater than 50% because the charge path includes both RA and RB. To achieve a 50% or lower duty cycle, you can place a diode across RB to bypass it during charging. See the TI datasheet for details.
📊 Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Texas Instruments (TI) |
| Part Number | NE555P |
| Package | PDIP-8 (DIP-8 through-hole) |
| Supply Voltage (VCC) | 4.5 V to 16 V |
| Output Current (Sink/Source) | ±200 mA max |
| Timing Range | Microseconds to hours |
| Timing Accuracy (Initial Error) | 1% monostable / 2.25% astable (typical) |
| Temperature Coefficient | 50 ppm/°C (typical, monostable) |
| Supply Current (No Load) | 3–6 mA at 5 V / 10–15 mA at 15 V |
| Output Rise/Fall Time | 100–300 ns (typical) |
| Operating Temperature | 0°C to 70°C |
| Package Dimensions | Approx. 9.81 × 6.35 mm (0.39 × 0.25 inches) |
Tip: For the complete electrical characteristics, absolute maximum ratings, and characteristic curves, refer to the TI NE555 datasheet.
🎯 Typical Applications
- LED Flasher / Blinker: Astable mode with appropriate R and C values
- Tone Generator / Buzzer Driver: Astable mode at audio frequencies (20 Hz – 20 kHz)
- Pulse-Width Modulation (PWM): Varying the duty cycle to control motor speed or LED brightness
- Debounce Circuit: Monostable mode to clean up noisy switch contacts
- Timed Relay Driver: Monostable mode to activate a relay for a set duration
- Missing Pulse Detector: Monostable mode that resets on each incoming pulse
- Frequency Divider: Monostable mode triggered by an input clock
- RFID Readers and Biometric Sensors: Precision timing for sensor interfaces
💡 Tips & Best Practices
- Bypass the Control Voltage Pin: Always connect a 10 nF (0.01 µF) ceramic capacitor from pin 5 (CONT) to ground. This filters noise and improves timing stability.
- Bypass the Supply: Place a 100 nF (0.1 µF) ceramic capacitor as close as possible between VCC (pin 8) and GND (pin 1) to decouple the power supply.
- Tie RESET High: If you're not using the RESET function, connect pin 4 directly to VCC. Leaving it floating can cause erratic behavior.
- Resistor Limits: Keep the total timing resistance (RA + RB) below about 3.4 MΩ at 5 V or 10 MΩ at 15 V. Higher values cause timing errors due to the THRES input current.
- Output Loading: The 555 can source or sink 200 mA, but high output currents increase power dissipation and heat. Use a transistor or MOSFET to switch heavier loads.
- Inductive Loads: When driving relays, solenoids, or motors, always use a flyback diode (e.g., 1N4148 or 1N4007) across the load to protect the IC from voltage spikes.
- Breadboard Friendly: The DIP-8 package plugs directly into standard solderless breadboards and perfboard with 0.1" (2.54 mm) pitch.
⚠️ Important Notes
- Maximum Supply Voltage: Do not exceed 16 V on VCC for the NE555P. Exceeding this can permanently damage the IC.
- Input Voltage Limit: Voltages on CONT, RESET, THRES, and TRIG must not exceed VCC.
- Static Sensitivity: While the NE555P is relatively robust, follow standard ESD handling precautions — avoid touching the pins, and use an anti-static wrist strap when possible.
- Not a Low-Power Part: The NE555P draws several milliamps of quiescent current. For battery-powered applications where current consumption matters, consider the CMOS version (TLC555 or ICM7555) which draws only microamps.
- 555 Family Variants: The NE555P is the commercial-grade version (0°C to 70°C). Other variants in the TI family include the SA555 (–40°C to 85°C) and SE555 (–55°C to 125°C, up to 18 V).
🏪 Where to Buy the NE555P Timer IC
The NE555P Timer IC is available from Envistia Mall.
- 📦 Fast US Shipping
- 🔄 Hassle-Free Returns
- 📧 Responsive Customer Support
📚 Resources & Downloads
- TI NE555 Datasheet (PDF): xx555 Precision Timers — Texas Instruments
- TI NE555 Product Page: NE555 — TI.com
- 555 Timer Tutorial: 555 Timer — Electronics Tutorials
