KBPC5010 1000V 50A Diode Bridge Rectifier User Guide

KBPC5010 100V 50a Bridge Rectifier

Introduction

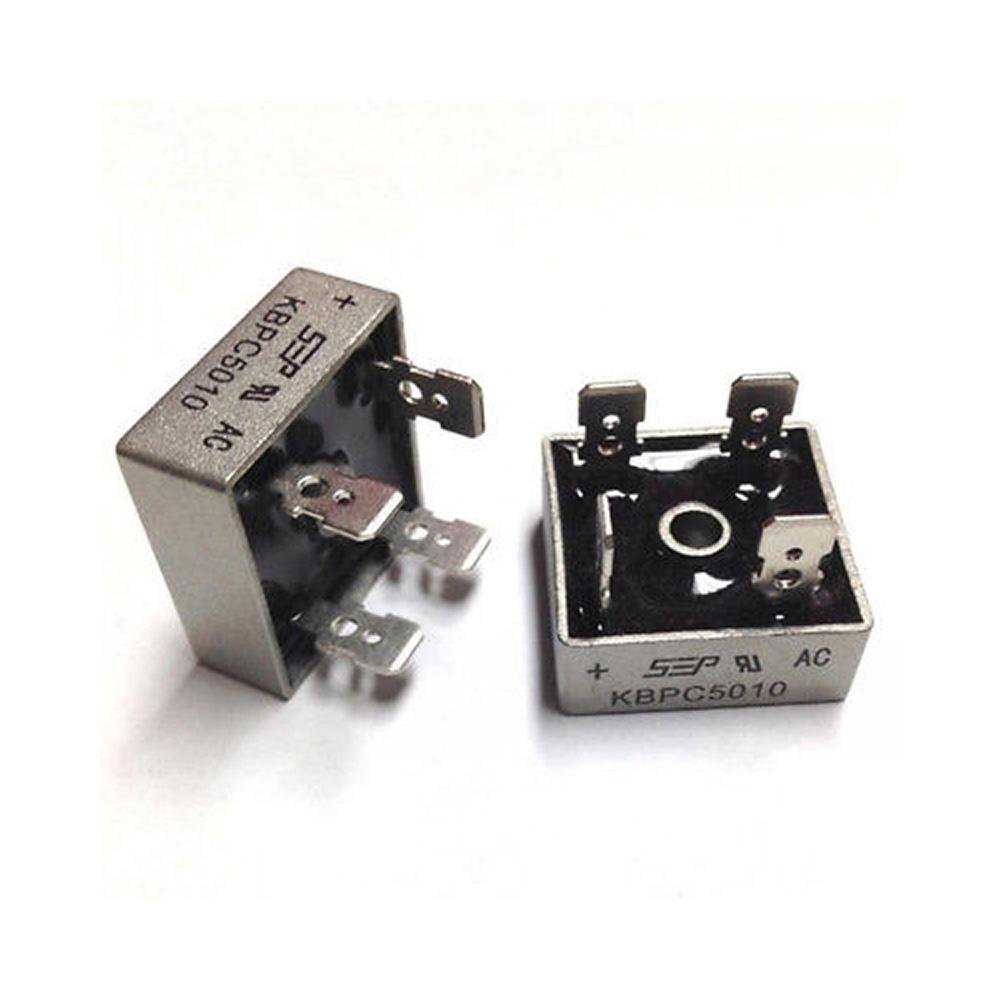

The KBPC5010 is a single-phase full bridge rectifier with a high surge current capability and an electrically isolated metal case for efficient heat dissipation. It is designed to convert AC voltage into DC voltage.

To rectify both half-cycles of a sine wave, the KBPC5010 full bridge rectifier uses four diodes, connected together in a “bridge” configuration. The secondary winding of the transformer is connected on one side of the diode bridge network and the load on the other side. The image below shows the bridge rectifier circuit, and the resulting input and output voltage waveforms. To smooth the resulting pulsating DC current use a filter, most often a high-capacity capacitor, connected to the output.

KBPC5010 Bridge Rectifier Schematic and Example AC Input and Rectified Output Voltage Waveforms
KBPC5010 Bridge Rectifier Schematic and Example AC Input and Rectified Output Voltage Waveforms

Features

  • High Voltage and Current: 1000V maximum repetitive peak reverse voltage and 50A maximum average forward rectified output current.
  • UL Listed: UL listed under the Recognized Component Index, file number E142814.
  • Flammability Rating: The plastic material used carries Underwriters Laboratory flammability recognition 94V-0.
  • High Surge Current: Surge overload rating of 400A.
  • Electrically Isolated Metal Case: Provides maximum heat dissipation and allows for easy mounting.
  • Isolation Voltage: Case to terminal isolation voltage of 2500V.
  • Universal Terminals: Universal 4-way terminals, snap-on, wrap-around, solder or P.C. Board mounting

Electrical Specifications

Parameter Symbol Value Unit
Maximum Repetitive Peak Reverse Voltage VRRM 1000 V
Maximum RMS Bridge Input Voltage VRMS 700 V
Maximum DC Blocking Voltage VDC 1000 V
Maximum Average Forward Rectified Output Current at TA=40°C IF(AV) 50 A
Peak Forward Surge Current (Single Sine-Wave Superimposed on Rated Load) IFSM 400 A
Typical Thermal Resistance per Element ReJA 2.5 °C/W
Operating Junction and Storage Temperature Range Tj, TSTG -55 to +150 °C
Maximum Instantaneous Forward Voltage Drop per Leg at 25A VF 1.0 V
Maximum DC Reverse Current at Rated TA=25°C IR 10 uA
DC Blocking Voltage per Element at TA=125°C IR 500 uA

Pinout and Mechanical Specifications

KBPC5010 1000V 50A Metal Case Single Phase Diode Bridge Rectifier - Envistia Mall
KBPC5010 1000V 50A Metal Case Single Phase Diode Bridge Rectifier - Envistia Mall

Mounting

  1. Safety First: Ensure the power is off before beginning installation.
  2. Thermal Compound: Apply a thin, even layer of silicone thermal compound between the metal case of the rectifier and the mounting surface. This is crucial for efficient heat transfer.
  3. Mounting: Bolt the rectifier to the mounting surface using a screw through the center hole.
  4. Torque: Tighten the mounting screw to a maximum torque of 20 in-lb. Over-tightening can damage the device.

Wiring

The KBPC5010 has four terminals: two for AC input and two for DC output. The terminals are typically marked with symbols:

  • ~ (AC): Connect the AC input voltage to these terminals.
  • + (DC): Connect the positive DC output to this terminal.
  • – (DC): Connect the negative DC output (ground) to this terminal.

Important: Verify the polarity of the DC output before connecting to your load. Incorrect polarity can damage the load.


Operating Conditions

Current: Do not exceed the maximum average forward rectified output current

Temperature: Ensure the operating temperature remains within the specified range of -55°C to +150°C.
