10W LED Warm White 3000-3500K Super Bright High Power SMD COB Light Emitting Diodes 1-10 Pieces

  • $1.89


This powerful super-bright 10W LED array provides 800-900 Lumen output at 3000-3500 Kelvin (warm white). It is suitable for illumination, beacons, strobes and DIY hobbyist projects.

Specifications:

  • Color: Warm White
  • Color Temperature: 3000-3500K
  • Forward Voltage (VF): 9-12VDC
  • Maximum Forward Current (IF): 900ma
  • Output Lumens: 800-900 Lumens
  • Chip Size: 24 x 40 MIL, 3 in series x 3 in parallel
  • Life span: >50,000 hours
  • Mounting holes: 2.5mm (M2.5 screws can be used)
  • Package Dimensions (approximate): 20mm x 20mm excluding electrical connection tabs, 20mm x 28mm including tabs

Package includes:

10W Warm White 3000-3500K LED Chip Array (1, 5 or 10 piece package)

All devices 100% tested at IF=900mA, VF=10V in our US office and static bagged prior to shipment.

NOTE: When operated in continuous mode, this LED requires a heatsink capable of dissipating 10W. Heatsink is not included.

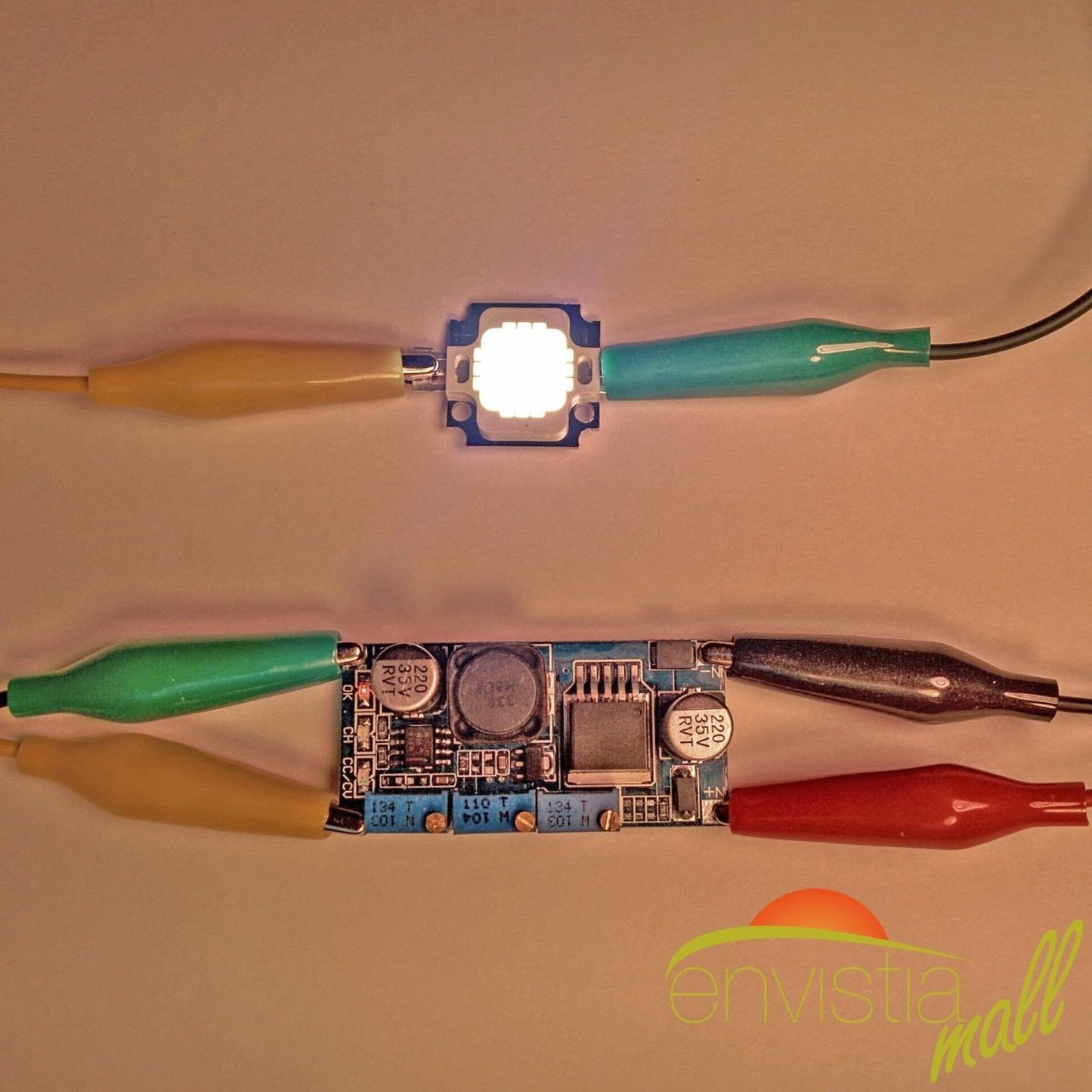

This 10W LED can be driven with our LM2596 LED Driver CC/CV 3A Step-down Adjustable DC-DC Power Regulator Module.
