3mm UV / Purple LED – 515-520nm Clear Transparent (10/25/50/100 Pack)
3mm UV / Purple LED – 515-520nm Clear Transparent (10/25/50/100 Pack)
Couldn't load pickup availability
📋 Overview

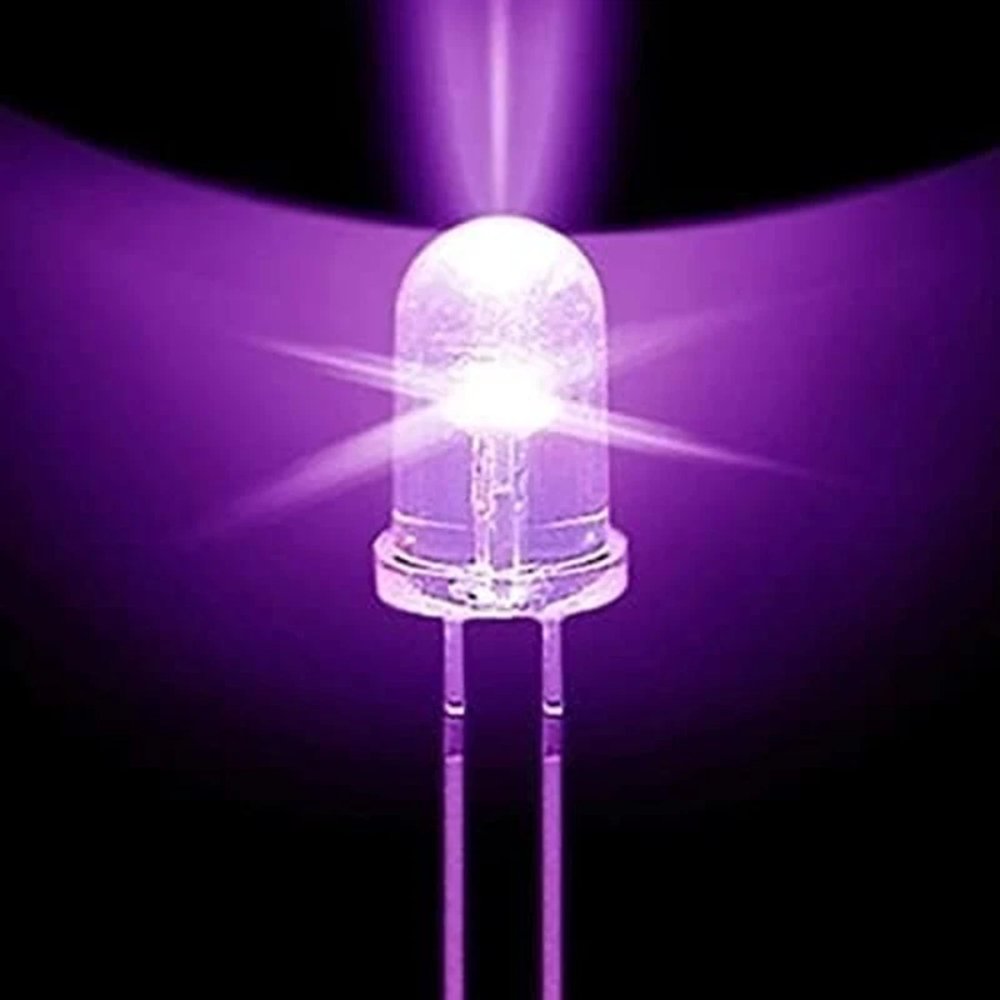

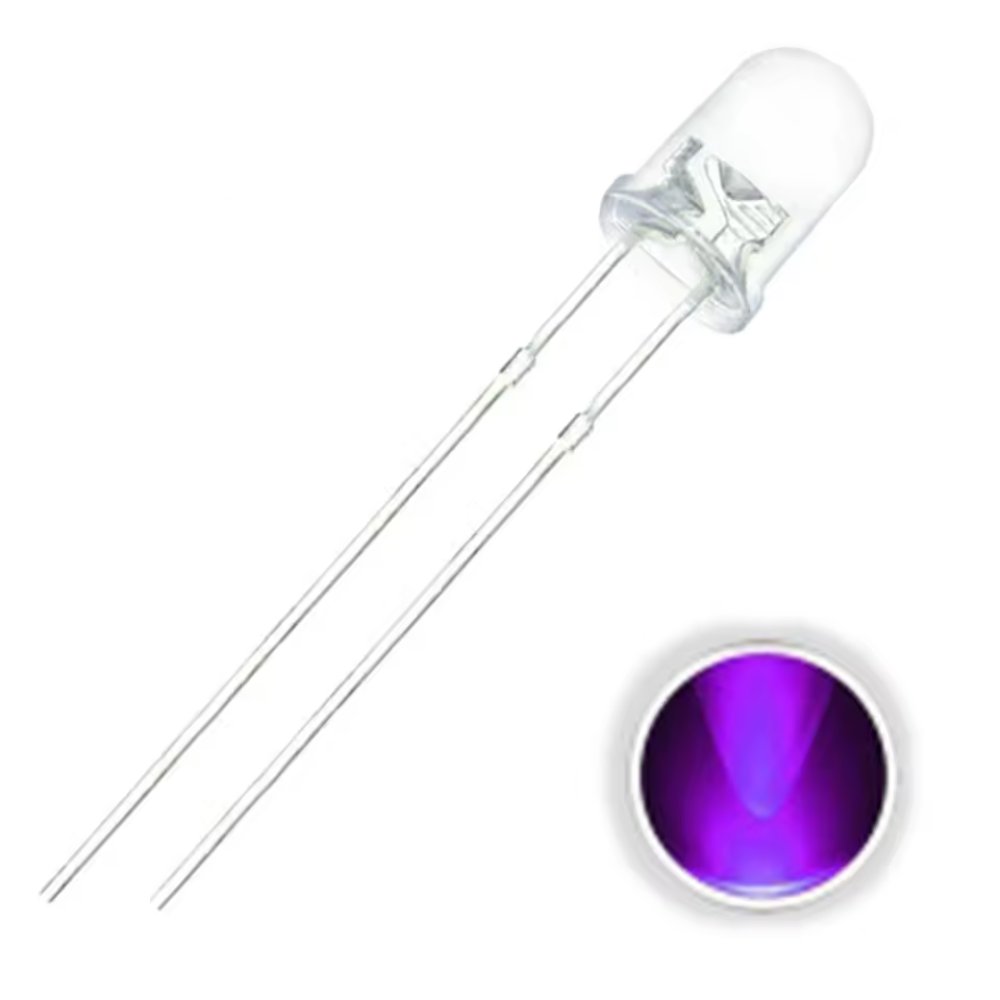

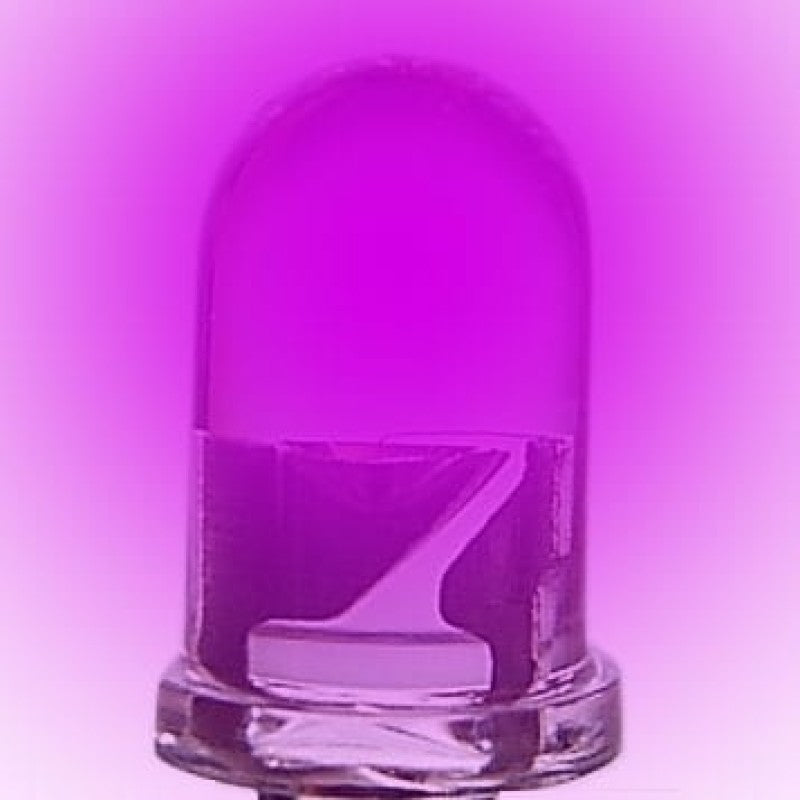

These 3mm UV/Purple LEDs (390–410nm) emit near-ultraviolet (UV-A) light through a clear transparent lens — great for blacklight effects, fluorescence detection, and indicator applications. With a 30° viewing angle and standard 20mA drive current, they're an easy drop-in for any breadboard or through-hole PCB project, whether you're just getting started with electronics or building out a full production run.
⭐ Key Features
- Near-UV / purple emitting color (390–410nm, UV-A range)
- 30° viewing angle (50% power angle)
- Clear (water-clear transparent) lens package
- Standard 2.54mm pin spacing — fits breadboards and perfboard directly
- Low forward current draw (20mA) for efficient, long-lasting use
- Available in convenient 10, 25, 50, and 100-piece packs
🎯 Applications
- Blacklight/novelty lighting effects for parties, displays, and hobby projects
- Fluorescence detection — making fluorescent inks, dyes, minerals, and phosphorescent materials glow
- Counterfeit currency and document verification indicators (spotting UV security features)
- Science and educational demonstrations of UV fluorescence
- Indicator lighting for UV sensor testing and calibration setups
⚠️ Please Note
This is a low-power (300–500 mcd) indicator-level UV LED — not a curing lamp or high-output UV flashlight emitter. It's best suited for small-scale fluorescence and detection effects rather than illumination.
📊 Specifications
| Spec | Value |
|---|---|
| LED Size | 3mm (0.12 inches) |
| Emitting Color | UV / Purple (390–410nm) |
| Lens/Package | Clear (Transparent) |
| Pin Spacing | 2.54mm (0.1 inches) |
| Forward Voltage | 3.0–3.2V |
| Forward Current | 20mA |
| Viewing Angle | 30° (50% power angle) |
| Luminous Intensity | 300–500 mcd |
| Lead Length | Approx. 19mm (3/4 inch) |
| Polarity | Anode (+): Long Lead | Cathode (−): Short Lead |
📦 What's in the Box
Choose your package size at checkout — 10, 25, 50, or 100 pieces of the 3mm UV/Purple LED, Clear (Transparent) lens.
💡 Tips
Always use a current-limiting resistor with this LED — running it directly off a battery or supply voltage above 3.2V without one can burn it out almost instantly. For a typical 5V supply, a 100–150Ω resistor works well at 20mA. As with any UV light source, avoid prolonged direct eye exposure.
Want to skip the resistor math entirely? Check out our 20mA LED Driver. It eliminates the need for current-limiting resistors and lets you drive a single LED or a series string of LEDs at various drive voltages.
