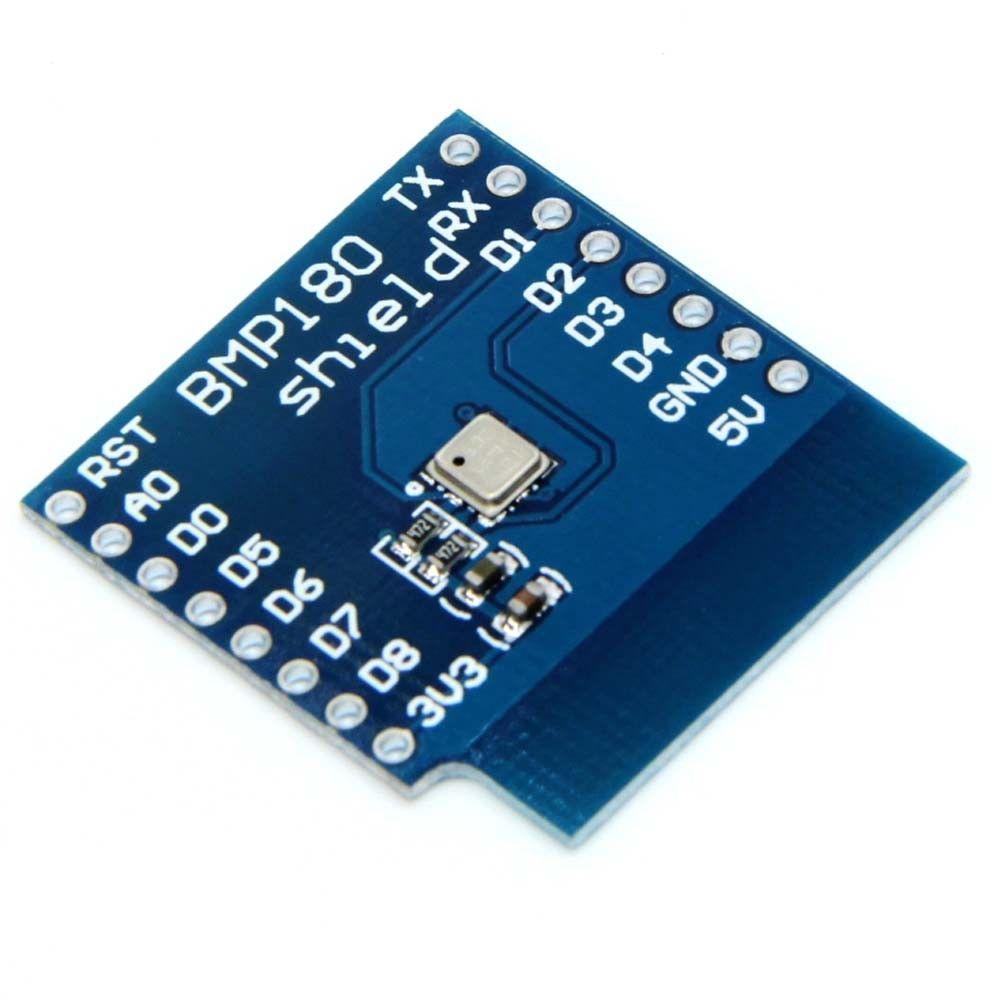

This BMP180 Digital Temperature and Barometric Pressure Sensor Shield for the D1 Mini allows for precise measurement of atmospheric pressure and temperature and can be connected over WiFi.
The BMP180 is a digital barometric pressure sensor of Bosch Sensortec, with a very high performance, which enables applications in advanced mobile devices and IoT. The ultra-low power consumption down to 3 μA makes the BMP180 the leader in power saving. This shield uses the Bosch BMP180 to measure barometric pressure and temperature from an I2C 3.3V WEMOS or WEMOS-compatible microcontroller.
Combined with a D1 Mini ESP8266 board, this information can be communicated via internet and be used to control a system.
Features and Specifications:
Pressure Range: 300 to 1100hPa (+9000m to -500m relating to sea level)
Voltage Range: 1.8..3.6V
All I/O are designed to be 3.3V compliant only.

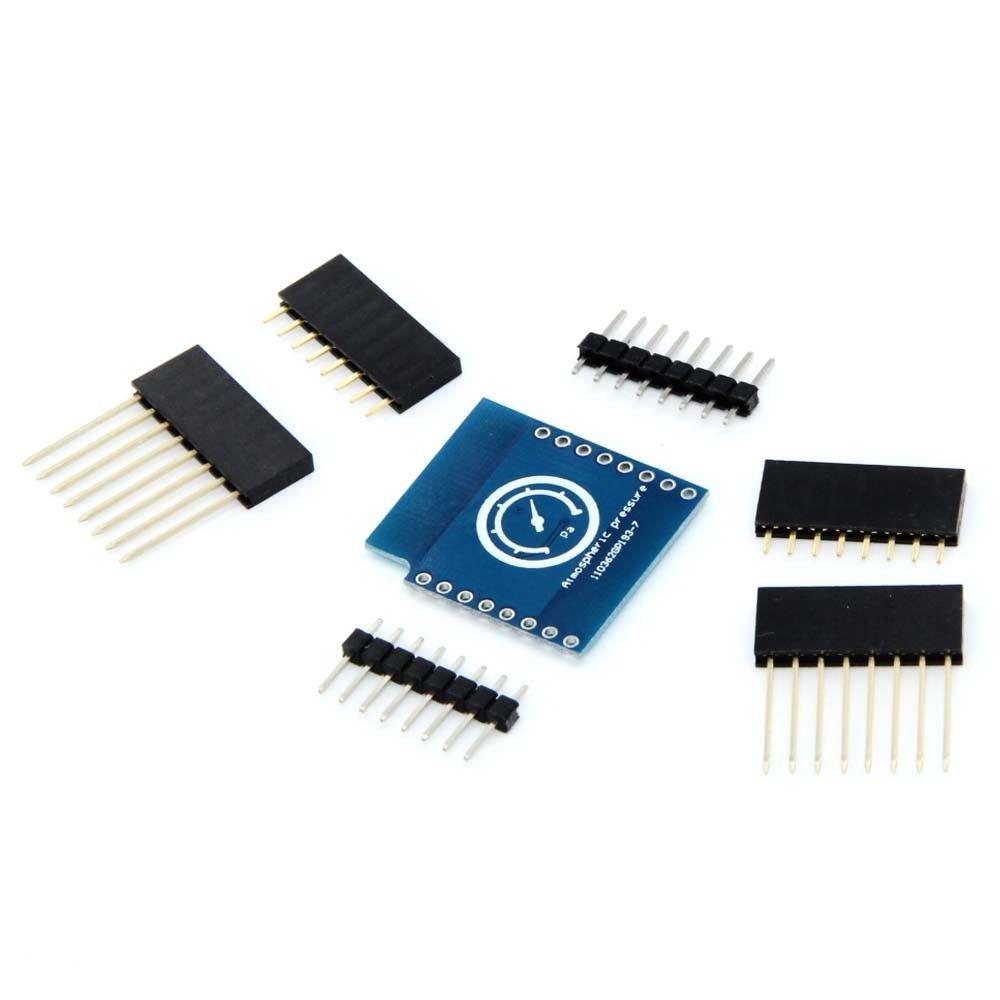

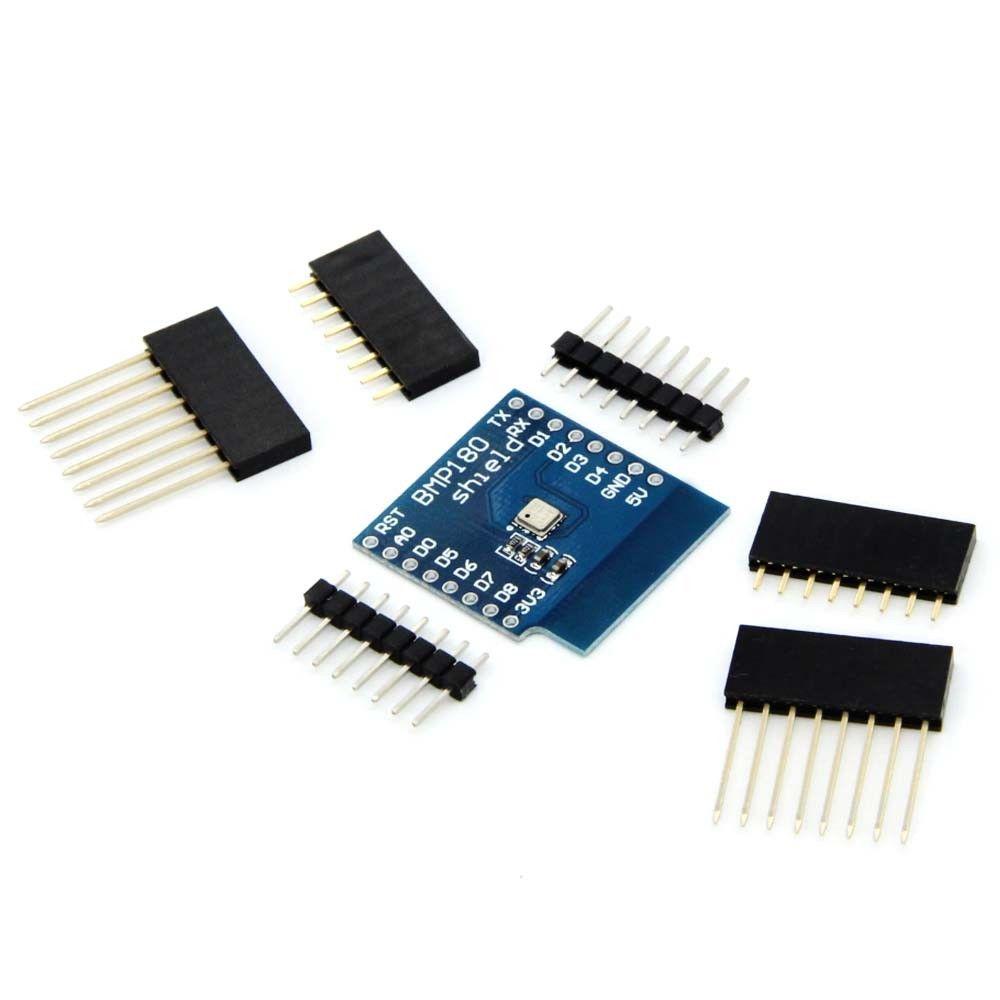

This D1 Mini shield comes with 3 different types of header connectors to support various configurations:
- Female/Male (long female)
Two each Female, Male, and Female/Male (long female) connectors
