D1 Mini NodeMCU and Arduino WiFi LUA ESP8266 ESP-12 WeMos Microcontroller

  • Sale
  • Regular price $6.29

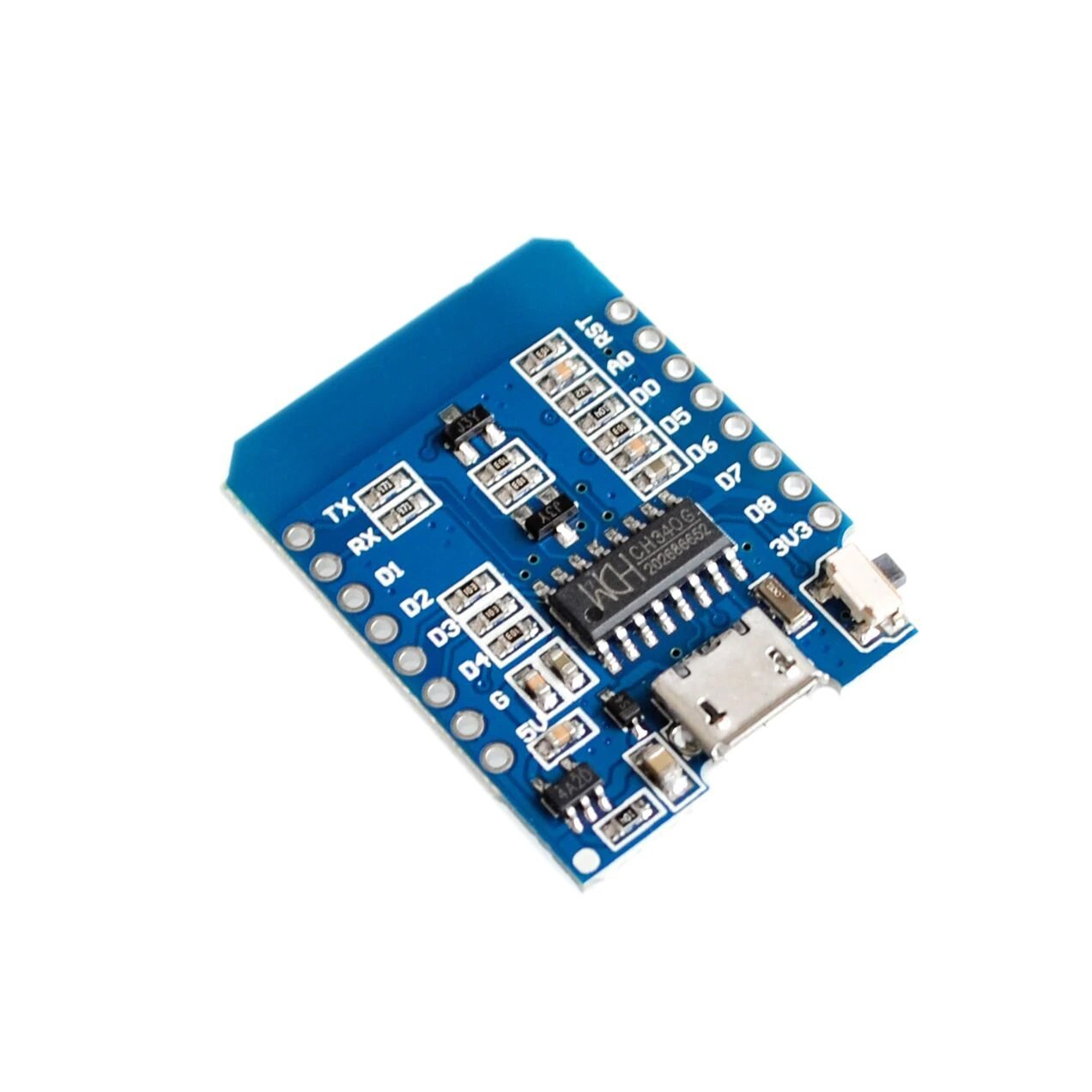

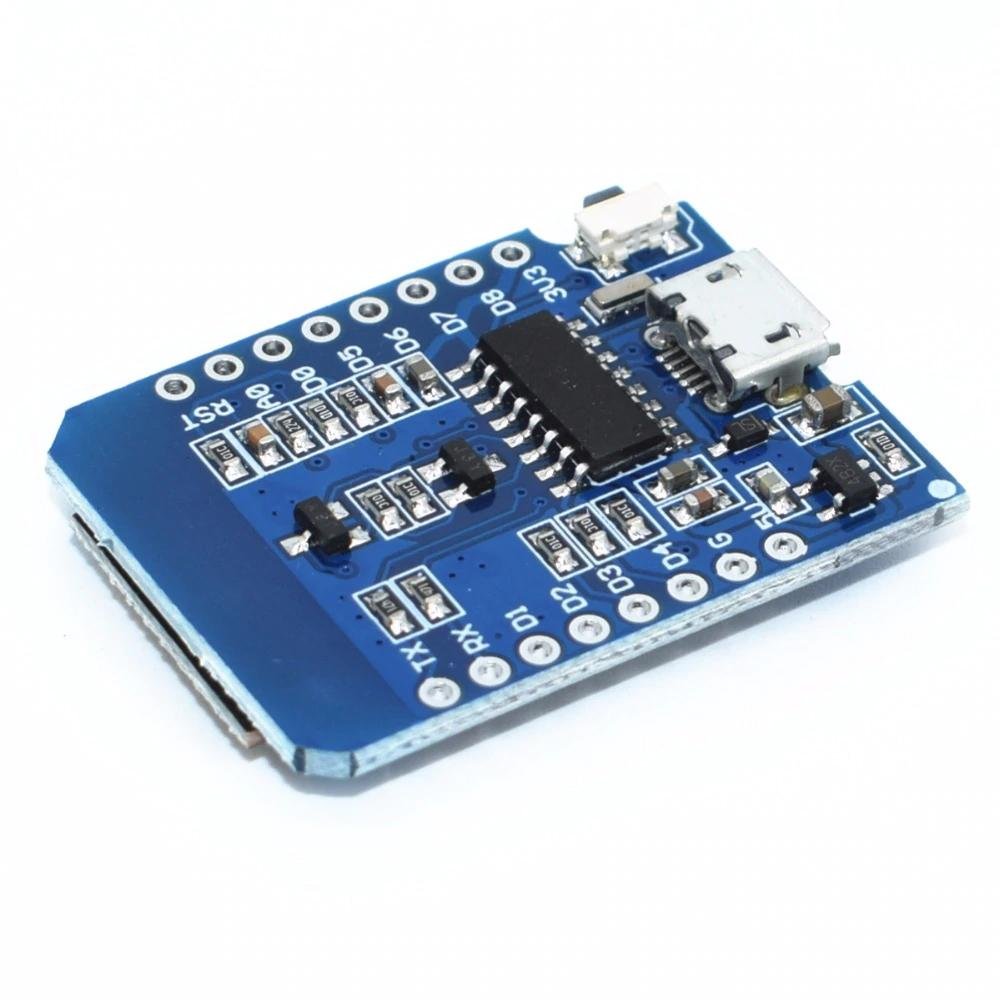

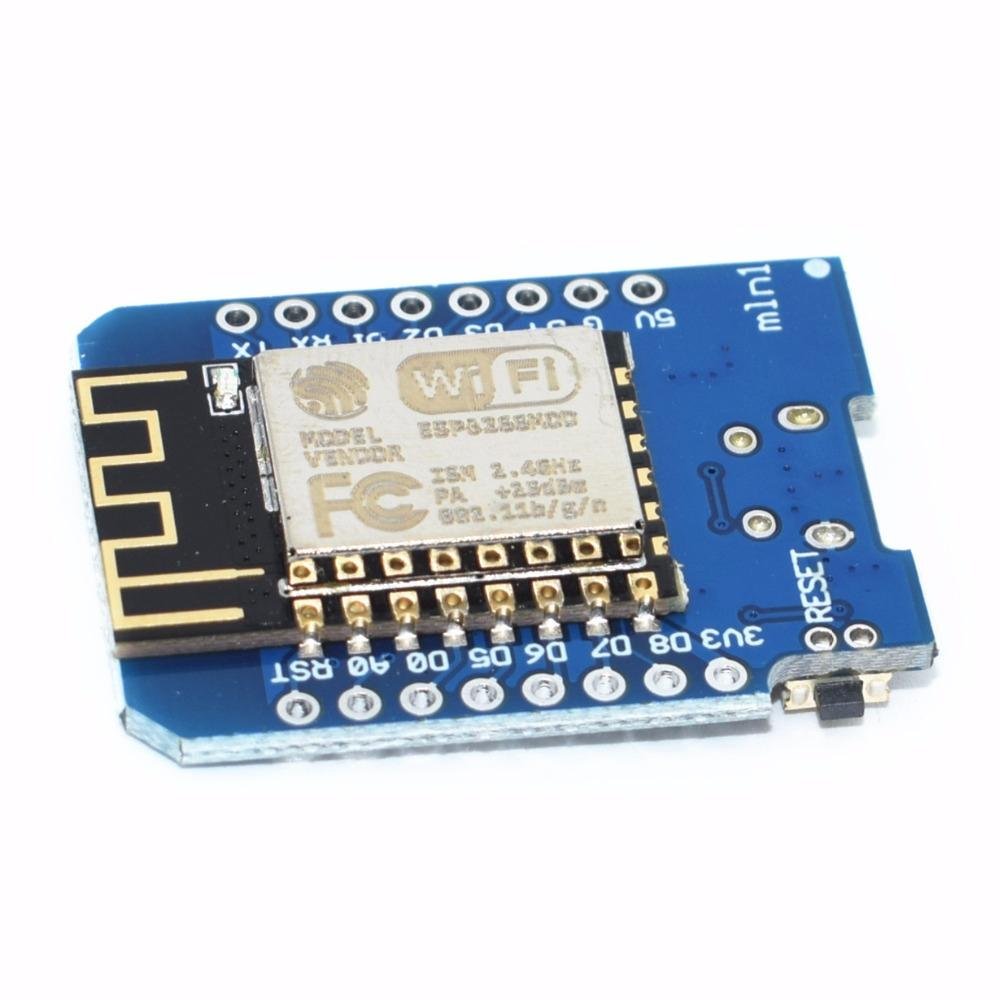

The WeMos-compatible D1 Mini is an Arduino compatible ESP8266EX-based microcontroller featuring 11 digital input/output pins, a single analog input pin.

It offers the convenience of a micro-USB connection for both power and data (running at 3.3V), and despite its size has built-in WiFi and 4MB of flash memory. It can be programmed with Arduino or LUA, and supports both serial and OTA programming.

Features and Specifications:

  • Microcontroller: ESP-8266EX
  • Operating Voltage: 3.3V Max (5V power from MicroUSB connector is internally converted to 3.3V)
  • Digital I/O Pins: 11, all pins have interrupt/PWMI2C/one-wire support except D0
  • Analog Input: 1 (3.2V max input)
  • Connector: MicroUSB
  • Clock Speed: 80MHz/160MHz
  • Flash: 4M bytes

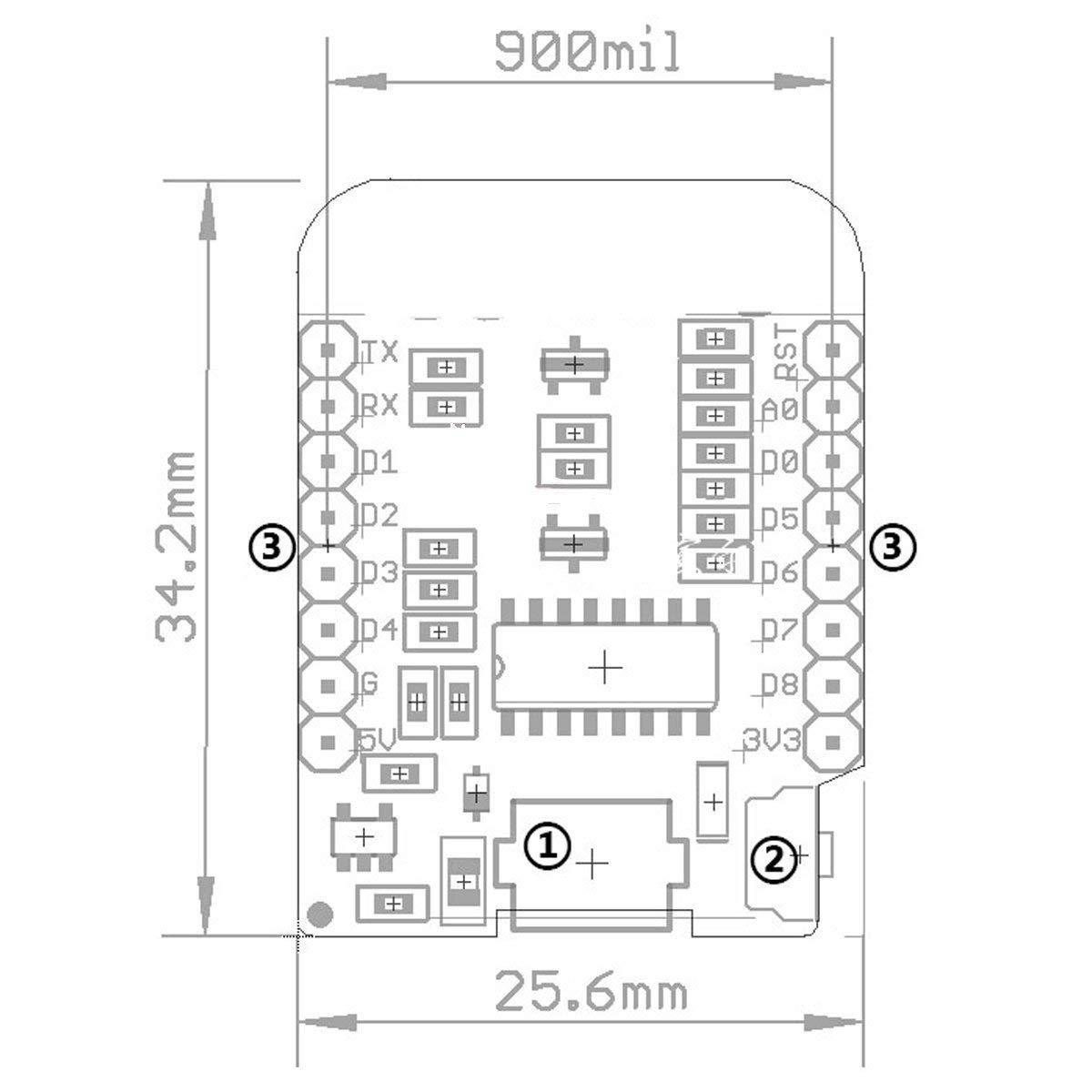

  • Dimensions: 34mm x 25,5mm x 6.8mm
  • Weight: Approx. 5g excluding connectors
  • Compatible with Arduino
  • Compatible with Nodemcu
  • Compatible with MicroPython

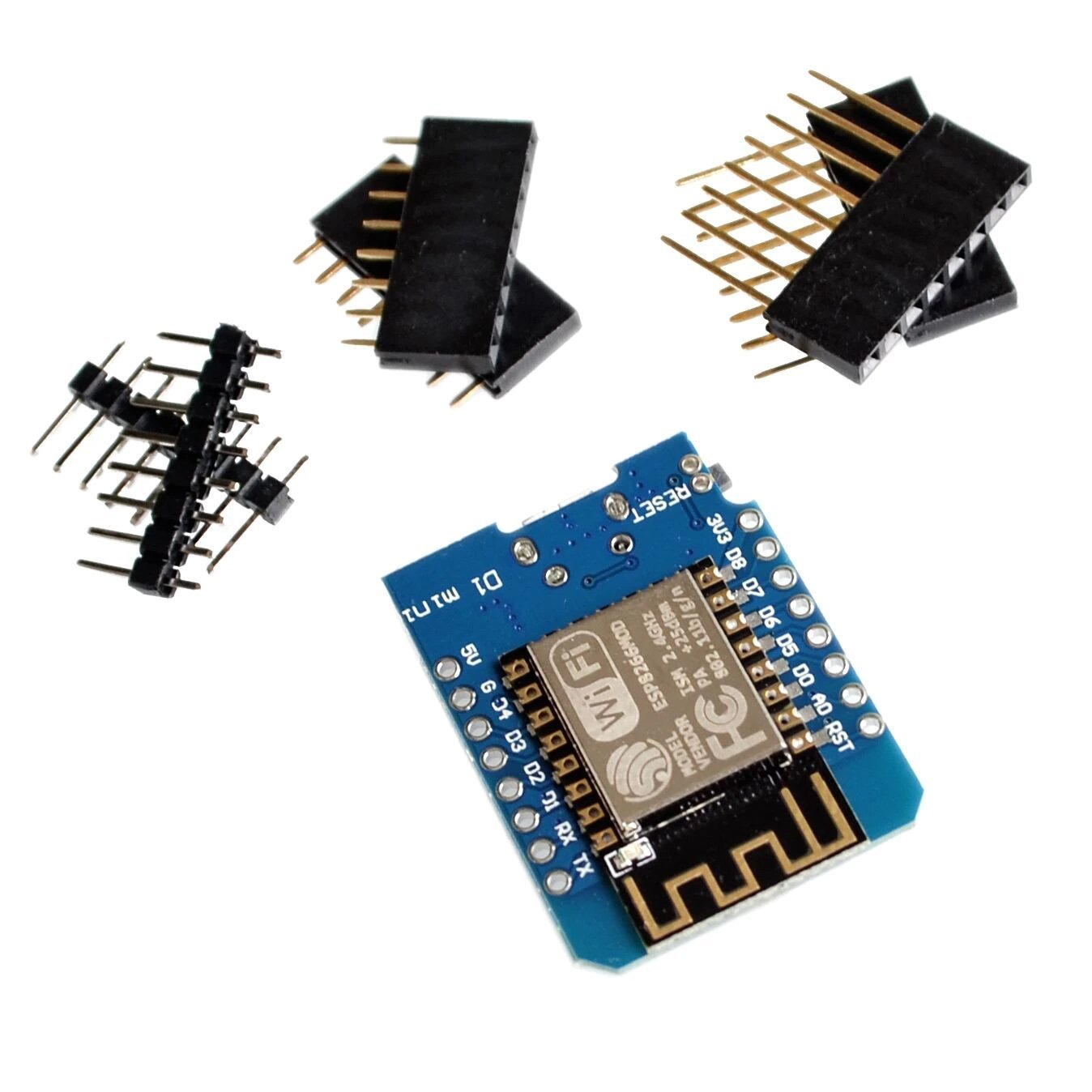

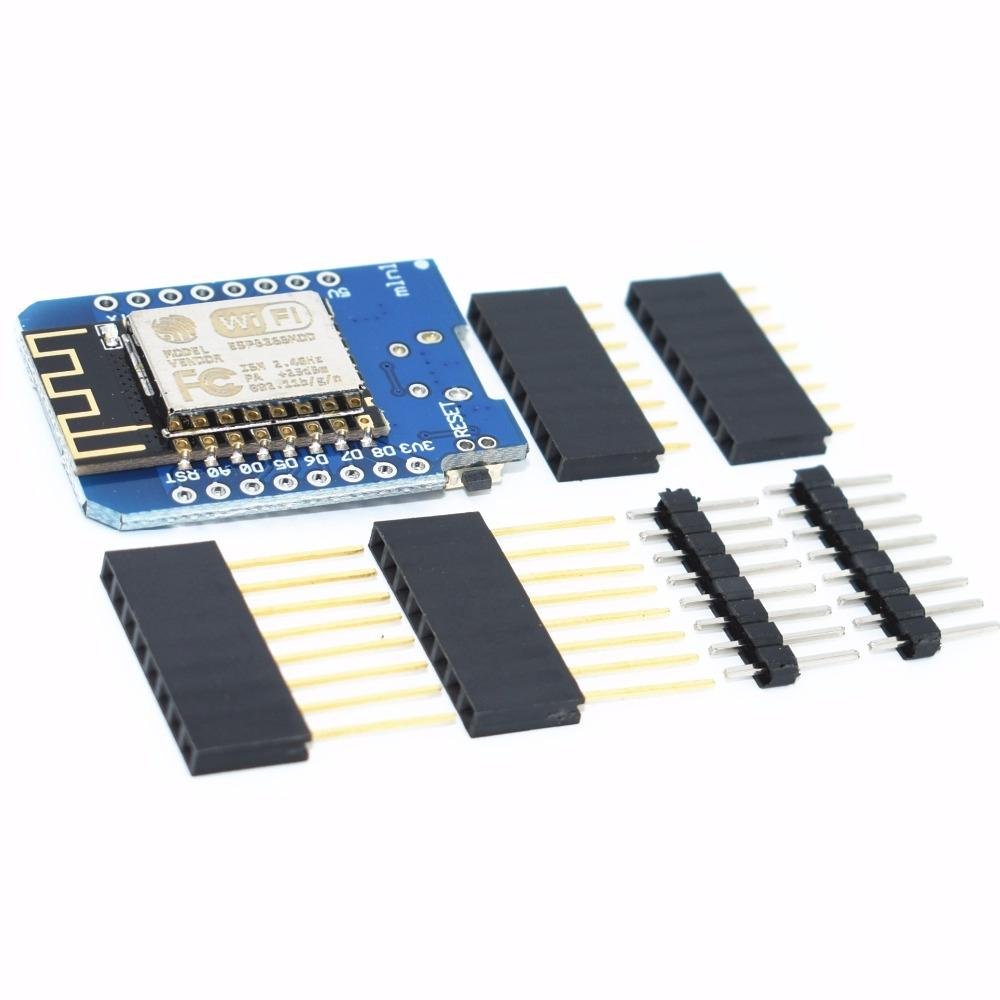

This D1 Mini comes with 3 different types of header connectors to support various configurations:

  • Female
  • Male
  • Female/Male (long female)

In most cases, the female headers are the best choice as they allow you to install the various shields that are available.

Package Includes:

1x D1 Mini ESP8266 ESP-12 WiFi Development Board NodeMCU Lua
Two each Female, Male, and Female/Male (long female) connectors
Printed installation and operation instructions
