CIE-H10A ezTCP 8-Port, RS-232 & Ethernet Remote I/O Controller

Name: CIE-H10A ezTCP 8-Port, RS-232 & Ethernet Remote I/O Controller
Brand: Sollae Systems
SKU: CIE-H10A-BO
Price: 283.50 USD
Availability: InStock

$283.50

Sale Sold out

Quantity

NOTE: The CIE-H10A is discontinued by the manufacturer and is replaced by the CIE-H10G. It is still available, but is not recommended for new designs. For new designs please use the CIE-H10G 8-Port, RS-232 & Ethernet Remote I/O Controller.

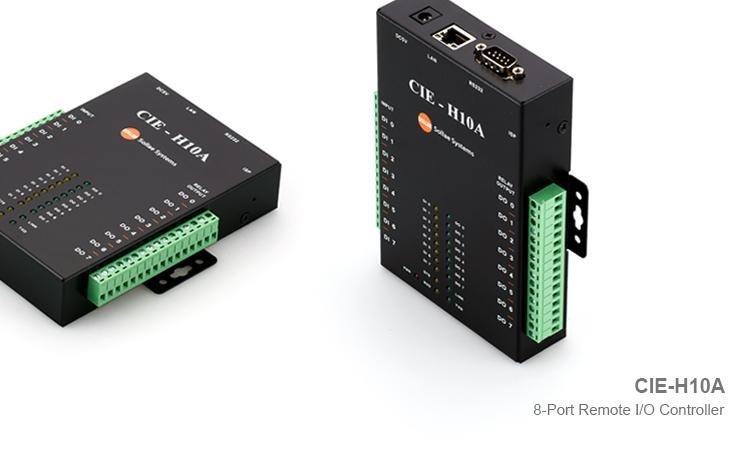

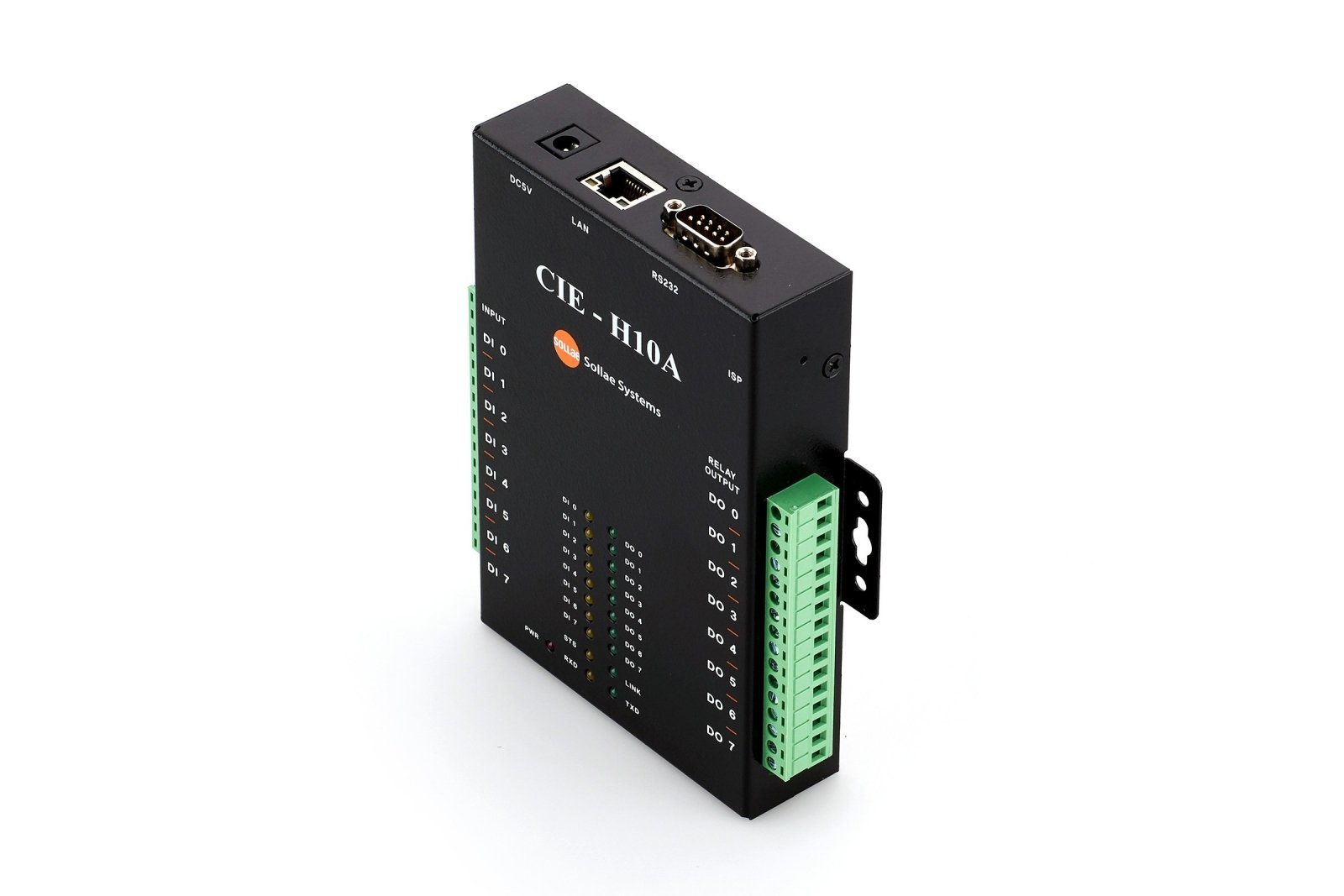

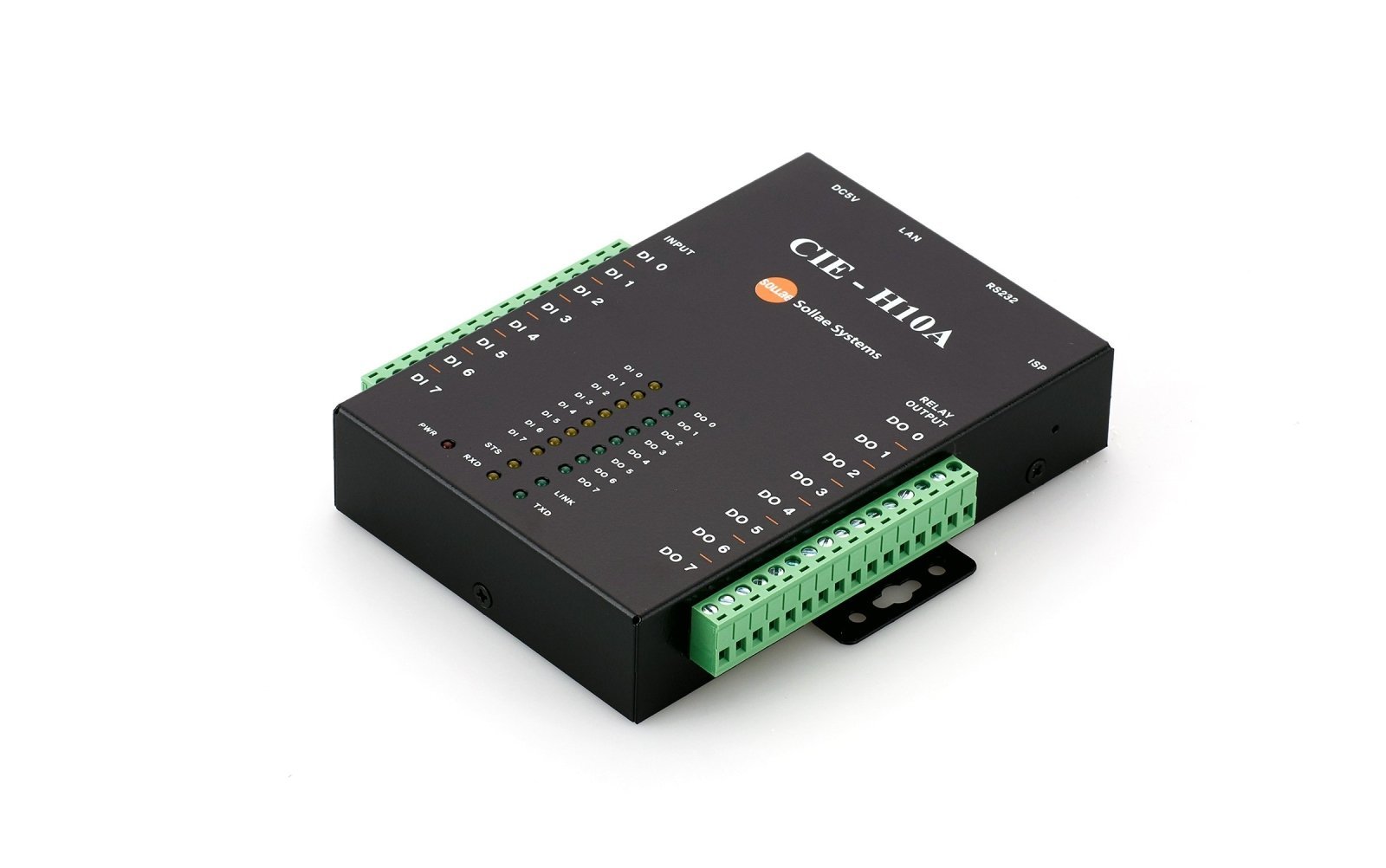

The CIE-H10A from Sollae Systems is a remote I/O controller that supports 8 input ports interfaced with a photocoupler and 8 output ports (Relay Switch). The CIE-H10A provides the functions to monitor and control the digital input ports and digital output ports through the Internet. Also, the existing contacts can be controlled through the network, enabling efficient management of I/O equipment from remote locations.

The serial ↔ TCP/IP conversion function is provided, so serial devices can be easily managed without a serial LAN converter.

Modbus/TCP protocol is used when controlling the contacts of the CIE-H10A, and since the Web method is also supported, you can control the output ports through the Web page from anywhere. The Web page can be changed to suit the user’s purposes. Additionally, a Macro function that automatically controls the output ports is provided by a simple logic formula according to the input port.

The CIE-H10A Remote I/O Controller can be used in any environment where I/O devices need to be controlled and monitored, especially for applications such as Remote PC Power Control, Internet Switch, etc.
