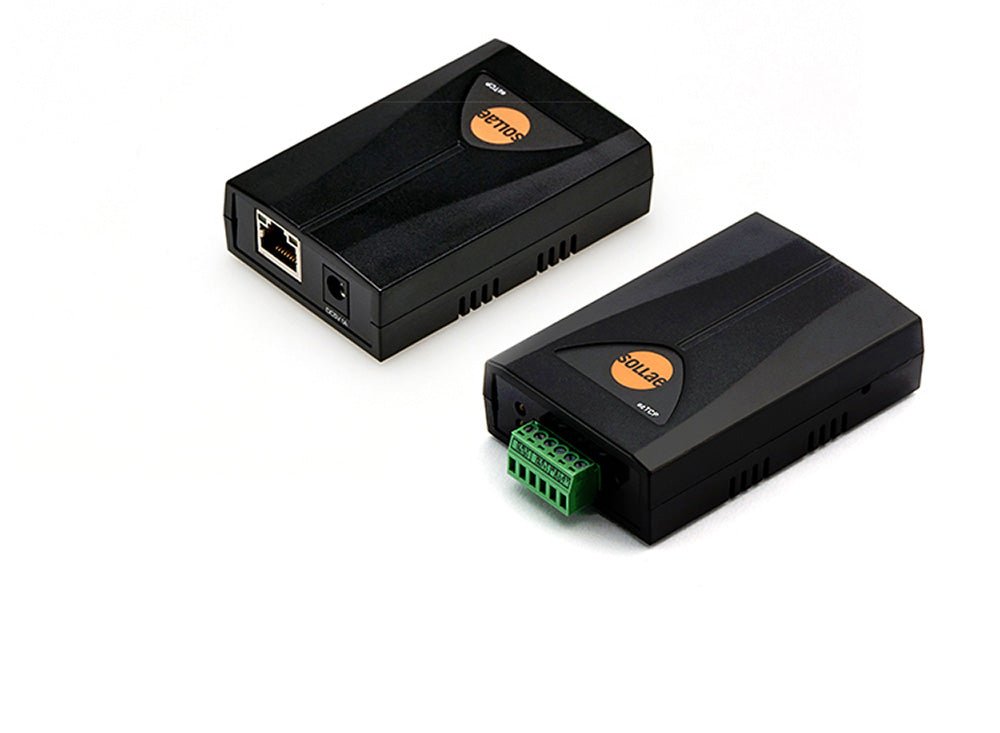

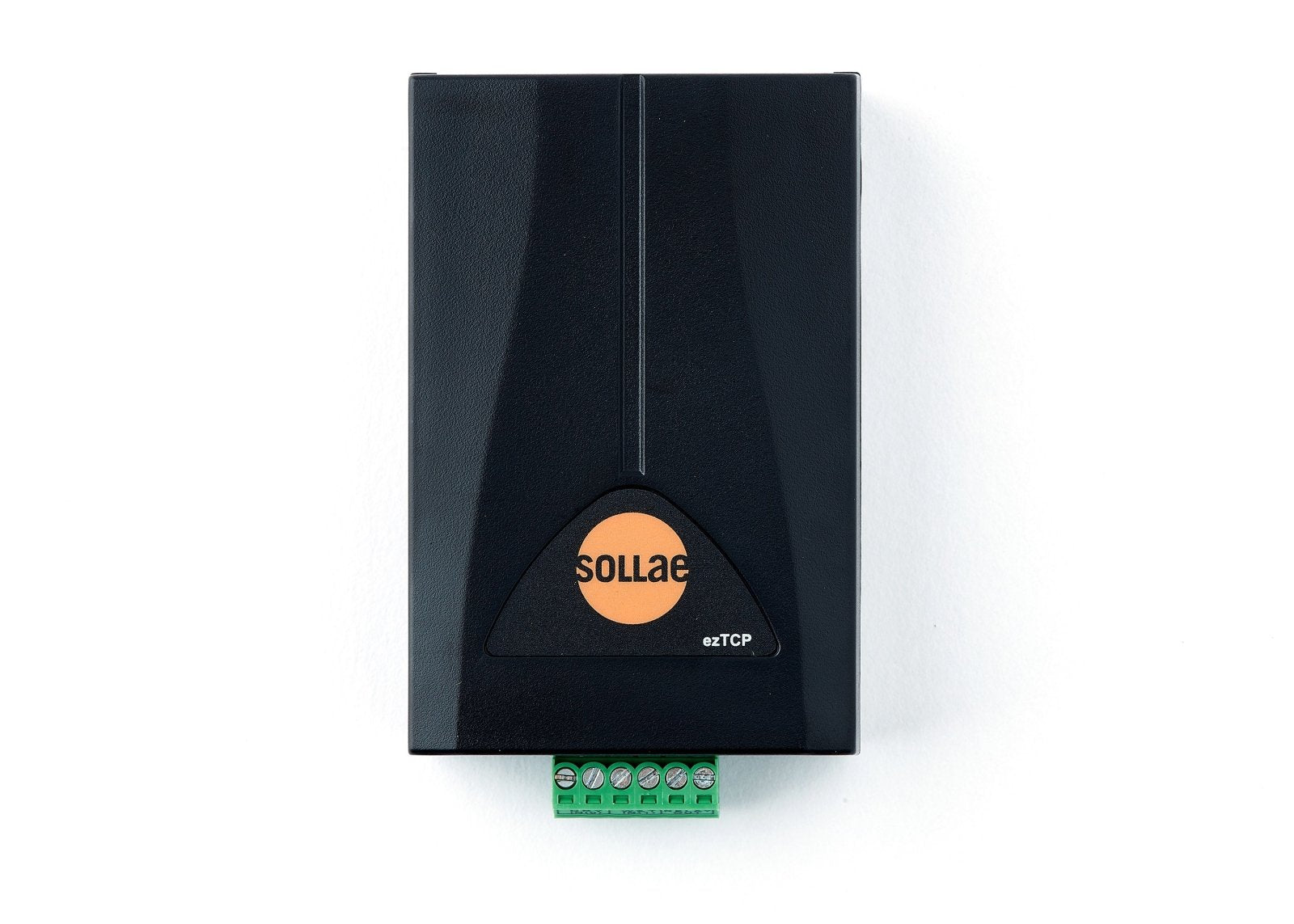

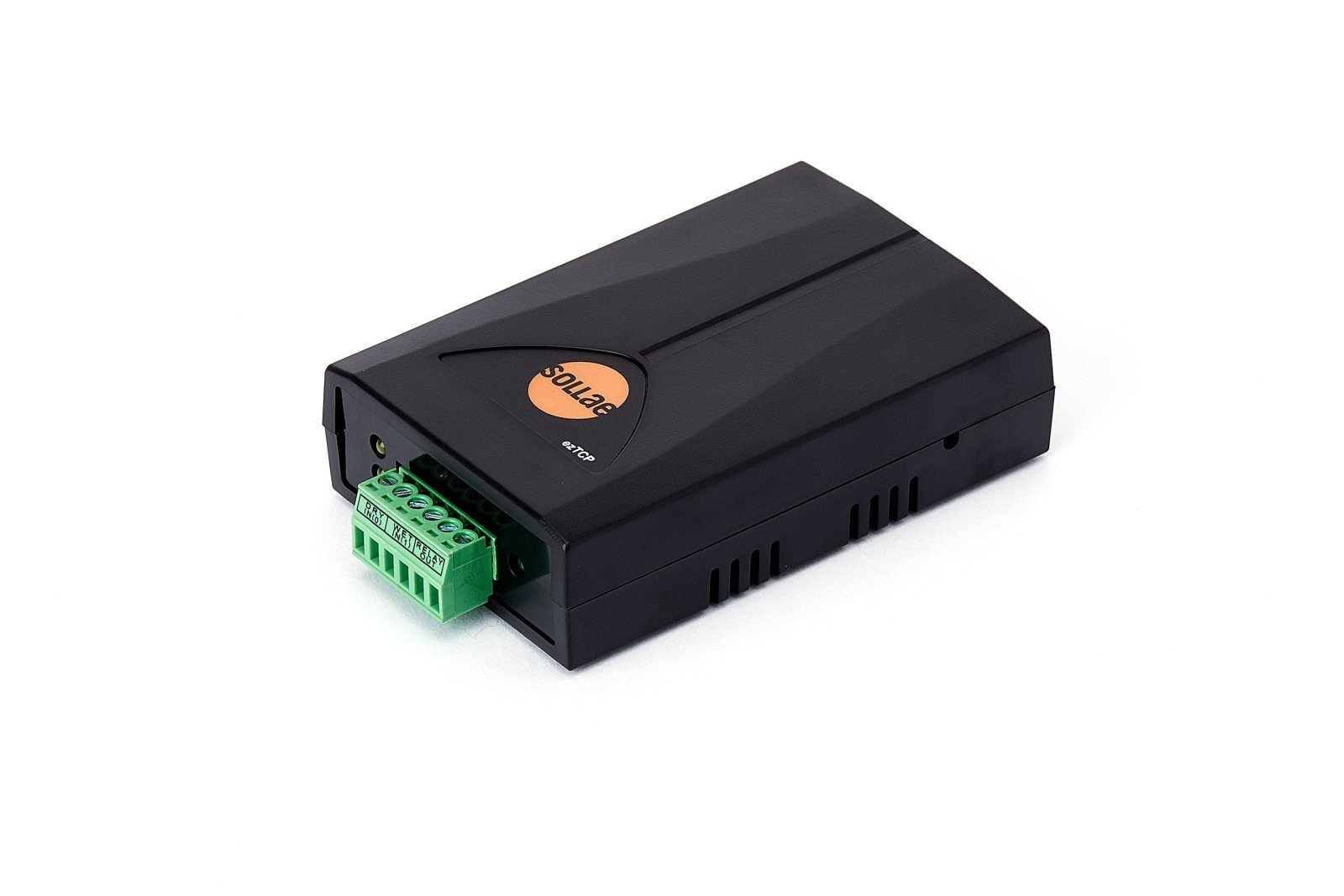

CIE-H12A ezTCP 2-Port Input / 1-Port Output Remote I/O Controller

The CIE-H12A from Sollae Systems is a remote I/O gateway equipped with 1 digital input port, 2 digital output ports and an Ethernet interface. Each digital input port is linked to a photocoupler. The input port can monitor the ON/OFF state of equipment (maximum is 24VDC). Each digital output port is linked to a relay. Apart from ON/OFF control, the digital output port can also be controlled to generate a pulse.

The CIE-H12A supports the Modbus TCP protocol. You can control/monitor equipment/sensors located in remote places from a PC, mobile app, HMI, or other Modbus TCP devices. You can use Sollae Systems' free software/app called ModMap or any software/app that supports Modbus TCP.

The CIE-H12A is also equipped with an embedded web server with a preloaded web page, so you can use any web browser on a PC/smartphone to access the web page to control/monitor equipment/sensors. The web page is customizable so you can easily change the web UI if needed.

The CIE-H12A allows each digital output port to be automatically controlled by a logic formula of digital input and output ports. Specifically, it can connect directly to multiple CIE-H10A, CIE-H14A, and/or other CIE-H12A controllers to form an I/O system called Internet Switch. The system allows the output port of a device to be controlled by input ports of other devices, and vice versa, via the Internet. CIE-H12A allows up to eight TCP connections simultaneously, enabling it to monitor sensors from different HMI devices/software/apps at the same time.

CIE-H12A Controller Features:

• Affordable for small sites
• 2x input ports (dry/wet contacts)
• Monitor & control via Modbus/TCP or Web
• Controlled by simple logic formula operating autonomously
• Web-based control over a custom web page
• Can be used as an Internet switch
• Free Modbus/TCP program (ModMap)

CIE-H12A Specifications:

• Digital Input Ports
• Number of Ports: 2
• Interface: Isolated by Photo-coupler
• Electric Parameter: MAX VIL=1.2V, MIN VIH=2.2V
• Maximum Input Voltage: 24V DC
• Digital Output Port
• Number of Ports: 1
• Interface: Isolated by Relay
• Relay Capacity: 5A (DC 28V)
• Network Interface
• 10Base-T/100Base-TX Ethernet(RJ45)
• Ethernet Speed: Auto Sense
• 1:1 or Cross-over Cable Auto Sense
• 1000 VAC Isolation
• Software Functions
• Protocols:
  TCP, UDP, IP, ICMP, ARP, DHCP, PPPoE, TELNET
  TFTP, DNS, DDNS, HTTP, Modbus/TCP, SMTP
• Security
• IP & MAC Filtering - Restrict Host or Network
• Password for Configuring
• Digital I/O Port Communication Mode: Modbus/TCP, HTTP, Stand alone(by simple equation)
• Additional Functions: Remote Debug Function
• Indicators (LEDs)
• Status: Yellow, The Current Status
• Ethernet: Link/RXD/TXD Green
• Digital Input: Yellow x 2
• Digital Output: Green
• Management:
• ezManager: Configuration and Monitoring through Network and Serial
• TELNET: TELNET Login
• Supplementary Software
• ezManager: Configuration Tool for Windows
• ModMap: Management Tool of I/O controllers for Windows
• Dimensions
• Size 96mm x 57mm x 24mm (3.8 x 2.24 x 0.95 inches)
• Operating Environments
• Input Voltage: DC 5±0.5V
• Current Consumption: 300mA Typical
• Operating Temperature: -40℃ ~ +85℃
• Storage Temperature: -40℃ ~ +85℃
• Certifications
• KC: Registration (KN 32, KN 35)
• CE: EMC 2014/30/EU, RoHS 2011/65/EU

Package includes:

1X CIE-H12A ezTCP 1-Port Remote I/O Controller

Delivery is stock to 10 days ARO

Optional Accessories:

2X MOUNTER DIN Rail Mount and BRACKET for attaching MOUNTER

5V 5W AC-DC Wall Mount Power Adapter

CIE-H12A Documentation and Resources

CIE-H12A / 2-Port Input / 1-Port Output Remote I/O Controller product web page:  https://www.eztcp.com/en/products/cie-h12a
