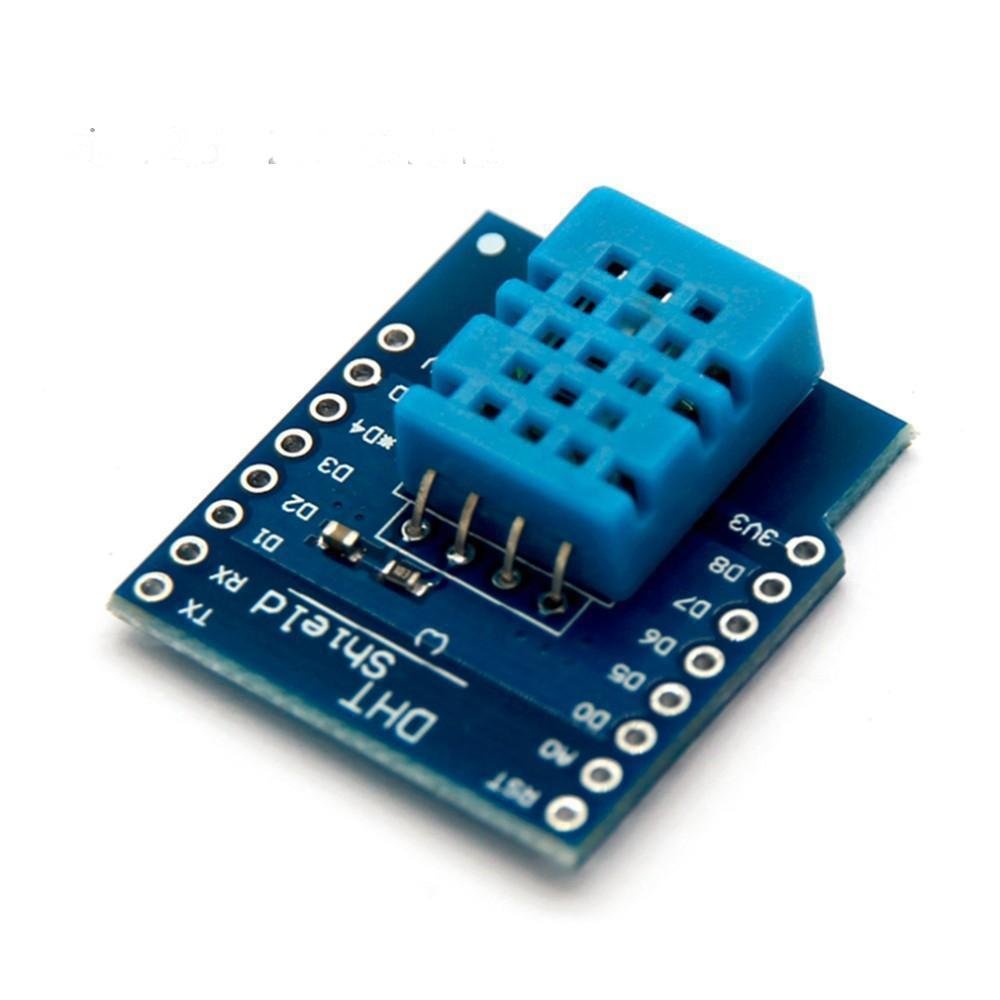

DHT11 Temperature And Humidity Shield for Wemos D1 Mini ESP8266 Arduino NodeMcu IOT

  • $2.79


Use this DHT11 temperature and humidity shield with your D1 Mini to wirelessly monitor temperature and humidity remotely. For example, use this shield with the D1 Mini to monitor the temperature and humidity in a greenhouse and use the relay shield to turn a fan on to cool it down if the greenhouse overheats.

  • Compact size
  • Digital output
  • Pin compatible with D1 Mini Module

Specifications

  • Output signal type: Digital
  • Power : 3.3V
  • Max Current : 2.5 mA
  • Temperature range : 0-50°C
  • Accuracy : ±2°C accuracy
  • Humidity range : 20-80% with 5% accuracy
  • Sampling rate : Up to 1 per second
  • Dimensions: 29mm x 26mm x 7.5mm (excluding connectors)

All I/O are designed to be 3.3V compliant only.

    This D1 Mini Shield comes with 3 different types of header connectors to support various configurations:

    • Female
    • Male
    • Female/Male (long female)

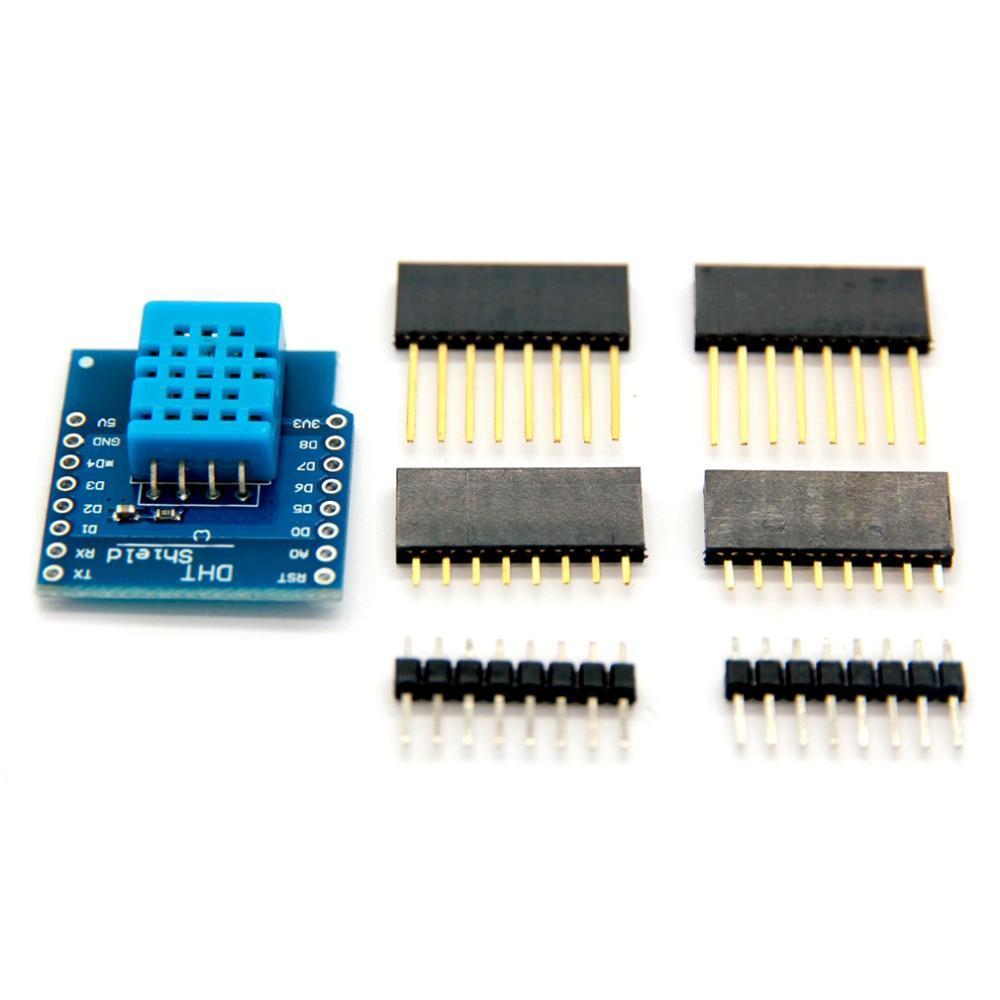

    Package Includes:

    1x DHT11 Temperature And Humidity Shield for Wemos D1 Mini
    Two each Female, Male, and Female/Male (long female) connectors


    Get it faster! Ships in 1 business day from our US facility in Colorado for quick delivery.
