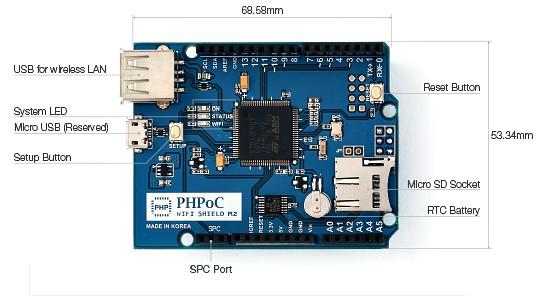

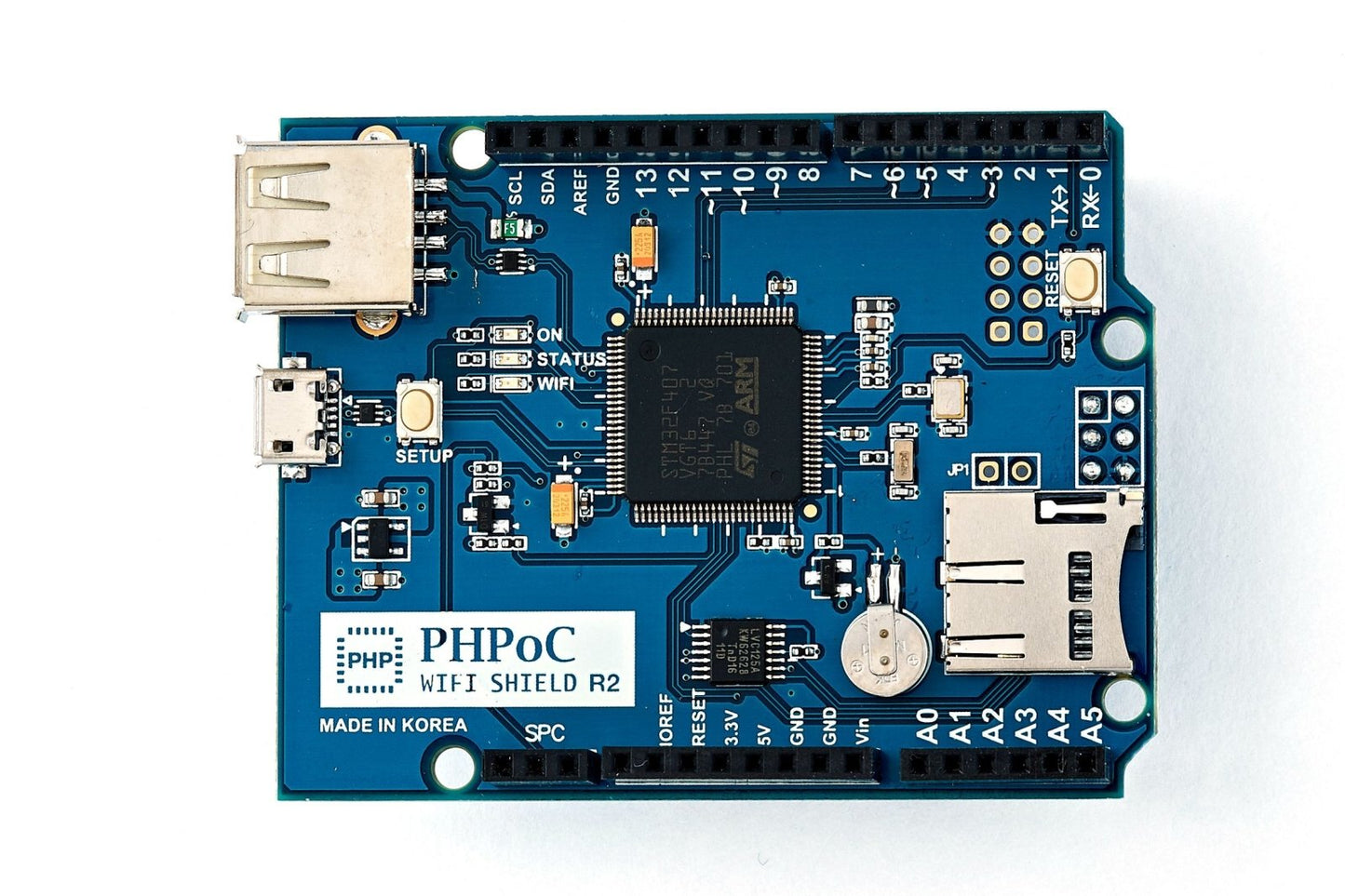

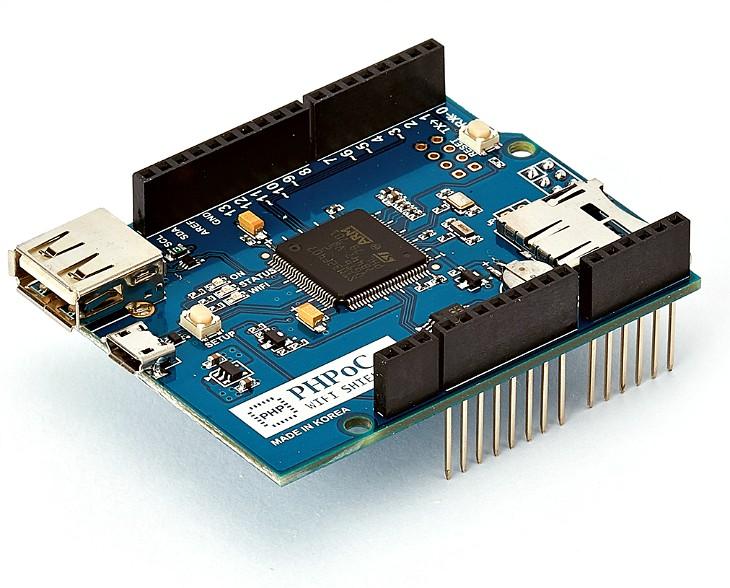

P4S-347 V2 PHPoC WiFi Programmable IoT Shield for Arduino

The PHPoC P4S-347 Shield 2 is an advanced wifi shield for Arduino which connects Arduino Uno and Mega microcontrollers to the Internet. With its powerful libraries and built-in web application, the PHPoC Shield brings the great features of PHPoC to Arduino providing the bridge between the Arduino controller and the internet allowing you to create Arduino-powered IoT devices easily and quickly.

PHPoC Shield 2 communicates with Arduino through an SPI interface and connects to the Internet through WiFi. It supports various network and security protocols, adding plenty of capabilities to Arduino Uno and Mega. PHPoC Shield 2 is equipped with an embedded Web server, WebSocket server and a PHPoC interpreter, enabling users to create dynamic embedded web apps to real-time control and monitor sensors/devices.

Some web apps are built and preloaded into PHPoC Shield to help the users interact with Arduino easily via Web. Just by using the Web browser on your smartphone, tablet or PC, you can real-time control/monitor Arduino-connected things or change your network setting.

A variety of expansion boards that dock onto the PHPoC Shield are designed to add more advanced capabilities such as relays, DC motor controllers, stepper motor controllers and RS232/RS485 communications.

The PHPoC WiFi Shield 2, along with the Smart Expansion Boards for PHPoC shield, makes a great combination, which provides users many powerful functions to easily interact with other devices, sensors and actuators.If you need a similar product but for wired LAN connectivity, see the P4S-348 PHPoC Shield 2 for Arduino.

Features:

• Built-in Web Applications
• PHPoC interpreter
• Embedded Web server and WebSocket server
• Various networking protocols
• Securities Protocols: SSL/TLS
• TCP/UDP
• IPv4 / IPv6 dual stack
• IEEE 802.11b/g Wireless LAN
• SPC Interface: Connect with Smart Expansion Board
• WiFi Security: WPA-PSK / WPA2-PSK, WPA-Enterprise(TLS/TTLS/PEAP)
• WLAN topology: Ad-hoc, Infrastructure, Soft AP
• RTC (Real-Time Clock)
• Micro-SD card Socket
• Diverse libraries and examples for Arduino
• RoHS Compliant

Specifications

Processor Core: Cortex-M4 168MHz

Flash: System-512K Bytes, User-512K Bytes

SRAM: 192K Bytes

Software

Arduino Examples:

- ChatServer

- ChatServerIPv6

- DateTime

- EmailClient

- GmailClient

- TelnetServer

- WebClient

- WebClientIPv6

- WebRemotePad

- WebRemotePush

- WebRemoteSlide

- WebSerialPlotter

- WebSSLClient

- WebSSLClientIPv6

Arduino Library Classes: PhpocClient, PhpocServer, PhpocEmail, PhpocDateTime

Web Applications: WebRemotePad, WebSerialPlotter

Network Protocols: IPv4/IPv6 Dual Stack, TCP/UDP, ICMP, DHCP, HTTP, Telnet, SSH, SMTP, ESMTP, DNS Security SSL/TLS

Network Configuration: Via Web

SPC Interface: To connect with Smart Expansion Boards such as Relay Board, Digital Input Board, DC Motor Controller, Step Motor Controller, RS-232 Board, RS-422/RS-485 Board

Wireless LAN

Interface: IEEE802.11b/g Wireless LAN (require Ralink RT3070/5370 chipset Wireless LAN Adapter)

Mode: Ad-hoc, Infrastructure, Soft-AP

WiFi Security: WPA-PSK / WPA2-PSK, WPA-Enterprise (TLS / TTLS / PEAP)

Interface with Arduino: SPI - ICSP, SS: 10(Arduino Uno), 53(Arduino Mega)

RTC (Real-Time) Clock

Battery: Rechargeable battery (5.8mAh)

Peripherals: Realtime Clock, 4KB Backup SRAM

MicroSD Socket

Interface with Arduino: SPI - ICSP, SS: 4

Card Type: Push-Pull Type

LEDs

System LED: On(Red), Status(Green), WiFi(Green), Ethernet(Green)

USB Interface

USB Host: Wireless LAN interface with a USB dongle

USB Device: PC interface for programming

Power

Input: DC 5V (±10%) from Arduino Board

Current Consumption: About 180mA (Wireless LAN, it can vary according to USB dongle)

Buttons

RESET: Resetting PHPoC Shield

SETUP: Configuration and Factory Reset

Temperature

Storage /Operating: -20C ~ 60C

Environment: RoHS Compliant

Delivery is stock to 2 weeks, please contact us prior to ordering for availability.

Need an Arduino Microcontroller with your PHPoC Shield for Arduino?
Arduino UNO R3 Compatible Microcontroller Board with USB Cable
Arduino MEGA2560 R3 Compatible Microcontroller with USB Cable

Documentation & Resources:

P4S-347 V2 PHPoC WiFi Shield for Arduino Web Page

Videos:

PHPoC Shield V2 for Arduino Introduction





Project: Event triggered door alarm that sends an email notification when the door is opened
