Teensy OctoWS2811 Adaptor For Teensy 3.2 - 4.1

Teensy OctoWS2811 Adaptor For Teensy 3.2 - 4.1

Regular price $10.00
Regular price Sale price $10.00
Sale Sold out
Style

This Teensy adaptor board connects Teensy 3.x, Teensy 4.0, or Teensy 4.1 microcontrollers to thousands of LEDs using the OctoWS2811 Library.

The adaptor features a 74HCT245 buffer chip and 100 ohm impedance matching resistors. CAT6 Ethernet cable is used from this board to the LED strips. CAT6 cable is designed for very high bandwidth, minimal cross-talk between twisted pairs, and 100 ohm impedance, for a very high-quality signal. The RJ-45 network jacks allow your LED array to be easily disconnected from the electronics.

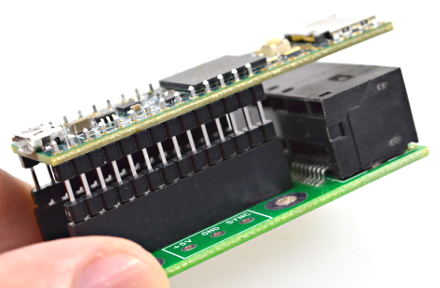

Teensy 3.x and 4.0 microcontrollers are added on top of the adaptor using stacking header pins, or a header and socket pair if you wish to be able to remove the Teensy board.

This adaptor can also be used with the larger Teensy 3.5, 3.6, and 4.1 boards using double insulator pins and sockets. Together, these are tall enough to allow the longer board with an SD socket to overhang the RJ-45 connectors.

Note: A Teensy 4.0 or Teensy 4.1 Development Board is needed to make your Teensy OctoWS2811 Adapter operational.

The TEENSY Microcontrollers are not included, and are shown in the photos for illustration purposes only.

Resources:

PJRC forum for Teensy Users

PJRC OctoWS2811 Product Page
