W1209 24V Digital Thermostat Temperature Controller Module with NTC Sensor – Heating & Cooling Automation

Automate Temperature Control for Any DIY or Industrial Project

The W1209 24V Digital Thermostat Temperature Controller Module is a compact, self-contained solution for automating heating and cooling devices based on real-time temperature readings. Designed for 24V DC systems, this version is ideal for automotive, industrial, solar, and marine applications where 24V power is standard — as well as any hobbyist or commercial project running on a 24V supply.

Whether you're building a homebrew fermentation chamber, a reptile habitat controller, a greenhouse ventilation system, a 3D printer enclosure heater, or controlling equipment in a 24V truck, boat, or solar installation, the W1209 gives you precise, programmable temperature control at a fraction of the cost of commercial thermostats.

Simply connect 24V DC power, wire your heating or cooling device to the onboard relay, plug in the included NTC temperature sensor, and set your target temperature. The module does the rest — continuously monitoring the ambient temperature and switching your device on or off to maintain your desired setpoint.

Why Choose This Module?

• Ready to use out of the box — Includes the controller board and a waterproof NTC temperature sensor probe with cable. No soldering, no additional components needed.
• 24V DC input — Purpose-built for 24V systems commonly found in trucks, buses, marine vessels, solar battery banks, industrial control panels, and HVAC equipment.
• Wide temperature range — Measures from -50°C to 110°C (-58°F to 230°F) with ±0.1°C resolution, suitable for freezer monitoring, incubation, fermentation, and high-heat applications.
• Powerful onboard relay — Switches loads up to 10A at 120VAC or 24VDC, enough to directly control fans, small heaters, solenoid valves, Peltier coolers, and more.
• Heating AND cooling modes — Configurable for either heating (relay ON when temp drops below setpoint) or cooling (relay ON when temp rises above setpoint) via a simple menu setting.
• Adjustable hysteresis — Set a temperature differential (1°C–15°C) to prevent rapid relay cycling, extending the life of your connected equipment.
• Bright LED display — Easy-to-read 3-digit display shows the current temperature at a glance, even in dim environments.
• Simple 3-button interface — Set/Menu, Increment (+), and Decrement (–) buttons make programming fast and intuitive. No complicated menus or manuals required.
• Compact footprint — Board measures just 48mm × 40mm — small enough to embed into enclosures, control panels, or project boxes.
• Temperature alarm — Configurable high and low temperature alarm thresholds alert you when conditions move outside your desired range.

Popular Applications

Technical Specifications

Programmable Settings at a Glance

The W1209 features seven user-configurable parameters accessible through a simple long-press menu:

Quick Start Guide

1. Connect power: Wire 24V DC to the power input terminals (+ and –).
2. Attach the sensor: Plug the NTC sensor probe into the 3-pin header on the board.
3. Wire your load: Connect your heating or cooling device to the relay output terminals (K0 and K1). The relay acts as a simple on/off switch.
4. Set your target temperature: Use the + and – buttons to set your desired temperature on the display.
5. Configure mode: Long-press the SET button to enter the settings menu. Set P0 to H for heating or C for cooling.
6. Done! The module will now automatically control your device to maintain the target temperature.

⚠️ Important: This is the 24V version. Do not connect to a 12V power supply — the module requires 24V DC input for proper operation. If you need a 12V version, please see our W1209 12V Digital Thermostat Controller.

📘 Full installation and programming instructions are available on our support page: W1209 Installation & Operating Instructions

Display Error Codes

Pro Tips

• Extend sensor cable carefully: The NTC sensor cable can be extended up to ~5 meters using shielded wire without significant accuracy loss. Beyond that, consider using a shorter run or adding a pull-up resistor for signal integrity.
• Use with a relay module for higher loads: While the onboard relay handles up to 10A, for high-power devices (space heaters, large compressors), use the W1209 relay output to trigger a higher-rated external relay or contactor.
• Calibrate with P4: If your sensor reads slightly high or low compared to a reference thermometer, use the P4 temperature correction offset (±7°C) to fine-tune accuracy.
• Mount in a ventilated enclosure: For long-term installations, house the board in a project box with ventilation holes to protect it from dust and moisture while allowing airflow to the board.
• Perfect for 24V vehicle and solar systems: This module integrates seamlessly into 24V truck electrical systems, marine vessel power buses, and 24V solar battery bank setups without the need for a voltage converter.

What's in the Box

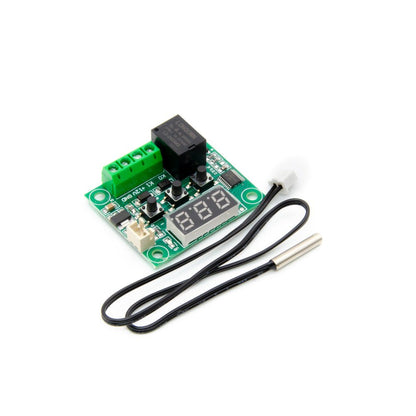

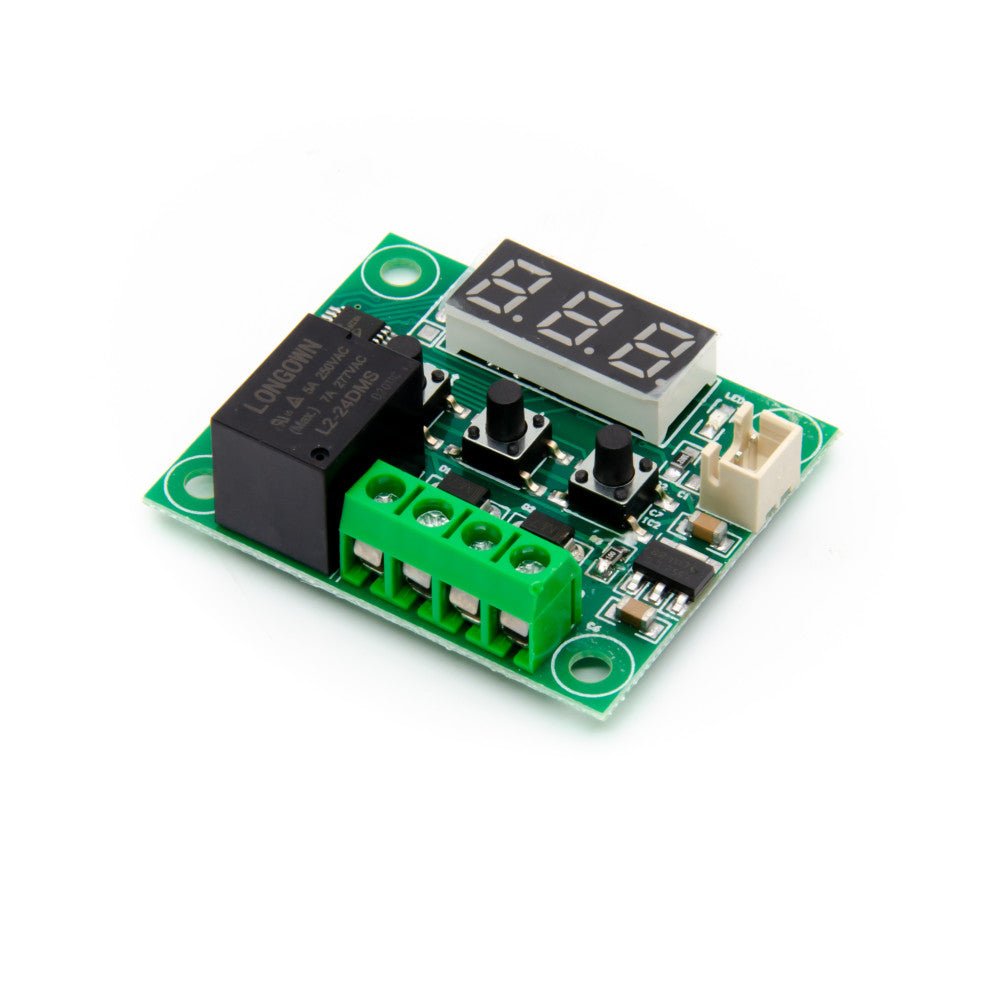

• ✅ 1× W1209 24V Digital Thermostat Controller Board
• ✅ 1× Waterproof NTC Temperature Sensor Probe with 0.3M (~12  inch) cable

Note: 24V DC power supply and load wiring are not included. A standard 24V DC adapter (minimum 0.5A recommended) is required for operation.

📄 Documentation & Resources

• User Manual & Hookup Guide (English)
• User Manual & Hookup Guide (Español/Spanish)
• All Temperature Measurement & Control Guides

Need a longer probe? See our 1 Meter long NTC Thermistor Probe that can be used with the W1209.
