📋 Overview

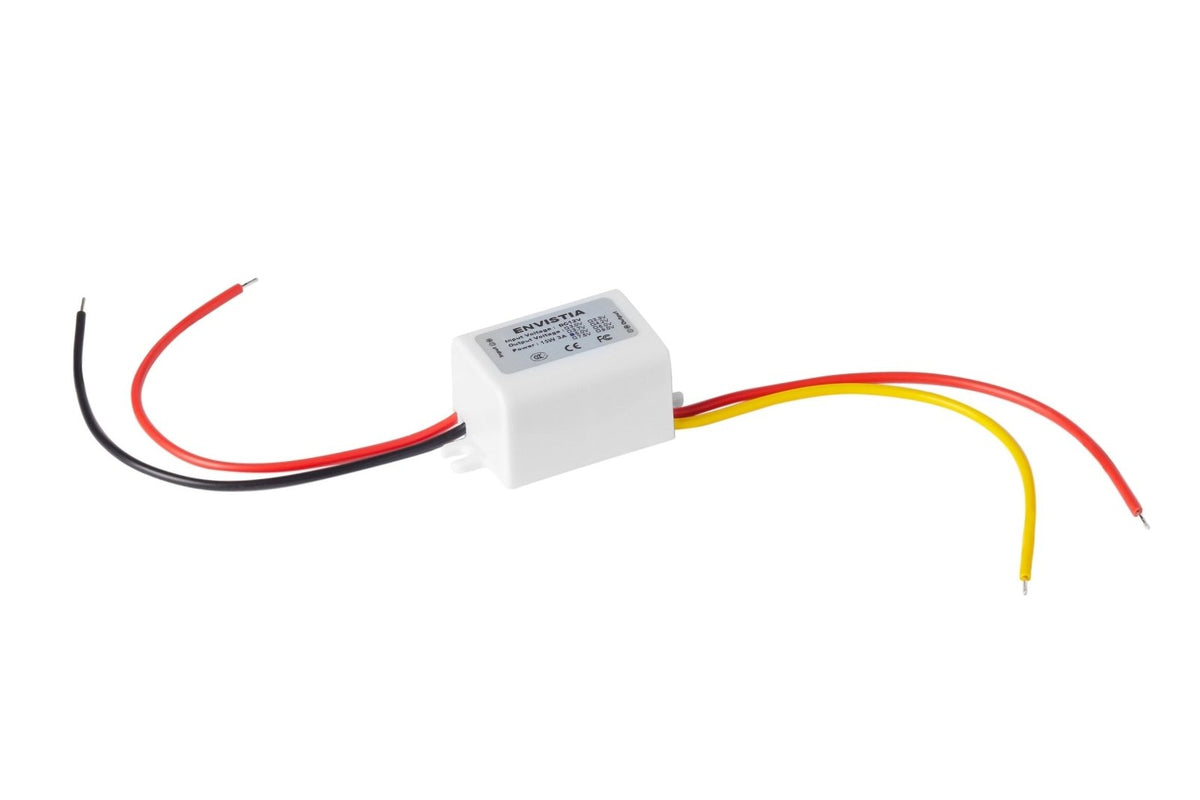

The Envistia F23JxVxA4S 12V DC-DC Step-Down Converter Series takes a 12V DC power source (like a car battery, solar setup, or 12V wall adapter) and converts it down to a lower, regulated voltage — 3.3V, 5V, 6V, or 9V — depending on which model you choose. All four models share the same waterproof housing, physical size, and wiring layout, so this guide covers every version of the module.
These are non-isolated "buck" (step-down) converters, meaning they take a higher input voltage and efficiently drop it to a lower output voltage using a switching regulator circuit, rather than wasting the extra energy as heat like an old-style linear regulator would. That's why these little modules stay cool and run at over 96% efficiency even at full load.
They're a simple, way to power 3.3V, 5V, 6V, or 9V electronics — dash cams, gauges, sensors, small microcontroller boards, and more — directly from a 12V system.
⭐ Key Features
- Four output voltages available — Choose a 3.3V, 5V, 6V, or 9V model to match your project
- Wide input range — Accepts 8–24V DC (10–24V on the 9V model), so it works on 12V nominal systems even with voltage sag or a charging alternator's higher voltage
- Epoxy-sealed, waterproof housing — Safe for outdoor, automotive, marine, or exposed installations
- High efficiency — Greater than 96% efficient, so very little power is wasted as heat
- Built-in protection — Overload, over-current, over-voltage, and low-voltage protection with automatic recovery
- Compact and lightweight — Easy to tuck into an enclosure, behind a dashboard, or inline with existing wiring
📊 Specifications
All four models share the same case size and wiring style — only the output voltage, maximum current, and input voltage range differ.
| Specification | 3.3V Model | 5V Model | 6V Model | 9V Model |
|---|---|---|---|---|
| Model Number | F23J3V3A4S | F23J5V3A4S | F23J6V2.5A4S | F23J9V1.7A4S |
| Input Voltage Range | 8–24V DC | 8–24V DC | 8–24V DC | 10–24V DC |
| Nominal Input | 12V DC | 12V DC | 12V DC | 12V DC |
| Output Voltage | 3.3V (+2%/-10%) | 5V | 6V | 9V |
| Max Output Current | 3A | 3A | 2.5A | 1.7A |
| Max Output Power | 9W | 15W | 15W | 15W |
| Approx. Max Input Current (at full load, 12V in) | ~0.75A | ~1.25A | ~1.25A | ~0.75A |
| Quiescent Current (no load) | <10mA | |||
| Efficiency | >96% | |||
| Operating Temperature | -40°C to +70°C | |||
| Size (L × W × H) | Approx. 38 × 27 × 23 mm (1.50 x 1.06 x 0.91 inches) L × W × H (52 mm / 2.05 inches overall length including mounting tabs) | |||
| Weight | Approx. 30g | |||
| Input & Output Wire Length | Approx. 12cm (4.7 inches) per lead | |||
| Input & Output Wire Size | 0.5mm² cross-sectional area, equivalent to ~20 AWG | |||
| Case Color | White | |||
| Housing | Epoxy-sealed, waterproof | |||
🔌 Wiring & Installation
Each converter has two pairs of wires — one pair for input, one pair for output. There are no pins or connectors to worry about; you simply splice, solder, or crimp these wires into your circuit.
| Wire Color | Function |
|---|---|
| Red (input side) | Input +V — connect to your 12V positive supply |
| Black (input side) | Input Ground — connect to your 12V negative/ground |
| Red (output side) | Output +V — connect to your load's positive terminal |
| Yellow (output side) | Output Ground — connect to your load's negative/ground terminal |
Wire gauge: all leads are 0.5mm² cross-sectional area, which corresponds to 20 AWG.
⚠️ Important: Double-check polarity before powering up. Reversing the input wires can damage the converter, and reversing the output wires can damage whatever you've connected to it. If you're unsure, use a multimeter to confirm your 12V source polarity before connecting.
⚠️ Critical: Match Your Input Power to Your Output Power
This is the single most important thing to understand before using any DC-DC converter: the input power source must always be capable of supplying at least as much power as your load will draw from the output. The converter itself doesn't create energy — it just efficiently reshapes voltage. If the input supply can't provide enough power, the output voltage will "fold back" (sag) rather than deliver what you expect.
Since these converters are roughly 96% efficient, a simple rule of thumb is:
Required Input Power ≈ Output Power ÷ 0.96
For example, if you're using the 5V/3A model at its full rated output of 15W, your 12V input source needs to be able to supply at least 15W ÷ 0.96 ≈ 15.6W, which at 12V works out to roughly 1.3A of available input current.
What happens if the input can't keep up? Say your load draws 3A at 5V (15W total), but your input source can only provide 12V at 0.5A (6W). The converter cannot manufacture the missing power — instead, it will fold back the output voltage until the math balances: 6W ÷ 3A = 2V output instead of the expected 5V. Your device will likely not function correctly, browning out or resetting.
⚠️ Important: Always size your 12V power source (battery, wall adapter, solar panel, etc.) so it can comfortably supply the full wattage your load needs — not just the input voltage. When in doubt, choose a supply rated for at least 20–25% more current than your calculated requirement to leave headroom.
🎯 Common Applications
- Dash cams and USB accessories — Convert 12V vehicle power down to the 5V that most USB-powered dash cams and gadgets expect
- Classic car gauge conversions — Use the 6V model to run original 6V dashboard gauges when a vehicle has been converted from a 6V to a 12V electrical system
- Sensor and remote monitoring power — Power 3.3V or 5V sensors, dataloggers, or wireless modules from a 12V battery or solar setup
- Microcontroller and hobby electronics projects — Cleanly power Arduino, Raspberry Pi Pico, or similar 3.3V/5V boards from a 12V supply
- Retrofit and alarm system power — Step down 12V household or vehicle power to run legacy 6V or 9V equipment without rewiring the whole system
🛠️ Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Output voltage is lower than expected | Input power source can't supply enough current for the load | Check your input supply's current rating; see the "Critical: Match Your Input Power" section above |
| Output voltage is lower than expected | Load draws more current than the converter's maximum rating | Check your device's current draw and compare it to the module's maximum output current in the specs table |
| No output at all | Reversed input polarity, or input voltage below the module's minimum | Verify red/black input wiring with a multimeter and confirm input voltage is within the module's rated range |
| Connected device won't power on but converter feels warm | Load draws more current than the converter's maximum rating | Check your device's current draw and compare it to the module's maximum output current in the specs table |
| Converter shuts off intermittently | Over-current or over-voltage protection tripping | Reduce load current, verify input voltage is stable and within range, then allow the auto-recovery to reset |
| Voltage reads slightly different than nominal | Normal output tolerance (e.g., the 3.3V model is rated +2%/-10%) | Confirm the reading is within the module's published tolerance; this is expected behavior, not a fault |
| Wires feel loose or come out of housing | Excess mechanical strain on the epoxy-sealed leads | Add strain relief (zip tie or heat-shrink) near the housing exit point and avoid pulling on the wires directly |
💡 Tips for Best Results
- Confirm your load's actual current draw — Measure it with a multimeter if possible, rather than relying on a device's printed rating, before choosing which model to buy
- Leave current headroom — Don't run a converter at 100% of its rated output continuously; choosing a model with 20–30% more capacity than you need extends its life
- Use proper connectors or solder joints — Twist-and-tape connections can work loose over time, especially in vehicles; crimp connectors or solder with heat-shrink are more reliable
- Protect the input side with a fuse — A small inline fuse on the red input wire protects both the converter and your source in case of a short
- Keep it dry, but not submerged — The epoxy housing resists splashes and moisture but is not rated for full submersion
- Label your wires — If you're running several converters in a project or vehicle, label which is which; all four models look identical from the outside
