📋 Overview

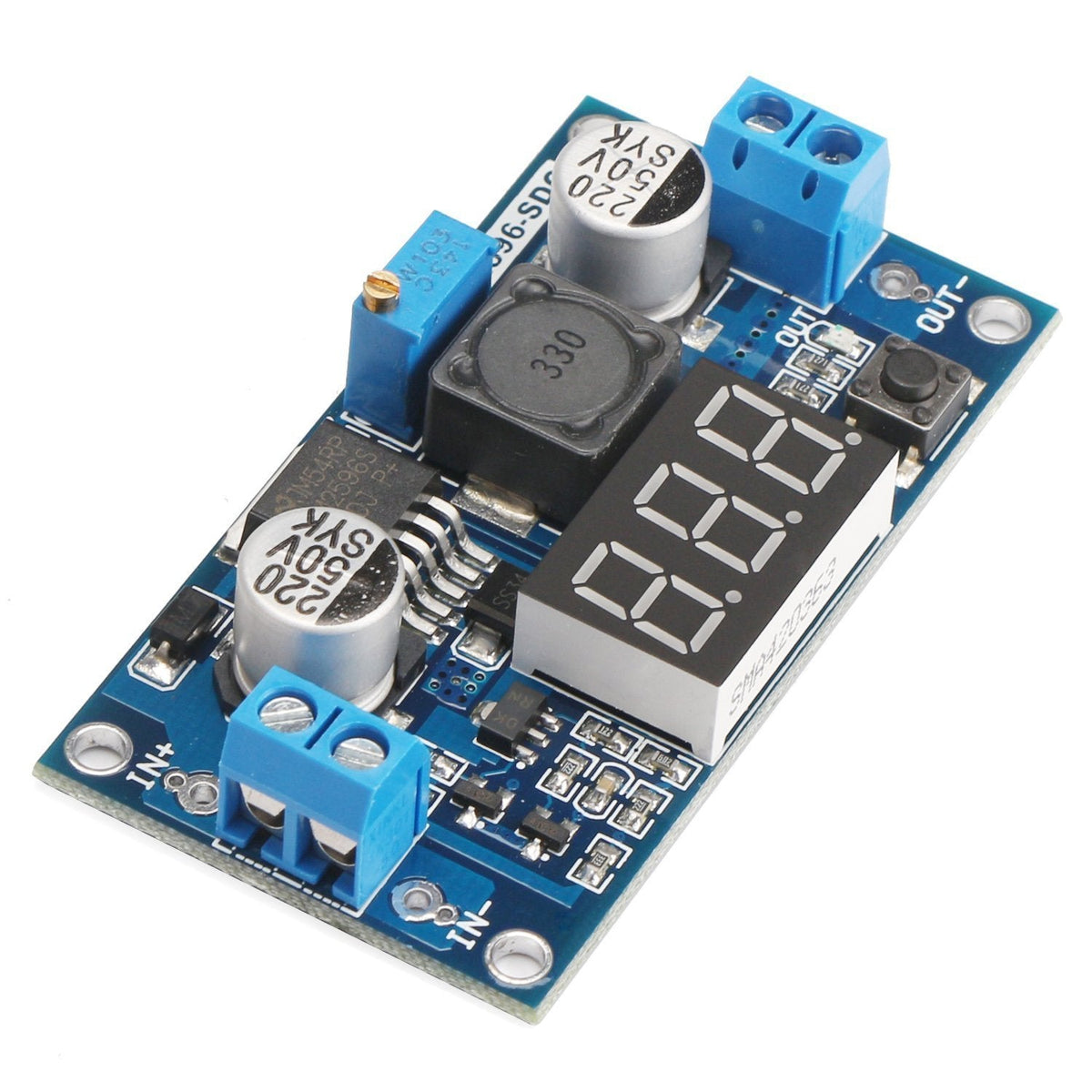

The LM2596 DC-DC Step-Down Buck Converter with LED Voltmeter is a compact, adjustable voltage regulator module that converts a higher DC input voltage down to a lower DC output voltage. It accepts input from 4V to 40V and lets you dial in any output voltage from 1.25V to 35V using the on-board potentiometer. It can deliver up to 2A continuous (3A maximum) current.
What sets this version apart from the basic LM2596 module is the built-in LED voltmeter display and screw terminals. The display lets you monitor either the input or output voltage at a glance — no external multimeter needed for routine monitoring. The screw terminals make wiring fast and tool-friendly — just strip your wires, insert them, and tighten with a screwdriver. No soldering required.
This is the Constant Voltage (CV) only version — it does not include constant current control or CC/CV charging functionality. It regulates the output voltage and lets the load draw whatever current it needs, up to the module's maximum rating.
⚠️ Important: The output voltage must always be set lower than the input voltage, with a minimum difference of approximately 1.5V. Always verify the output voltage before connecting your load — even though the module has a built-in display, we recommend confirming with an external multimeter when setting up for the first time, as the display accuracy is ±0.1V.
💡 What Is a Buck Converter?
A buck converter (also called a "step-down converter") is a type of DC-DC power supply that efficiently reduces a higher voltage to a lower voltage. Unlike a simple linear voltage regulator (like the LM7805), which burns off excess voltage as heat, a buck converter uses high-frequency switching to transfer energy through an inductor. This makes it far more efficient — the LM2596 module can achieve up to 92% efficiency, meaning very little energy is wasted as heat.
This module is ideal for situations where you have a higher-voltage DC source (like a 12V car battery, 18V tool battery, or 24V industrial supply) and need to power a device that requires a lower voltage (like 5V for a USB device, 3.3V for a microcontroller, or 9V for a sensor).
⭐ Key Features
- Built-In LED Voltmeter: Monitor input or output voltage on the integrated 3-digit LED display — no external multimeter needed for routine monitoring
- Display Toggle Button: Press the button to switch between input voltage (IN LED) and output voltage (OUT LED) display. Press and hold to turn the display off
- Screw Terminals: Tool-friendly screw-type wiring terminals for both input and output — no soldering required. Solder pads are also provided alongside the terminals for permanent installations
- Wide Input Range: Accepts 4V to 40V DC input
- Adjustable Output: 1.25V to 35V DC via on-board multi-turn potentiometer
- Up to 3A Output Current: 2A continuous, 3A maximum (heatsink recommended above 2A)
- High Efficiency: Up to 92% conversion efficiency reduces heat and wasted energy
- 150 kHz Switching Frequency: Stable output with small filter components
📊 Specifications
| Module Type | DC-DC Step-Down (Buck) Converter with LED Voltmeter |
| Regulator IC | LM2596 |
| Input Voltage | 4V – 40V DC |
| Output Voltage | 1.25V – 35V DC (adjustable via potentiometer) |
| Output Current | 2A continuous, 3A maximum |
| Conversion Efficiency | Up to 92% |
| Switching Frequency | 150 kHz |
| Min Voltage Differential | ~1.5V (input must be at least 1.5V higher than output) |
| Output Ripple | ≤30 mV (typical) |
| LED Voltmeter Range | 0V – 40V DC |
| Voltmeter Accuracy | ±0.1V |
| Voltmeter Display | 3-digit red LED, switchable between input and output voltage |
| Display Indicators | IN LED (input voltage displayed) / OUT LED (output voltage displayed) |
| Voltage Adjustment | On-board multi-turn potentiometer |
| Connections | Screw terminals (IN+, IN−, OUT+, OUT−) with adjacent solder pads |
| Operating Temperature | -40°C to +85°C |
| Board Dimensions | Approx. 53 × 26 × 14 mm (2.09 × 1.02 × 0.55 inches) L × W × H |
📌 Connections and Controls
Screw Terminals
The module has four screw terminals arranged in two pairs — one pair for input and one pair for output. Each terminal accepts bare wire ends (strip approximately 5–7mm of insulation). Tighten with a small flathead screwdriver.
| Terminal | Label | Description |
|---|---|---|
| 1 | IN+ | Positive input — connect to the positive terminal of your DC power source (4V – 40V) |
| 2 | IN− | Negative input (ground) — connect to the negative terminal of your DC power source |
| 3 | OUT+ | Positive output — connect to the positive input of your load/device |
| 4 | OUT− | Negative output (ground) — connect to the negative/ground of your load/device |
Note: Solder pads are provided alongside each screw terminal for permanent solder connections. You can use either the screw terminals or the solder pads — or both if you need to split the output to multiple devices.
Potentiometer
The potentiometer is the small blue component with a cross-head adjustment screw. It controls the output voltage:
- Clockwise: Increases the output voltage
- Counterclockwise: Decreases the output voltage
- The potentiometer is multi-turn — it may take up to 10 or more full rotations to sweep from one end of the range to the other. This is by design and gives you fine control.
Display Button
The pushbutton next to the LED display controls what the voltmeter shows:
- Press once: Toggles between displaying the input voltage and the output voltage
- IN LED lit: The display is showing the input voltage
- OUT LED lit: The display is showing the output voltage
- Press and hold: Turns the display off (the converter continues to operate normally — only the display is turned off)
- Press again: Turns the display back on
🔌 Compatible With
This module works with virtually any DC-powered device or project that operates within its voltage and current range:
- Arduino (Uno, Mega, Nano, etc.) — set output to 5V and connect to the 5V pin
- Raspberry Pi — set output to 5.1V for stable operation
- ESP32 / ESP8266 — set output to 3.3V or 5V depending on your board
- USB-powered devices — set output to 5V to power phones, tablets, or USB accessories from a 12V or 24V source
- LED strips — 5V (WS2812B) or 12V strips (check current draw)
- DC motors and fans — at the motor's rated voltage
- Sensors and peripheral modules — 3.3V or 5V logic devices
- Any DC load requiring 1.25V to 37V at up to 2A continuous
🎯 Common Applications
- Vehicle Electronics: Step down 12V car battery or 24V truck battery to 5V for USB devices, dash cameras, or GPS units
- Microcontroller Power Supply: Power Arduino, Raspberry Pi, or ESP boards from a higher-voltage battery or adapter
- Field/Portable Projects: The built-in display eliminates the need to carry a separate multimeter for voltage monitoring
- LED Lighting: Drive LED strips at a precise voltage with visual voltage confirmation
- Solar Projects: Regulate variable solar panel output to a stable voltage for powering devices
- Battery-Powered Projects: Get a stable, lower voltage from a battery pack with real-time voltage monitoring
- Bench Power Supply: Use as the core of a simple adjustable bench supply — the display shows your output voltage without needing a separate meter
- Educational/Training: The visible voltage display makes this module excellent for teaching DC-DC conversion concepts
🚀 Getting Started
Setting up this module is straightforward — no programming, no software, no soldering (if using the screw terminals). Just wire, adjust, and go.
What You'll Need
- A DC power source (battery, wall adapter, etc.) between 4V and 40V
- A small flathead screwdriver (for the screw terminals and potentiometer)
- Hook-up wire or jumper wires with stripped ends
- A multimeter (recommended for initial setup verification, though the built-in display can be used for routine monitoring)
Step-by-Step Setup
- Inspect the module. Identify the IN+, IN−, OUT+, and OUT− screw terminals, the potentiometer (blue component with adjustment screw), the LED display, and the pushbutton.
- Wire the input. Strip approximately 5–7mm of insulation from your power source wires. Insert the positive wire into the IN+ terminal and the negative wire into the IN− terminal. Tighten each screw firmly with a flathead screwdriver. Double-check polarity before powering on.
- Power on (no load yet). Turn on your power source. The LED display should illuminate, showing a voltage reading. Do not connect anything to the output terminals yet.
- Select output voltage display. Press the pushbutton until the OUT LED is lit. The display now shows the current output voltage.
- Adjust the output voltage. Using your screwdriver, slowly turn the potentiometer clockwise to increase or counterclockwise to decrease the output voltage. Watch the display change in real time. Dial it in to your target voltage.
- Verify with a multimeter (recommended). For your first setup, confirm the display reading by measuring the output voltage with an external multimeter across the OUT+ and OUT− terminals. The display is accurate to ±0.1V, which is sufficient for most applications, but a multimeter will give you a more precise reading.
- Turn off the input power. Before connecting your load, turn off the input power source.
- Wire the output. Connect your load's positive wire to OUT+ and negative wire to OUT−. Tighten the screw terminals.
- Power on and verify. Turn the input power back on. Check the output voltage on the display (or with your multimeter) to confirm it's still at your set level under load. A small drop (within the ±0.1V display accuracy) is normal.
💡 Tip: When decreasing the output voltage, you may need to turn the potentiometer counterclockwise for several full revolutions (up to 10 turns) before the voltage begins to drop. This is normal behavior for a multi-turn potentiometer — keep turning.
🔧 Configuration
Potentiometer Adjustment
The potentiometer is a multi-turn variable resistor that controls the feedback voltage to the LM2596 IC, which in turn sets the output voltage. Here's what you need to know:
- Direction: Clockwise increases the output voltage. Counterclockwise decreases it.
- Multi-turn: The potentiometer requires many full rotations to sweep from minimum to maximum output, and may require several turns before a change in the output voltage is noticed. This gives you precise control over the output voltage.
- Tool: Use a small flathead or Phillips-head screwdriver. Avoid using excessive force.
- Monitor while adjusting: Watch the LED display (set to OUT mode) as you turn the potentiometer so you can see the voltage change in real time.
Display Controls
The LED voltmeter display and its pushbutton give you three operating states:
| Action | Result | Indicator |
|---|---|---|
| Press button (toggle) | Switch between input and output voltage display | IN LED or OUT LED lights up |
| Press and hold button | Turn display off (converter continues operating) | Display goes dark |
| Press button (when display is off) | Turn display back on | Display illuminates |
Turning the display off does not affect the converter's operation — it continues to regulate the output voltage normally. Turning off the display can be useful to reduce light in dark environments or to save a small amount of power in battery-operated applications.
Input/Output Voltage Relationship
The output voltage must always be lower than the input voltage. The LM2596 requires a minimum dropout voltage of approximately 1.5V between input and output to regulate properly. For example:
| Input Voltage | Maximum Reliable Output |
|---|---|
| 5V | ~3.3V |
| 12V | ~10.5V |
| 24V | ~22.5V |
| 40V (max input) | ~37V |
Understanding Power Budget
The input power supply must be capable of providing the total power your load requires. If it can't, the converter will reduce ("fold back") the output voltage. Here's how to calculate:
Required Input Power = Output Voltage × Output Current ÷ Efficiency
For example, if your load draws 2A at 5V (10W) and the converter is running at approximately 85% efficiency:
Required Input Power = 10W ÷ 0.85 = ~11.8W
If your 12V input supply can only deliver 1A (12W), you're right at the limit. If your load draws any more, the output voltage will drop.
💡 Example: If your load draws 3A at 5V (15W), and the input supply is only capable of providing 12V at 1A (12W), the maximum output voltage the converter will deliver is approximately 4V (12W ÷ 3A = 4V). The converter protects itself by folding back the voltage — it won't damage itself, but your load won't get the voltage it needs.
🔋 Thermal Management
The LM2596 is rated for up to 3A maximum, but thermal considerations are important:
- Up to 2A continuous: The module can operate with natural air cooling — no heatsink required in most conditions.
- 2A to 3A: A heatsink is recommended on the LM2596 IC. Without one, the IC may overheat during sustained operation, especially with a large voltage differential.
- Large voltage differential at high current: The combination of a big voltage drop (e.g., 24V → 3.3V) and high current (2A+) generates the most heat. Add a heatsink and ensure airflow.
Tips for Managing Heat
- Add a small adhesive aluminum heatsink to the LM2596 IC (the large 5-pin chip on the board) for any sustained load above 2A.
- Ensure adequate airflow around the module — don't seal it in a tight enclosure without ventilation.
- If your application consistently needs 3A at a large voltage drop, consider using a module with a higher-rated IC or adding active cooling (a small fan).
- As a rule of thumb, keep continuous current at or below 2A for long-term reliability without a heatsink.
🛠️ Wiring Examples
Example 1: Powering an Arduino Uno from a 12V Car Battery
| Connection | From | To |
|---|---|---|
| Power In (+) | 12V battery positive | Module IN+ screw terminal |
| Power In (−) | 12V battery negative | Module IN− screw terminal |
| Power Out (+) | Module OUT+ screw terminal | Arduino 5V pin |
| Power Out (−) | Module OUT− screw terminal | Arduino GND pin |
Set the output to exactly 5.0V using the potentiometer while watching the LED display (OUT mode). Press the button to confirm the input voltage reads approximately 12V (IN mode) to verify your battery is healthy.
Example 2: Powering a Raspberry Pi from a 24V Supply
| Connection | From | To |
|---|---|---|
| Power In (+) | 24V supply positive | Module IN+ screw terminal |
| Power In (−) | 24V supply negative | Module IN− screw terminal |
| Power Out (+) | Module OUT+ screw terminal | Raspberry Pi 5V (GPIO Pin 2 or 4) |
| Power Out (−) | Module OUT− screw terminal | Raspberry Pi GND (GPIO Pin 6) |
Set the output to 5.1V (the Raspberry Pi prefers slightly above 5V for stable operation). At 24V input and 5.1V output, the voltage differential is large — monitor the module temperature and add a heatsink if needed.
Example 3: USB Device Charging from a Vehicle Battery
| Connection | From | To |
|---|---|---|
| Power In (+) | Vehicle 12V/24V positive | Module IN+ screw terminal |
| Power In (−) | Vehicle chassis ground | Module IN− screw terminal |
| Power Out (+) | Module OUT+ screw terminal | USB connector VBUS (Pin 1, red wire) |
| Power Out (−) | Module OUT− screw terminal | USB connector GND (Pin 4, black wire) |
Set the output to exactly 5.0V. The built-in display is especially handy here — you can monitor the vehicle battery voltage (IN mode) and the USB output voltage (OUT mode) without any additional equipment.
⚠️ Important Notes & Safety
- Always set the output voltage before connecting your load. The module may power up with the potentiometer set to an unknown voltage. Connecting a 3.3V device to an output set at 20V will destroy it instantly.
- Observe correct polarity. There is no reverse-polarity protection on this module. Connecting the input backwards can permanently damage the LM2596 IC and other components.
- Do not exceed 40V input. The LM2596 is rated for 40V maximum. Exceeding this will damage the IC.
- Output must be lower than input. The module cannot boost voltage — it can only step it down. If you need to increase voltage, you need a boost (step-up) converter instead.
- This module provides voltage regulation only. It does not include current limiting or constant-current (CC) mode. If your load tries to draw more than the module can supply, the output voltage will drop and the IC may overheat.
- The built-in display is accurate to ±0.1V. For applications where precise voltage is critical (e.g., battery charging), verify with an external multimeter.
- Display power consumption. The LED display draws a small amount of current from the module. In ultra-low-power battery applications, you can press and hold the button to turn off the display and save power.
- Not suitable for sensitive analog circuits without additional filtering. As a switching converter, the LM2596 produces some output ripple (≤30 mV typical). For noise-sensitive analog applications, consider adding additional LC filtering on the output.
- Secure the potentiometer setting. Once you've dialed in your desired voltage, the potentiometer will hold its position, but vibration can cause it to drift over time. In permanent installations, consider applying a small drop of nail polish or thread-lock compound to the potentiometer screw.
- Screw terminal wire gauge. The screw terminals accept wire gauges from approximately 16 AWG to 26 AWG. Ensure your wire gauge is appropriate for the current your load will draw.
🛠️ Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No display, no output | No input power, reversed polarity, or module damaged | Verify input voltage and polarity with a multimeter. Check that your power source is on and delivering voltage. If polarity was reversed, the module may be damaged. |
| Display works but no output voltage | Potentiometer turned fully counterclockwise (minimum) | Turn the potentiometer clockwise several turns. The output may be set to the minimum (1.25V) or near zero. |
| Output voltage is the same as input | Potentiometer set to maximum, or module is damaged | Turn the potentiometer counterclockwise (many turns). If the output doesn't change, the IC may be damaged. |
| Output voltage drops significantly under load | Input supply can't provide enough power, or load exceeds module's current rating | Calculate your load's power requirement (V × A). Ensure your input supply can provide at least that much power. If the load draws more than 2A continuous, add a heatsink or use a higher-rated module. |
| Output voltage is unstable or fluctuating | Input voltage too close to output, or loose connections | Ensure at least 1.5V difference between input and output. Check that all screw terminals are tight and wires are making good contact. |
| Module gets very hot | Large voltage differential at high current | Add a heatsink to the LM2596 IC. Reduce current draw or increase airflow. Keep continuous current below 2A without a heatsink. |
| Display shows incorrect voltage | Normal — display accuracy is ±0.1V | The display is approximate. For precise readings, use an external multimeter. A ±0.1V difference is within spec. |
| Potentiometer doesn't seem to change voltage | Multi-turn potentiometer needs many rotations | Keep turning — the potentiometer may take up to 10 or more full rotations to sweep the range. This is normal. |
| Display is on but dim or flickering | Input voltage is very low (near 4V minimum) | Increase the input voltage. The display may not function reliably at the very bottom of the input range. |
| Screw terminal connection is loose | Wire not inserted far enough, or screw not tight | Strip 5–7mm of insulation, insert the bare wire fully into the terminal, and tighten the screw firmly. Give the wire a gentle tug to confirm it's secure. |
📦 What's in the Box
- 1× LM2596 DC-DC Step-Down Buck Converter Module with LED Voltmeter
Heatsink, multimeter, wires, screwdriver, and power source are not included.
🏪 Where to Buy
This module is available at Envistia Mall.
- 📦 Fast US Shipping
- 🔄 Hassle-Free Returns
- 📧 Responsive Customer Support
📚 Additional Resources
- Need a step-down module with Constant Current control? Check out the LM2596 CC/CV Step Down Converter Module — Better for driving LEDs and other applications that benefit from precise current control.
- Check out our other Buck Converter Modules at Envistia Mall — Models with adjustable output voltage, higher current, and built-in digital voltmeters.
- LM2596 Datasheet (Texas Instruments)
This user guide is provided by Envistia Mall for informational and educational purposes only. While we strive for accuracy, specifications are based on manufacturer data and may vary. Always verify critical parameters with your own measurements. Envistia LLC (dba Envistia Mall) and the original manufacturer are not responsible for any damages, injuries, or losses resulting from the use or misuse of this product. Always follow proper electrical safety practices when working with electronic components.
