This BNC to SMA RF Coaxial Connector Adapter Kit lets you quickly connect BNC Male and BNC Female connectors to SMA Male and SMA Female connector combinations by simply screwing two connectors together, with no soldering or crimping required. These universal BNC to SMA couplers are perfect for working with telecom, broadcast, amateur handheld HTs, SDRs, wireless LAN devices, coaxial cables, LMR, CCTV, VHF/UHF antennas, Wifi, radios, microwave applications, test equipment, and digital communication systems.

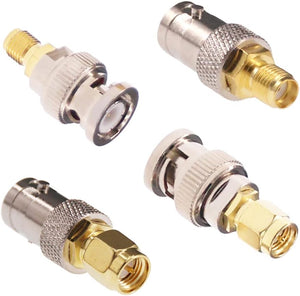

This kit contains 4 pieces, one of each of the following SMA to BNC adapters:
- BNC Male to SMA Male (Pin to Pin) Series RF Coaxial Adapter Connector
- BNC Male to SMA Female (Pin to Socket) Series RF Coaxial Adapter Connector
- BNC Female to SMA Male (Socket to Pin) Series RF Coaxial Adapter Connector
- BNC Female to SMA Female (Socket to Socket) Series RF Coaxial Adapter Connector
Technical Description
- Impedance: 50 Ohms
- Body Material: Brass or Steel (Depending on Adapter)
- Body Plating: Nickel
- Insulator: Delrin
- Inner Conductor: Copper, Gold Plated
- Operating Temperature: -40 to +85C
- RoHs (2002/95/EC): Compliant by exemption
- Dimensions:
- BNC Male to SMA Male: 31mm L x 14mm D (1.2 in x 0.54 in)
- BNC Male to SMA Female: 27mm L x 14mm D (1.07 in x 0.54 in)
- BNC Female to SMA Male: 25.5mm L x 11mm D (1.0 in x 0.43 in)
- BNC Female to SMA Female: 26.5mm L x 11mm Diameter (1.04 in x 0.43 in)
