48V (30-60V) In To 24V 10A 240W Industrial DC-DC Waterproof Step Down Converter Power Supply Module EM-48S2410Z

Power Your 24V Industrial Equipment from 36V/48V Power Systems with Confidence

The EM-48S2410Z is an industrial-grade DC-DC step-down buck converter engineered specifically for demanding commercial and industrial environments where 24V DC power is required from higher-voltage 36V or 48V batteries, power supplies, solar arrays, or vehicle electrical systems. With its robust IP67 waterproof rating, military-grade temperature range (-40°C to +50°C ambient), and 96% efficiency, this converter delivers reliable, regulated 24V power in the harshest conditions.

Why Choose This Converter for Industrial Applications?

• True Industrial Durability: Epoxy-sealed aluminum housing withstands vibration, moisture, dust, and extreme temperatures, IP67 rated for commercial and heavy-duty applications
• Wide Input Range (30-60V): Accommodates fully charged 36V and 48V battery systems without overvoltage risk
• High Power Density: 240W output in a compact 2.52" x 2.24" x 0.87" footprint
• 96% Efficiency: Minimal heat generation and power loss—critical for battery-powered applications
• Comprehensive Protection: Built-in overload, short-circuit, under-voltage, and over-temperature protection with auto-recovery
• Maintenance-Free Operation: Natural convection cooling—no fans to fail or maintain
• Reliable: Backed by 100% full-load burn-in testing and >200,000 hour MTBF

Perfect for 24V DC Industrial Equipment

This converter is the ideal power solution when you need to operate 24V industrial equipment from 36V or 48V battery banks, solar arrays, or vehicle electrical systems. The synchronous rectification technology ensures minimal power loss, while the rugged construction guarantees years of trouble-free operation in outdoor, marine, and industrial environments.

Commercial & Industrial Applications

Material Handling & Logistics:

• Forklift 24V accessory power (lights, sensors, displays, cameras)
• Automated guided vehicles (AGVs) and warehouse robotics
• Conveyor system controls and sensors
• Electric pallet jack instrumentation

Transportation & Fleet:

• Electric vehicle auxiliary systems (lighting, HVAC controls, displays)
• Golf cart accessories and instrumentation
• Marine vessel electronics and navigation equipment
• Boat and yacht 24V system power from 48V house banks
• Commercial truck auxiliary power systems

Renewable Energy & Off-Grid:

• Solar power system voltage regulation
• Battery energy storage system (BESS) interfaces
• Off-grid telecommunications equipment
• Remote monitoring station power supplies
• Wind turbine control systems

Industrial Automation & Control:

• PLC and industrial controller power supplies
• Sensor and instrumentation networks
• Motor control systems and drives
• Factory automation equipment
• Process control instrumentation

Telecommunications:

• Base station equipment power
• Remote radio units and repeaters
• Fiber optic network equipment
• Emergency communication systems
• Tower-mounted amplifiers

LED & Lighting:

• Commercial LED signage (24V LED strips and modules)
• Architectural lighting systems
• Emergency and safety lighting
• Outdoor landscape lighting installations
• Industrial facility lighting controls

Security & Surveillance:

• IP camera systems and NVRs
• Access control systems
• Perimeter security equipment
• Remote monitoring stations

Technical Specifications

Input Characteristics:

• Input Voltage Range: 30-60V DC (nominal 36V/48V systems)

• Under-Voltage Shutdown: 28.5V (auto-recovery at 29.5V)
• Maximum Input Current: 8.2A @ 30V input, 10A output
• No-Load Current: <70mA
• Built-in Input Fuse: 20A

Output Characteristics:

• Output Voltage: 24V DC (±5% accuracy)
• Maximum Output Current: 10A continuous
• Maximum Output Power: 240W
• Voltage Regulation: ±3%
• Load Regulation: ±3%
• Output Ripple: 180mVp-p typical, 300mVp-p maximum (20MHz bandwidth)
• Overcurrent Protection: 15-22A with hiccup mode auto-recovery

Performance:

• Efficiency: 96% typical @ 48V input, full load
• Switching Frequency: 250kHz ±10kHz
• Output Rise Time: 100-130ms
• Boot Delay: 100-150ms
• MTBF: >200,000 hours

Protection Features:

• Overload Protection: Auto-recovery hiccup mode
• Short-Circuit Protection: Continuous (4+ hours) without damage
• Under-Voltage Protection: Automatic shutdown and recovery
• Over-Temperature Protection: 85°C case temperature shutdown
• Non-Isolated Design: Input and output share common ground

Environmental & Mechanical:

• Operating Temperature: -40°C to +50°C ambient (-40°F to 122°F)
• Case Temperature Rating: -40°C to +83°C
• Storage Temperature: -55°C to +100°C
• Humidity: 5-95% non-condensing
• Waterproof Rating: IP67 (dust-tight, submersion-resistant)
• Altitude: Up to 4,000m (13,123 ft)
• Cooling Method: Natural convection (fanless)
• Dimensions: 64 x 57 x 22mm (2.52 x 2.24 x 0.87 inches)
• Mounting Centers: 54mm (2.13 inches)
• Weight: 120g (4.2 oz)
• Case Material: Aluminum with epoxy seal
• Certifications: RoHS, CE compliant

Wiring:

• Input Wires: Red (+) and Black (-), 16 AWG, 15cm (6") length
• Output Wires: Yellow (+) and Black (-), 16 AWG, 15cm (6") length
• Note: Use heavier gauge wire for runs >50cm to minimize voltage drop

Installation & Operating Notes

Power Supply Sizing: Ensure your input power source can deliver the full power required by your load. The converter will fold back output voltage if input power is insufficient.

Example: If your 24V load draws 4A (96W) but your 48V input supply can only provide 1A (48W), the converter will reduce output to 12V (48W ÷ 4A = 12V).

Wiring:

• Input: Red wire = +V, Black wire = -V (30-60V DC)
• Output: Yellow wire = +V, Black wire = -V (24V DC)
• For wire runs exceeding 50cm (20"), use heavier gauge wire to compensate for voltage drop
• Ensure all connections are secure and properly insulated

Thermal Management: While this converter uses natural convection cooling, ensure adequate airflow around the unit. Avoid enclosing in sealed boxes without ventilation. Monitor case temperature - it should not exceed 83°C during operation.

Long Wire Runs: For applications requiring long cable runs, place the longer wiring on the INPUT side (higher voltage, lower current) to minimize voltage drop and power loss.

Package Contents

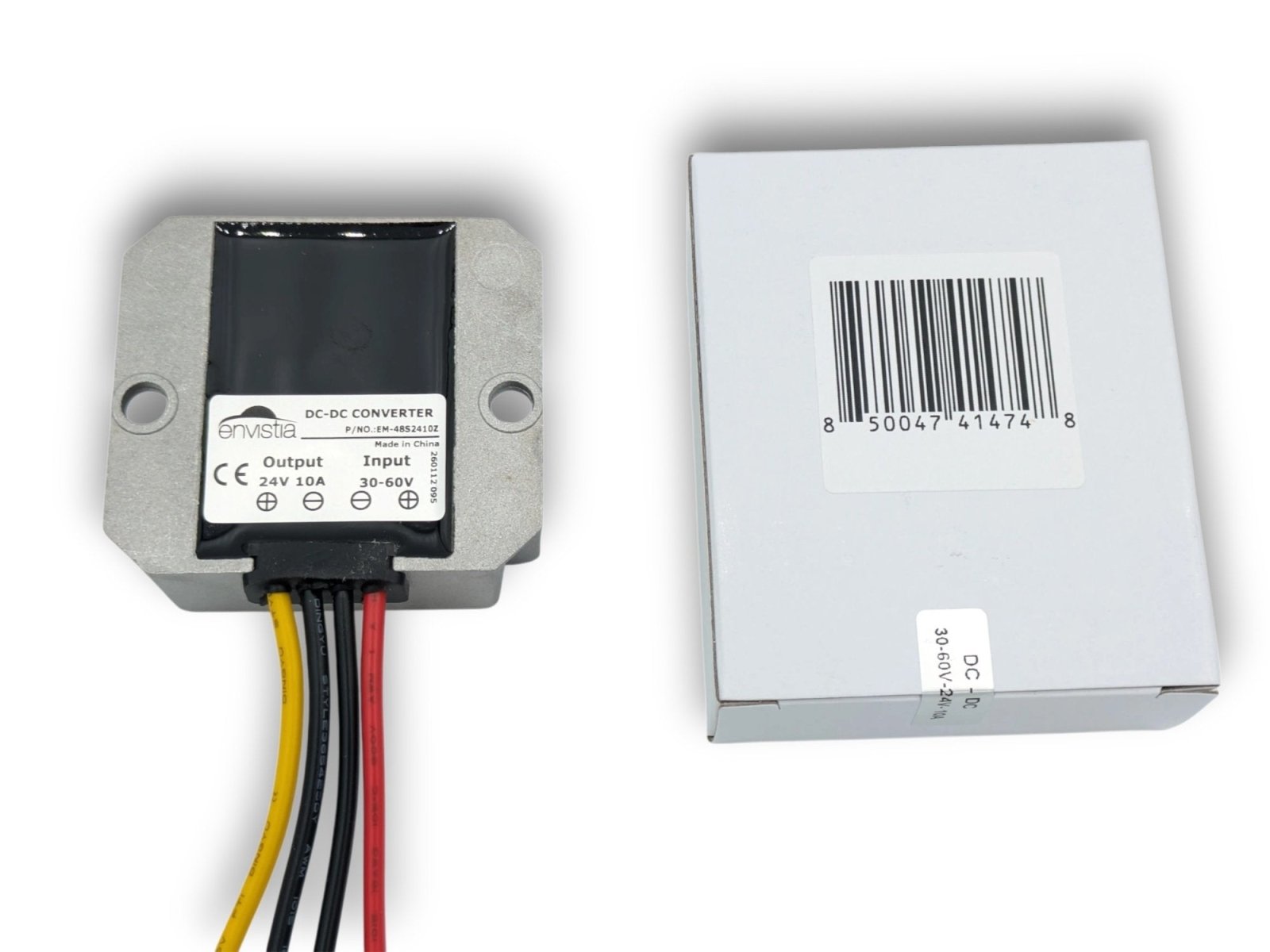

• 1x EM-48S2410Z DC-DC Converter (30-60V input → 24V 10A output)
• Pre-wired input and output leads (15cm/6")

Envistia Part Number: EM-48S2410Z
