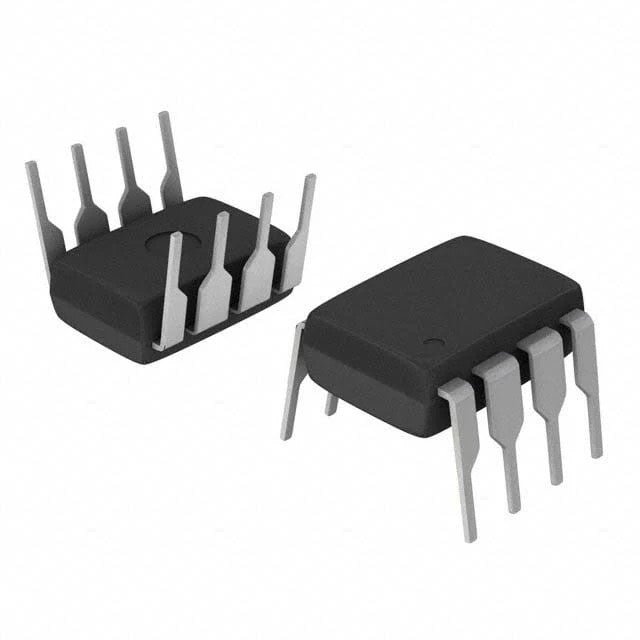

TL071CP 30V Low-Noise JFET Operational Amplifier IC (8-Pin DIP)

📋 Overview

The TL071CP is a single-channel, JFET-input operational amplifier from Texas Instruments — one of the most widely used op amps in the industry. It's rated for a 30V maximum supply and delivers a 13V/µs slew rate with low input offset voltage and low noise, making it a dependable, drop-in choice for audio circuits, signal conditioning, sensor interfacing, and general-purpose analog designs. Whether you're building your first amplifier circuit or specifying a proven part for a production board, the TL071CP delivers industry-standard performance in a familiar 8-pin DIP package that's easy to breadboard and hand-solder.

New to op amps? Think of the TL071CP as a tiny signal "helper" — it takes a small voltage signal in and outputs a cleaner, boosted, or shaped version of it, using very little power and adding almost no extra noise or distortion.

⭐ Key Features

• 30V maximum supply voltage — higher headroom than many general-purpose op amps
• 13V/µs typical slew rate for fast-changing signals
• 3MHz gain-bandwidth product
• Low input offset voltage for accurate, stable readings
• Low input noise — ideal for audio and precision signal work
• Output short-circuit protection built in
• Industry-standard, second-source-friendly pinout — easy to substitute in existing designs
• Common, easy-to-solder 8-pin DIP package for through-hole prototyping

🎯 Applications

• Audio circuits: preamps, mixers, tone controls, and other pro-audio signal paths where low noise and low distortion matter
• Sensor signal conditioning: amplifying and buffering small signals from sensors before they reach a microcontroller's ADC
• Filters and signal shaping: active low-pass, high-pass, and band-pass filter stages
• Instrumentation and test equipment: buffer stages and measurement amplifiers, including battery test equipment
• Higher-voltage analog stages: the 30V supply rating gives extra headroom for designs running on ±12V to ±15V rails, beyond what many 5V/±5V op amps can handle
• General-purpose amplification: inverting and non-inverting amplifier stages, voltage followers, and comparators in hobbyist and educational projects

📌 Pin Diagram (8-Pin DIP)

• Pins 2 & 3 (IN-, IN+): Inverting and non-inverting inputs
• Pin 6 (OUT): Amplifier output
• Pins 4 & 7 (V-, V+): Power supply connections
• Pins 1, 5, 8 (NC): Not connected

📊 Specifications

For complete electrical characteristics, absolute maximum ratings, and application circuits, see the full datasheet linked below.

🛒 You May Also Need

• 8-Pin DIP IC Sockets

📄 Documentation & Resources

• TL071CP Datasheet (PDF) — full electrical specifications, absolute maximum ratings, package drawings, and reference circuits
• TL071CP Official Part Page (TI.com) — manufacturer part details, pricing tiers, and quality/reliability data

Sold and supported by Envistia Mall. This product ships from our US warehouse, so you get it fast without overseas shipping delays. Datasheets and reference links above are provided by the manufacturer for technical reference; Envistia LLC (dba Envistia Mall) is not responsible for circuit design outcomes or misuse of this component. Always observe proper ESD precautions and stay within the rated 30V maximum supply voltage when handling and using this device. Specifications are subject to change by the manufacturer without notice — always confirm critical parameters against the current datasheet before use in your design.
