El W1209 es un controlador de termostato de bajo costo pero altamente funcional. Este módulo controla de forma inteligente la alimentación de la mayoría de los tipos de dispositivos eléctricos en función de la temperatura detectada por el sensor de temperatura remoto NTC de alta precisión incluido.

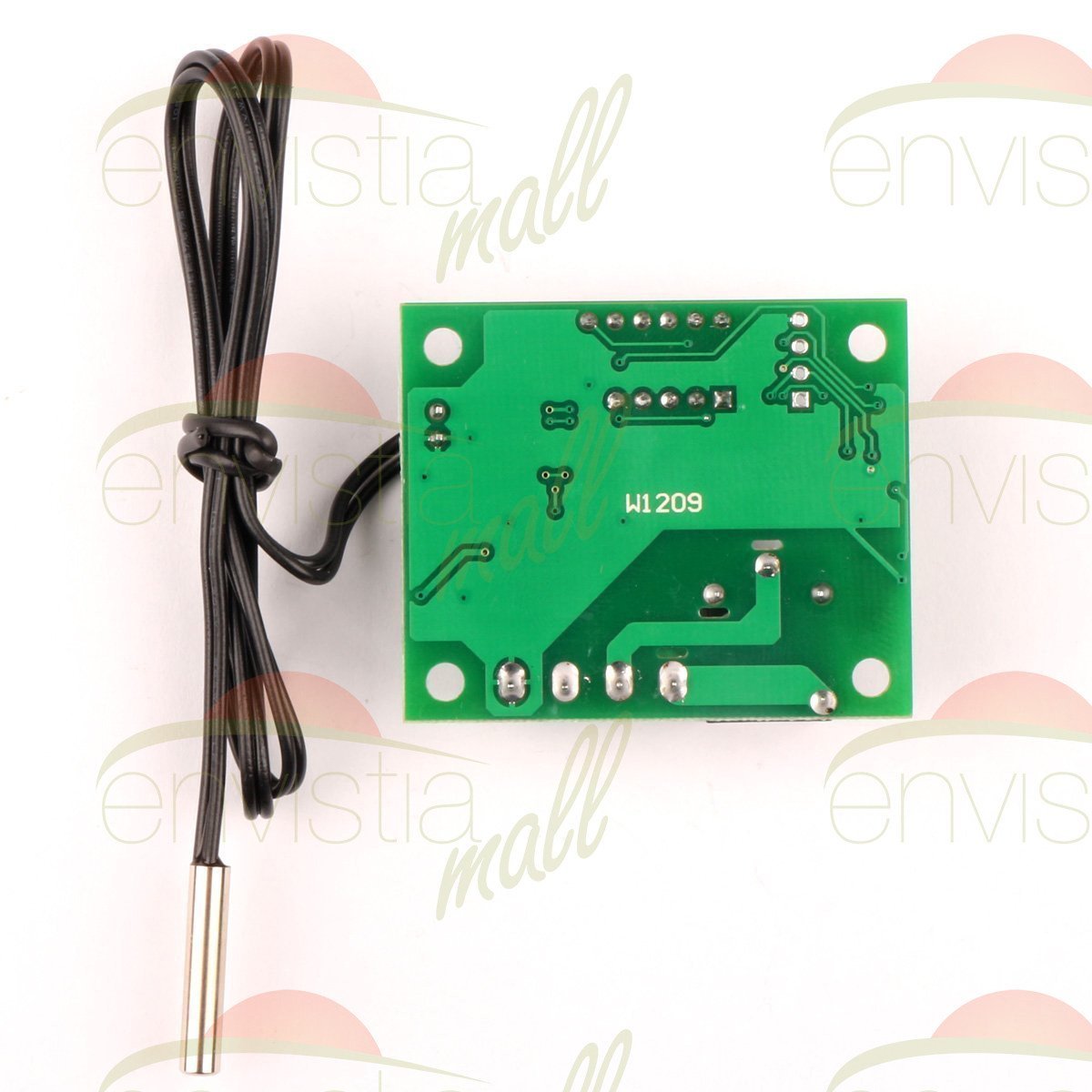

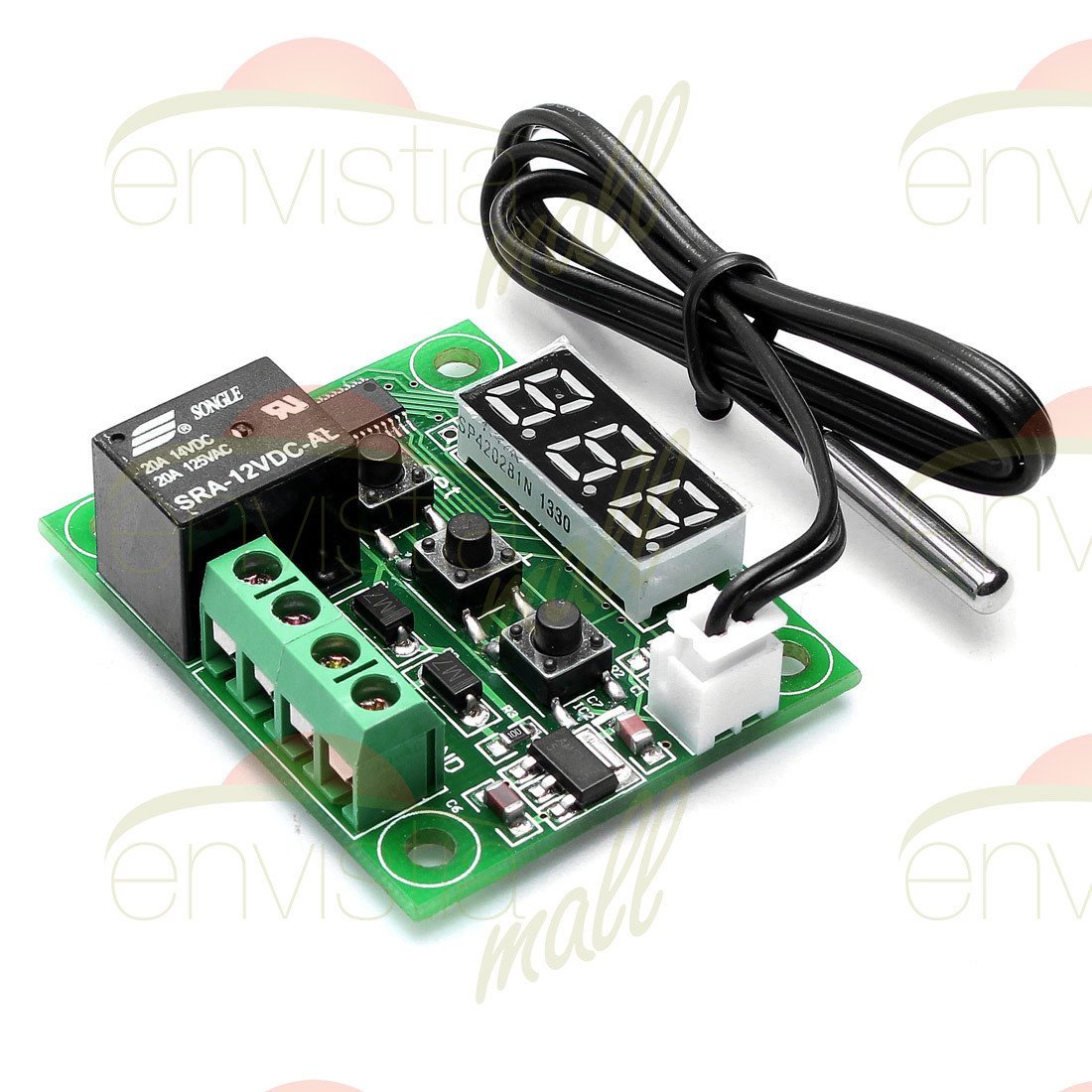

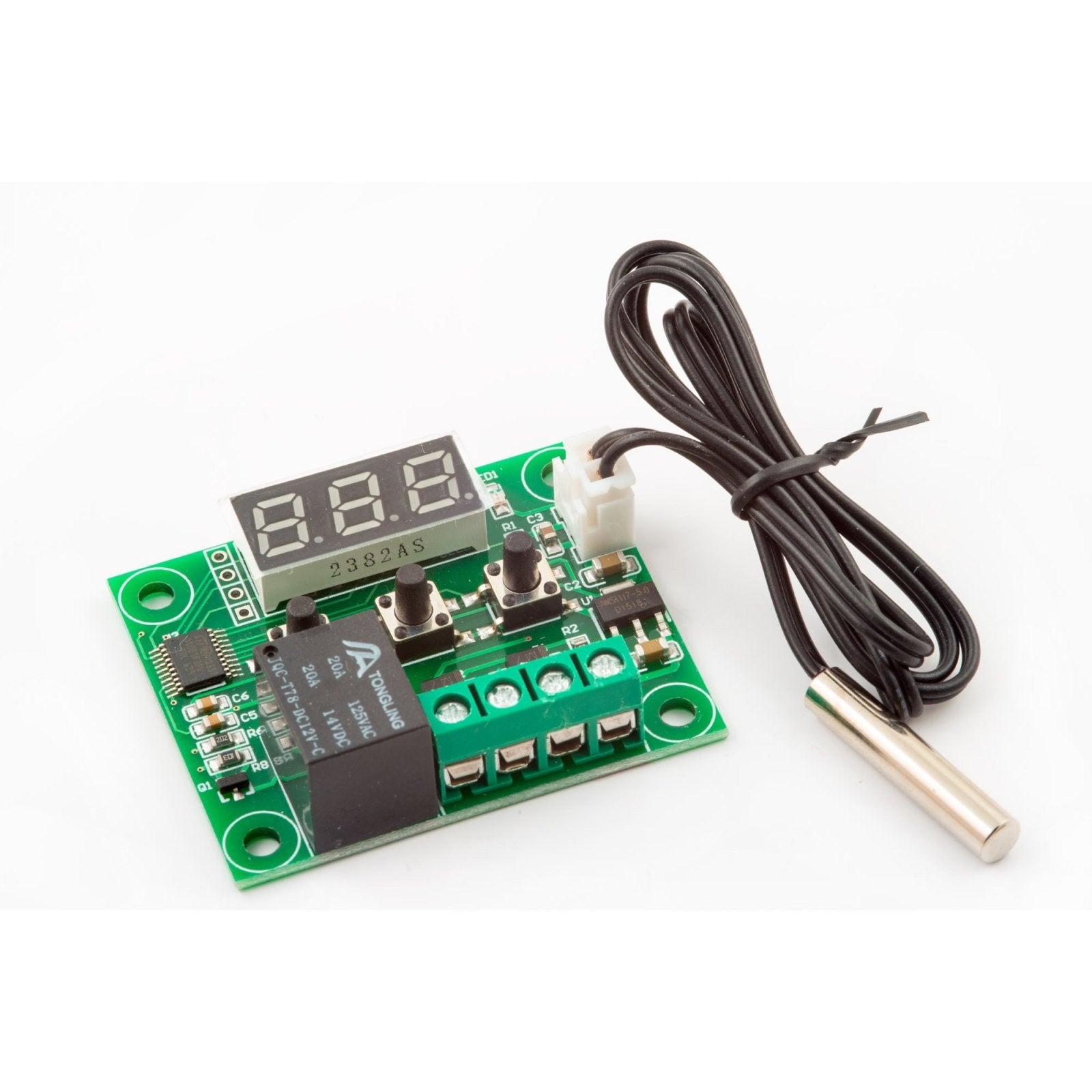

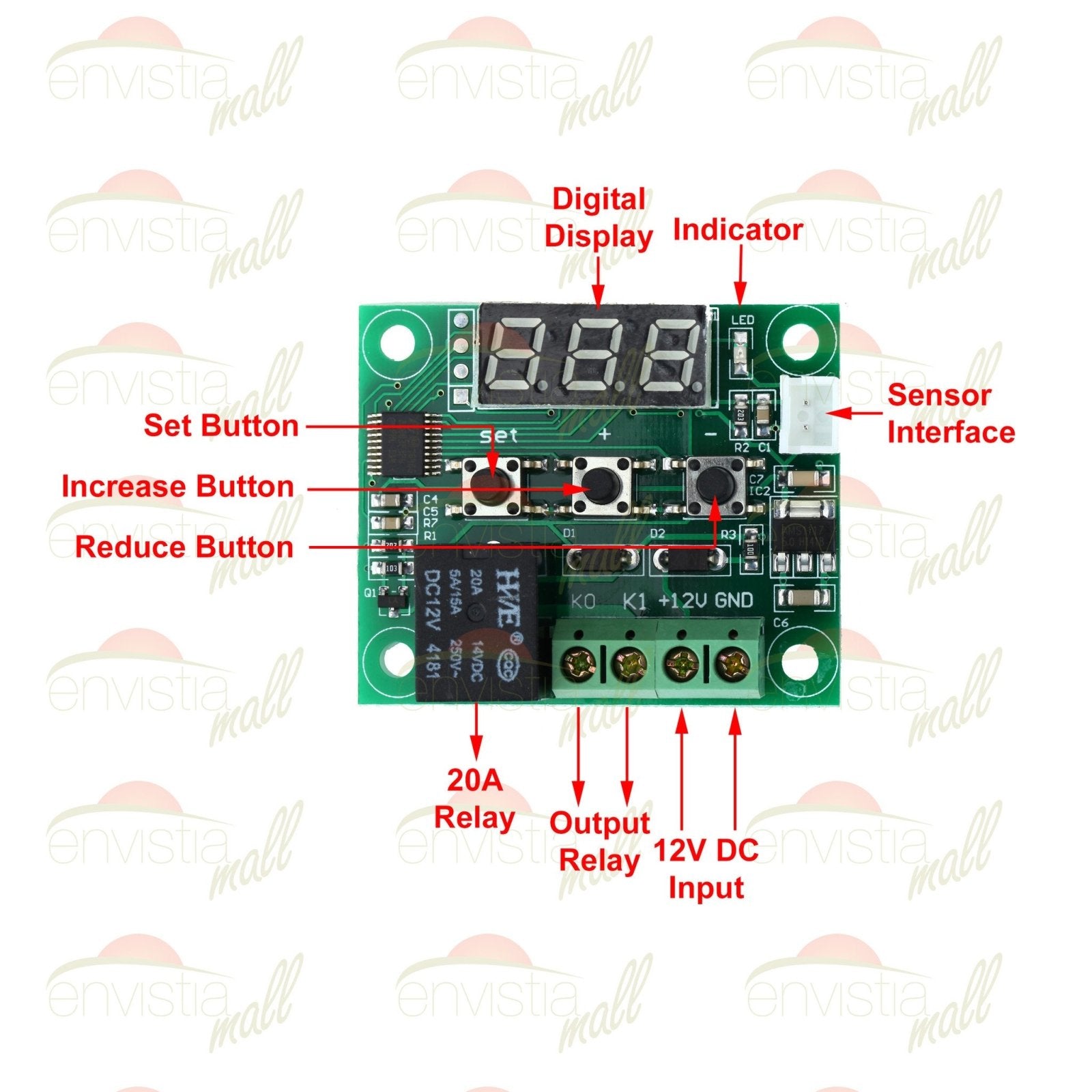

El enfriador, el calentador o el ventilador se conectan a una fuente de alimentación a través de los contactos de relé K0 y K1, y los puntos de ajuste de encendido/apagado de la temperatura se programan en el W1209 mediante los botones y la pantalla de ajuste, aumento y disminución integrados. Luego, los contactos del relé se abren y cierran, actuando como un interruptor de alimentación para el enfriador/calentador, según la temperatura medida por el sensor de temperatura NTC (incluido con el módulo) y los puntos de referencia programados en el controlador W1209.
Aunque este módulo tiene un microcontrolador incorporado, no se requieren conocimientos de programación. 3 interruptores táctiles permiten configurar varios parámetros, incluidas las temperaturas de activación y desactivación. El relé integrado puede conmutar hasta un máximo de 125 V CA o 14 V CC a 20 A. La temperatura actual se muestra en grados centígrados a través de su pantalla de siete segmentos de 3 dígitos y el estado actual del relé mediante un LED incorporado.
Especificaciones:
- Rango de control de temperatura: -50 ~ 110 C
- Resolución de -9,9 a 99,9: 0,1 C
- Resolución a todas las demás temperaturas: 1 C
- Precisión de la medición: 0,1 C
- Precisión de control: 0,1 C
- Frecuencia de actualización: 0,5 segundos
-
Potencia de soporte de entrada (CC): 9 V mínimo a 12 V máximo. El consumo máximo de corriente es de 65 mA (opera el módulo, no alimenta la carga)
NOTA: El voltaje máximo de soporte de entrada no debe exceder los 12 V. En aplicaciones como automóviles o vehículos recreativos donde el voltaje de la batería puede exceder los 12 V, se debe usar un circuito regulador como un diodo zener 1N5349A y una resistencia en serie en el rango de 20 ohmios 1 W para limitar el voltaje a 12 V. Alternativamente, un convertidor de voltaje reductor de 12 V a 9 V con la entrada al convertidor conectada a la batería y la salida al W1209 proporcionará un suministro estable de 9 V CC para el W1209 - Entrada de medición: NTC (10K 0,5 %)
- Sensor resistente al agua: cable de 0,3 M
- Salida: salida de relé de 1 canal, capacidad: 20A
Consumo de energía:
- Corriente estática: <=35mA
- Corriente: <=65mA
Requisitos ambientales:
- Temperatura: -10 ~ 60 C
- Humedad: 20-85 %
Dimensiones:
- 48 mm x 40 mm x 14 mm (largo x ancho x alto)
Cuadro de configuración:
Presione prolongadamente el botón "SET" para activar el menú.
Código: Descripción / Rango / Valor predeterminado
P0: Calor o Frío / C/H / C
P1: Ajuste de histéresis / 0.1C - 15C / 2C
P2: Límite superior / 110C / 110C
P3: Límite inferior / -50C / -50C
P4: Calibración de temperatura / -7.0C ~ 7.0C / 0C
P5: Tiempo de inicio diferido / 0-10 min / 0 min
P6/P7: Alarma de temperatura alta / 0C - 110C / APAGADO
P8: Restablecimiento de fábrica (no incluido en todas las versiones de firmware. También se puede restablecer manteniendo presionados los botones + y - durante 5 segundos).
El paquete incluye:
W1209 -50°C -110°C Termostato digital de 12 V Módulo de sensor de interruptor de control de temperatura
Sensor de temperatura NTC 10K con cable de 0,3 m
Documentación en línea y guía de uso
¿Necesita una sonda más larga? Vea nuestra Sonda de termistor NTC de 1 metro de longitud que se puede utilizado con el W1209.
Quieres un W1209 con una carcasa de plástico acrílico: Haz clic en este enlace a nuestro W1209 con una carcasa.
Para obtener instrucciones detalladas de instalación, funcionamiento y programación, consulte Instrucciones de instalación y funcionamiento del módulo controlador de temperatura del termostato digital W1209 en el sitio web de soporte de Envistia Mall.
