SIG-5561 ezTCP Ethernet Temperature Gateway To Sollae Cloud

$261.50

Sale Sold out

Configuration SIG-5561 With PT100 Temperature Sensor Probe SIG-5561 Gateway Only (No Probe)

Quantity

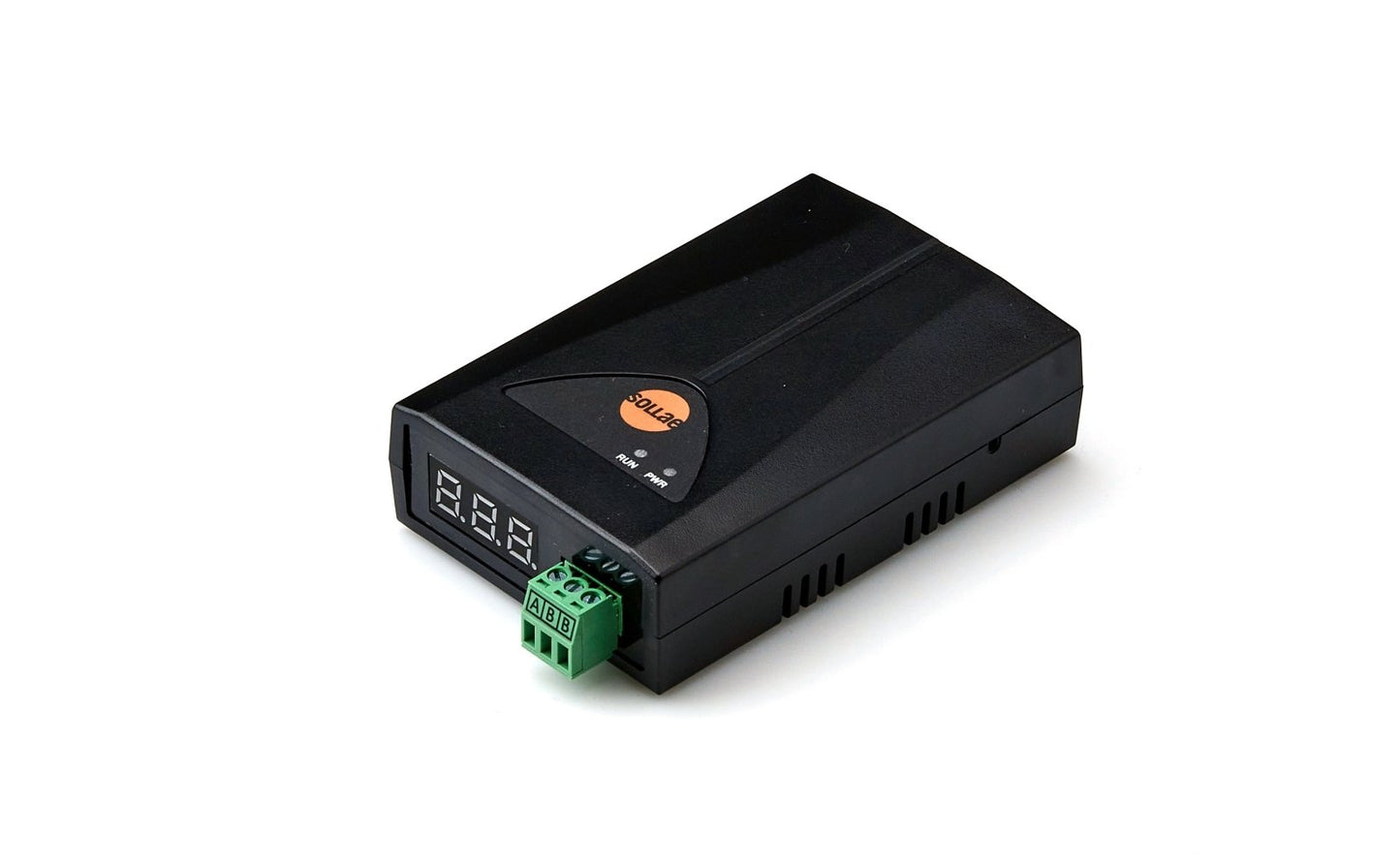

The ezTCP SIG-5561 by Sollae Systems is a temperature gateway (ethernet temperature sensor) that reads the temperature value from a PT100 resistance temperature detector and sends it to Sollae Cloud. Users can log in to the Sollae Cloud to see the visualized temperature value via a Web interface. The device is connected securely to Sollae IoT Cloud via MQTT protocol.

What is the Sollae IoT Cloud (PDF)?

Depending on the users' configuration, users can set actions that trigger relays on other devices (SIG-5451, SIG-5601) in response to temperatures that fall below/rise above predefined values. It can also alert users via the web UI.

Since the SIG-5561 Temperature Gateway is connected to the Sollae IoT Cloud, it benefits from various Sollae IoT Cloud features such as real-time monitoring, secure, user-defined event, alarming, and different web interfaces. It is very easy to use. Users just need to connect to the Internet, sign into the cloud, register the device to the user's account, and interact with the device via the web. Visit the Sollae Cloud for more information.

Features:

PT100 connection port: support 3-wire PT100 RTD sensors
Display: a red 3-digit 7-segment LED
Protocol: MQTT over TLS
Authentication: TLS Client certificate
Support multiple accesses via Cloud
Free to use Sollae Cloud
Customizable web User Interface for monitoring with Sollae Studio
Measurement Error: within ±0.3℃ (±0.54℉)
Maximum Measurement Range: -200℃ ~ 850℃ (-328℉ ~ 1562℉)
Device operation temperature range (Industrial: -40℃ ~ +85℃)
Email Notification
Device logging data stored up to 30 days

Specifications:

Analog Input
- Input Type: 3-wire PT100 sensor (α=0.00385 Ω/(Ω·°C))
Resolution: 16 bits
- Number of Ports: 1 port
Network Physical Interface

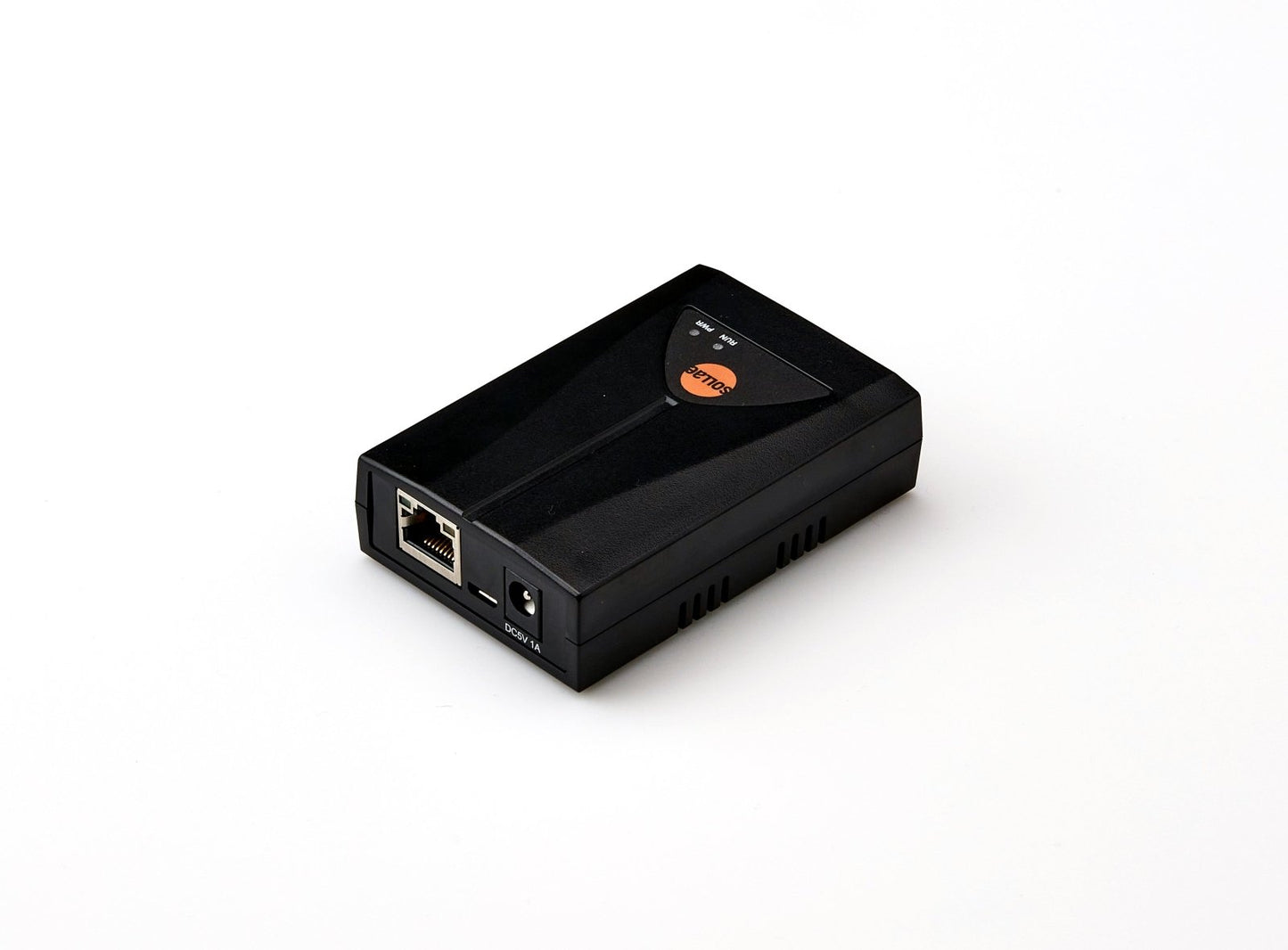

- Network Interface: 10Base-T/100Base-TX Ethernet(RJ45)
- Ethernet Speed: Auto Sense
- 1:1 or Cross-over Cable Auto Sense
Software Functions
Protocols:
- IP, TCP, ICMP, DHCP, mDNS, MQTT, SSL/TLS 1.2
  Client certificate-based mutual authentication over TLS 1.2
Indicators
- LEDs: MTX, MRX, 3 digit 7-segment LED
Management
- spFinder: Configuration and Monitoring Tool
- Access Security: Password
Dimensions
- Size: 94mm x 57mm x 23mm (3.7 x 2.2 x 0.9 inches)
- Weight: About 63g (2.2 ounces)
Operating Environment
- Power Input: DC 5±0.2V
- Protection: Reverse Voltage Protection / Surge Protection
- Current Consumption: Typically 160mA
- Operating Temperature: -40℃ ~ +85℃
- Storage Temperature: -40℃ ~ +85℃
Certifications
- KC Registration(KN 32, KN 35)
- CE EMC 2014/30/EU, RoHS 2011/65/EU
- FCC FCC Part 15 Subpart B, Class A

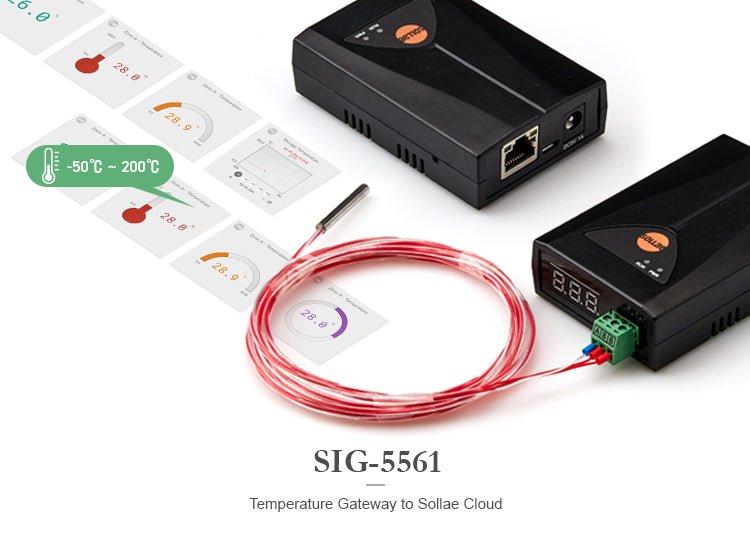

The optional PT100 Temperature Sensor Probe is a 3-wire RTD sensor with a temperature measurement range of -50C to +200C.

NOTE: The SIG-5561 device supports PT100 sensors that have a measurement range of -200℃ ~ 850℃ (-328℉ ~ 1562℉). But the measurement range depends on the PT100 sensor. We provide a PT100 sensor that has the measurement range of -50℃ ~ +200℃ as an option. If users need a larger range, use another PT100 sensor.

Package includes:

1X SIG-5561 ezTCP Ethernet Temperature Gateway To Sollae Cloud
